CPU
| Chipset |
AMD X870E |
| CPU Socket |
AM5 |

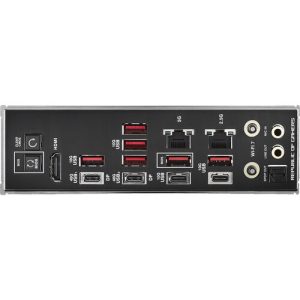

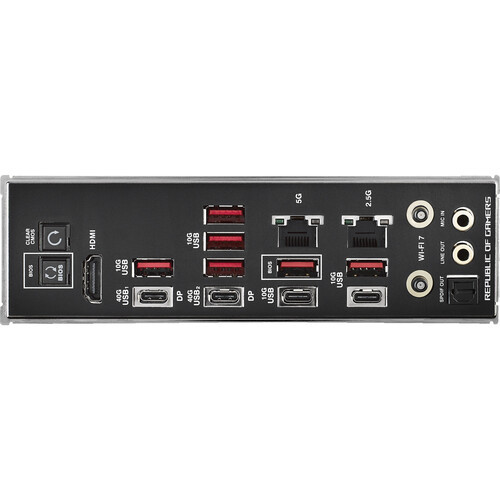

Back Panel I/O
| USB |
2x USB-C (USB4) |
| Thunderbolt |
No |
| Display |
1x HDMI |
| Audio |
2x 1/8" / 3.5 mm |
| Ethernet / Controller |
1x Intel 2.5Gigabit |
| Wi-Fi Antenna |
2x Connector |
| Buttons |
BIOS Flashback, Clear CMOS |
Memory
| Memory Slots |
4x 288-Pin |
| Memory Support |
DDR5 4000, 4100, 4300 MT/s |
| Maximum Capacity |
256 GB |
| Channel Architecture |
Dual Channel |
| ECC Support |
Non-ECC, ECC Unbuffered |
Storage Expansion
| SATA |
4x SATA III |
| Storage Slots |
3x M.2 (M Key) 2242, 2260, 2280 (PCIe 5.0 x4) |
| Optane Memory Support |
No |
| RAID Support |
RAID 0, 1, 5, 10 |
Internal I/O
| Expansion Slots |
2x PCIe 5.0 x16 |
| USB |
1x USB 3.2 Gen 2×2 Header (Supports 1 USB-C Port) |
| Air Cooling |
2x 4-Pin CPU |
| Liquid Cooling |
2x 4-Pin Pump |
| Power Connectors |
1x 24-Pin Mainboard |
| LED Header |
3x RGB |
| Audio |
1x Speaker |
| Diagnostics |
ReTry, Start |
BIOS
| ROM |
256 Mb |
Front Panel I/O
| Front Panel I/O |
AAFP, USB 3.0 / 3.1/3.2 Gen 1, USB 3.2 Gen 2×2 |
Audio
| Audio Codec |
SupremeFX ALC4082 (7.1-Channel) |
| DAC |
ES9219 |
Wireless
| Wi-Fi |
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2) |
| Bluetooth |
5.4 |
Software
| OS Compatibility |
Windows 11 |
Physical
| Form Factor |
ATX |
| Dimensions |
12.0 x 9.6" / 30.5 x 24.4 cm |
Packaging Info
| Package Weight |
8.85 lb |
| Box Dimensions (LxWxH) |
14.6 x 13.1 x 4.4" |

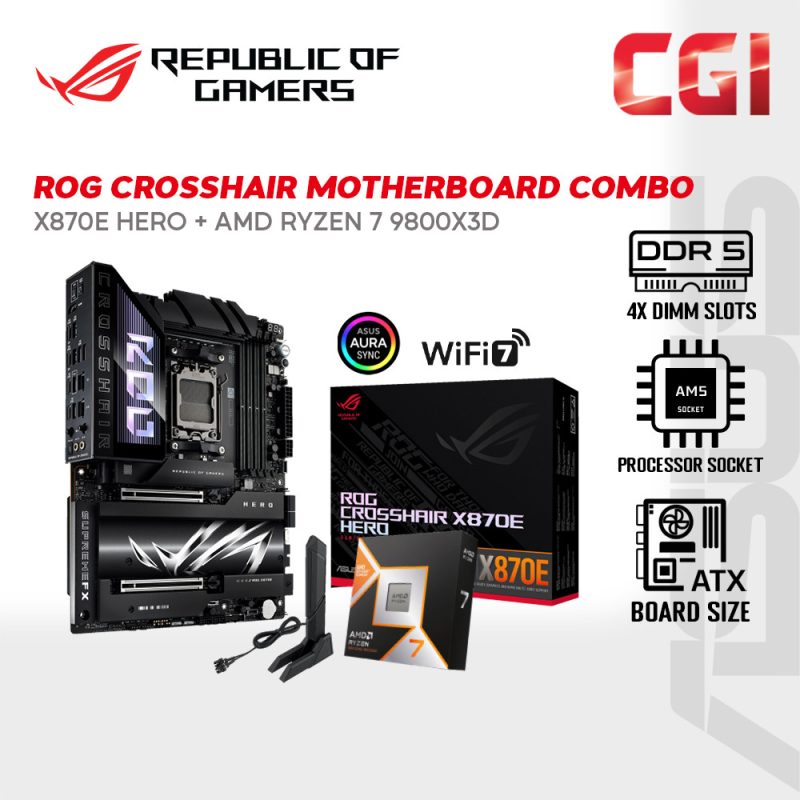

Variation : AMD RYZEN 7 9800X3D PROCESSORS AM5
General
| CPU Model |
AMD Ryzen 7 9800X3D |
| CPU Socket |
AM5 |
| Manufacturing Process |
4 nm |
| Maximum Number of PCIe Lanes |
28 (Revision 5.0) |
| Unlocked |
Yes |
Performance
| Number of Cores |
8 |
| Number of Threads |
16 |
| Base Clock Speed |
4.7 GHz |
| Maximum Boost Speed |
5.2 GHz |
| Dedicated AI Cores |
No |
| L3 Cache |
96 MB |
Memory Support
| Maximum Capacity |
192 GB |
| Memory Support |
DDR5 Up to MT/s |
| ECC Memory |
Yes |
| Channel Architecture |
Dual Channel |
Power
| Thermal Design Power (TDP, Max) |
120 W |
| Included Thermal Solution |
No |
| Maximum Temperature |
203°F / 95°C |
| Thermal Monitoring Technologies |
No |
Technology
| AES Support |
Yes |
| Extension |
AVX, AVX 2.0, AVX-512, FMA3, SSE 4.1/4.2 |
| Instruction Set |
64-Bit |
| Virtualization |
Yes: AMD-V |
| Performance Technologies |
AMD EXPO, Precision Boost 2 |
Integrated Graphics
| Integrated Graphics |
AMD Radeon |
| Output Support |
DisplayPort |
Packaging Info
| Package Weight |
0.21 lb |
| Box Dimensions (LxWxH) |
5 x 4.8 x 1.2" |
