Name: Asus Prime H610M-F-WIFI-D4 DDR4 PCie 4.0 WiFi 6 LGA 1700 Micro-ATX Motherboard - CGi-Store
SKU: ASUS-PRIME H610M-F WIFI D4
Availability: InStock

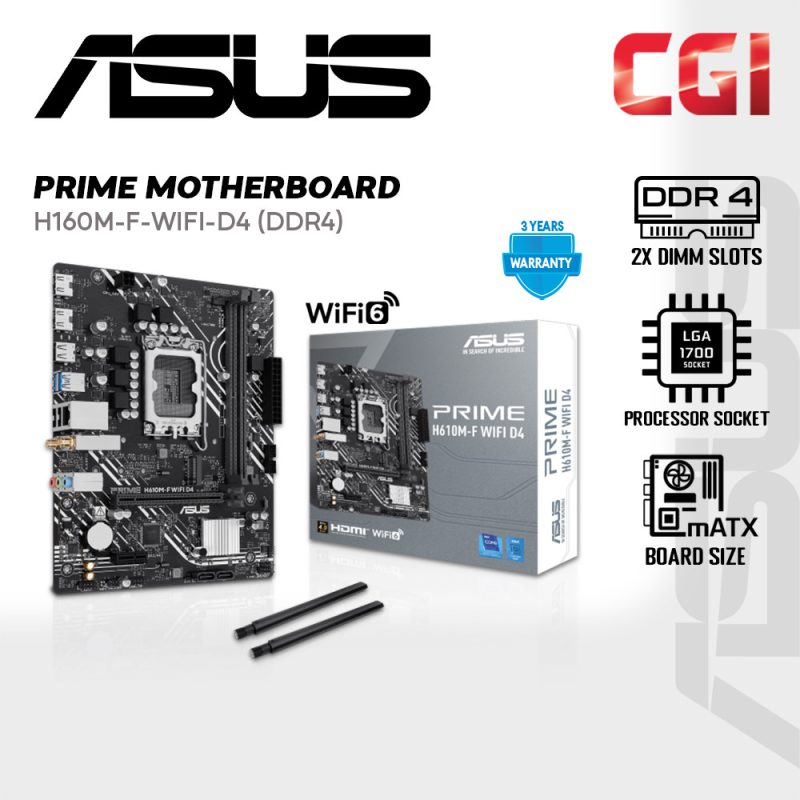

Asus Prime H610M-F-WIFI-D4 DDR4 PCie 4.0 WiFi 6 LGA 1700 Micro-ATX Motherboard

RM429

RM1238

ASUS PRIME H610M-F WIFI D4, an Intel^® H610 LGA 1700 micro-ATX motherboard with PCIe 4.0, DDR4, WiFi 6, Realtek 1Gb Ethernet, 2 x HDMI™, M.2 slot, SATA 6 Gbps, USB 5Gbps ports

Intel^® LGA 1700 Socket: Ready for 14^th, 13^th and 12^th Gen Intel^® processors
Ultrafast Connectivity: 32Gbps M.2 slot, Realtek 1Gb Ethernet and USB 5Gbps support
Comprehensive Cooling: PCH heatsink
5X Protection III: Multiple hardware safeguards for all-round protection

Combo Bundle

Clear

Add to CompareAdded

SKU: ASUS-PRIME H610M-F WIFI D4 Category: Motherboard Brand: Asus

Payment Methods


Model	PRIME H610M-F WIFI D4
CPU	Intel^® Socket LGA1700 for Intel^® Core™ 14^th& 13^th GenProcessors, Intel^® Core™ 12^th Gen, Pentium^® Gold and Celeron^® Processors*
	Supports up to Intel® 65W CPU
	Supports Intel^® Turbo Boost Technology 2.0
	and Intel^® Turbo Boost Max Technology 3.0**
	* Refer to https://www.asus.com/support/download-center/ for CPU support list.
	** Intel^® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset	Intel^® H610 Chipset
Memory	2 x DIMM slots, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
	Dual channel memory architectureSupports Intel^® Extreme Memory Profile (XMP) memory module
	* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.
Graphics	2 x HDMI^TM port**
	* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
	** Supports 4K@30Hz as specified in HDMI 1.4.
Expansion Slots	Intel^® Core™ Processors (14^th & 13^th & 12^th Gen)
	1 x PCIe 4.0 x16 slot
	Intel^® H610 Chipset
	1 x PCIe 3.0 x1 slot
	– To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage	Supports 1 x M.2 slot and 2 x SATA 6Gb/s ports
	Intel^® H610 Chipset
	M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
	2 x SATA 6Gb/s ports
Ethernet	1 x Realtek 1Gb Ethernet
Wireless & Bluetooth	Wi-Fi 6
	Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
	Supports 2.4/5GHz frequency band
	Bluetooth^® v5.3*
	*The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB	Rear USB (Total 5 ports)
	2 x USB 5Gbps ports (2 x Type-A)
	3 x USB 2.0 ports (3 x Type-A)
	Front USB (Total 4 ports)
	1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
	1 x USB 2.0 header supports 2 additional USB 2.0 ports
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC*
	– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
	– Supports up to 24-Bit/192 kHz playback"
Audio Features	– Audio Shielding
	– Premium audio capacitors
	– Dedicated audio PCB layers
	* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports	2 x USB 5Gbps ports (2 x Type-A)
	3 x USB 2.0 ports (3 x Type-A)
	2 x HDMI^TM port
	1 x Wi-Fi module
	1 x Realtek 1Gb Ethernet port
	3 x Audio jacks
Internal I/O Connectors	Fan and Cooling Related
	1 x 4-pin CPU Fan header
	1 x 4-pin Chassis Fan header
	Power Related
	1 x 24-pin Main Power connector
	1 x 4-pin +12V Power connector
	Storage Related
	1 x M.2 slot (Key M)
	2 x SATA 6Gb/s ports
	USB
	1 x USB 5Gbps header supports 2 additional
	USB 5Gbps ports
	1 x USB 2.0 header supports 2 additional
	USB 2.0 ports
	Miscellaneous
	1 x Clear CMOS header
	1 x Front Panel Audio header (F_AUDIO)
	1 x Speaker header
	1 x 10-1 pin Front Panel System header
Special Features	ASUS 5X PROTECTION III
	– DIGI+ VRM
	– LANGuard
	– Overvoltage protection
	– SafeSlot Core
	– Stainless-steel back I/O
	ASUS Q-Design
	– Q-DIMM
	– Q-Slot
	– Q-LED Core
	ASUS Thermal Solution
	– Aluminum heatsink design
Software Features	ASUS Exclusive Software
	Armoury Crate
	– Power Saving
	ASUS DriverHub
	ASUS CPU-Z
	Norton 360 Deluxe (60 Days Free Trial)
	WinRAR (40 Days Free Trial)
	UEFI BIOS
	ASUS EZ DIY
	– ASUS CrashFree BIOS 3
	– ASUS EZ Flash
	– ASUS UEFI BIOS EZ Mode
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE

Accessories	Cables
	2 x SATA 6Gb/s cables
	Miscellaneous
	1 x ASUS Wi-Fi moving antennas
	1 x I/O shield
	1 x M.2 anchor
	Documentation
	1 x Quick start guide
Operating System	Windows^® 11 , Windows^® 10 64-bit
Form Factor	micro-ATX Form Factor
	8.9 inch x 7.4 inch (22.6 cm x 18.8 cm )

Weight	1.00 kg
Dimensions	30.00 × 20.00 × 10.00 cm
Combo Bundle	i5-12400+MOBO, i3-14100+MOBO, i3-14100F+MOBO, i5-14400+MOBO, i5-14400F+MOBO, i3-12100+MOBO, i3-12100F+MOBO, i5-12400F+MOBO
