| Chipset | INTEL H610 |
|---|---|
| CPU | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700 |
| Memory | 2x DDR5, Maximum Memory Capacity 96GB Memory Support DDR5 5600 MHz (by JEDEC & POR) Supports Intel® XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| Onboard Graphics | 1x HDMI™ Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz* 1x VGA Support VGA, maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Slot | 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to (From CPU) PCI_E2 Gen PCIe 3.0 supports up to (From Chipset) |
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| Storage | 1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G * SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot. |
| USB | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) |
| LAN | Realtek® RTL8111H Gigabit LAN |
| Internal IO | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports |
| LED FEATURE | 4x EZ Debug LED |

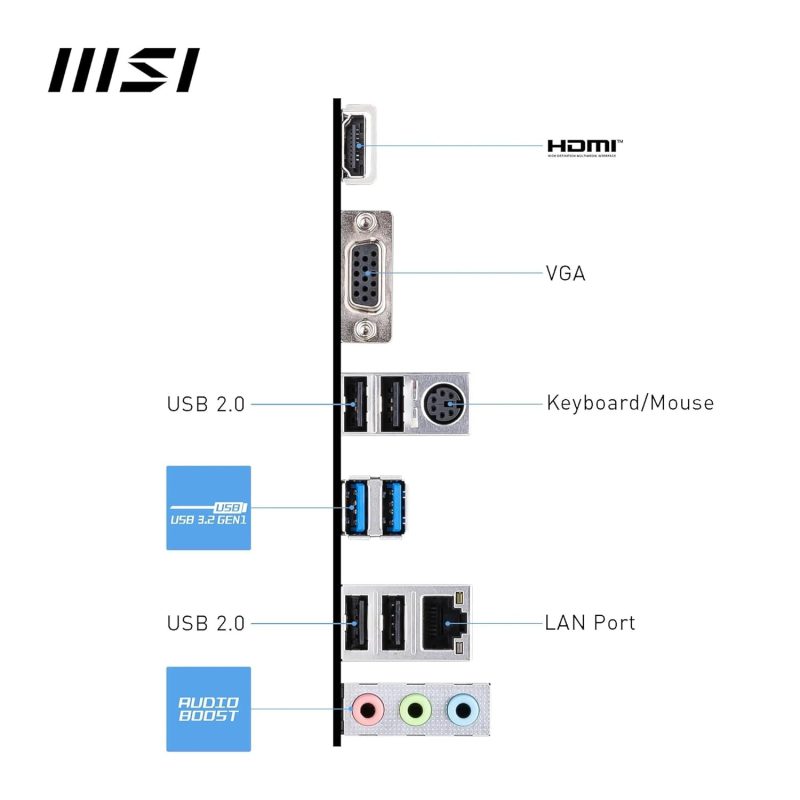

| BACK PANEL PORTS |
|
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |

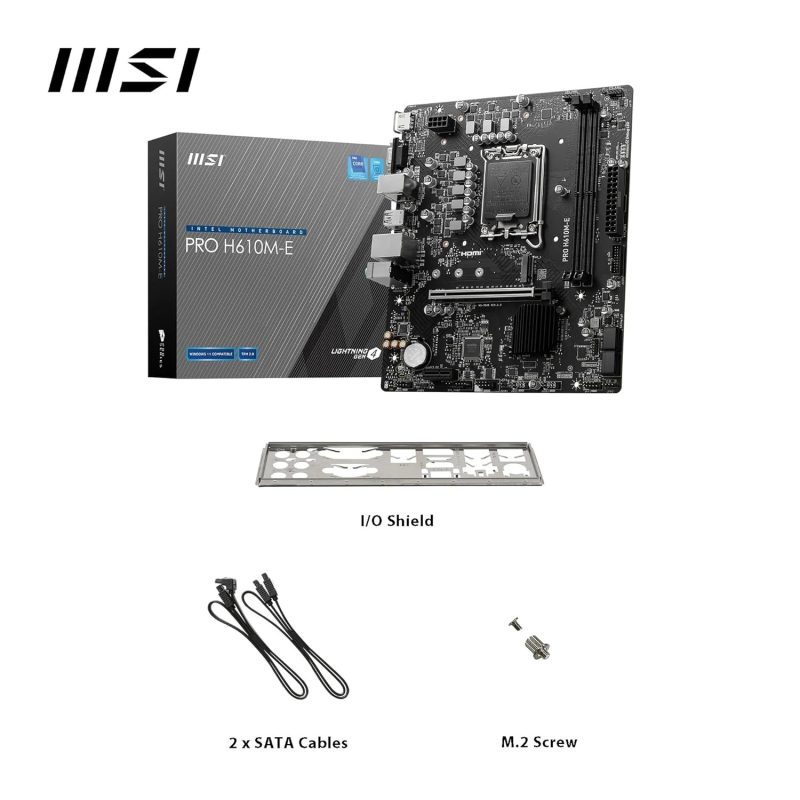

| BOX CONTENT |  |
| PCB Info | mATX 200mmx236.16mm |

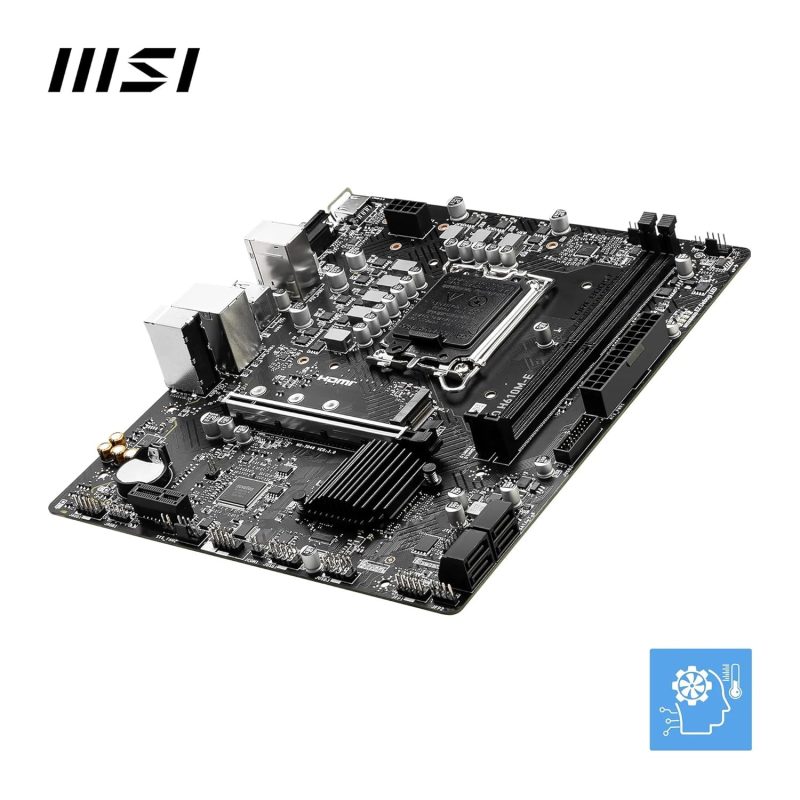

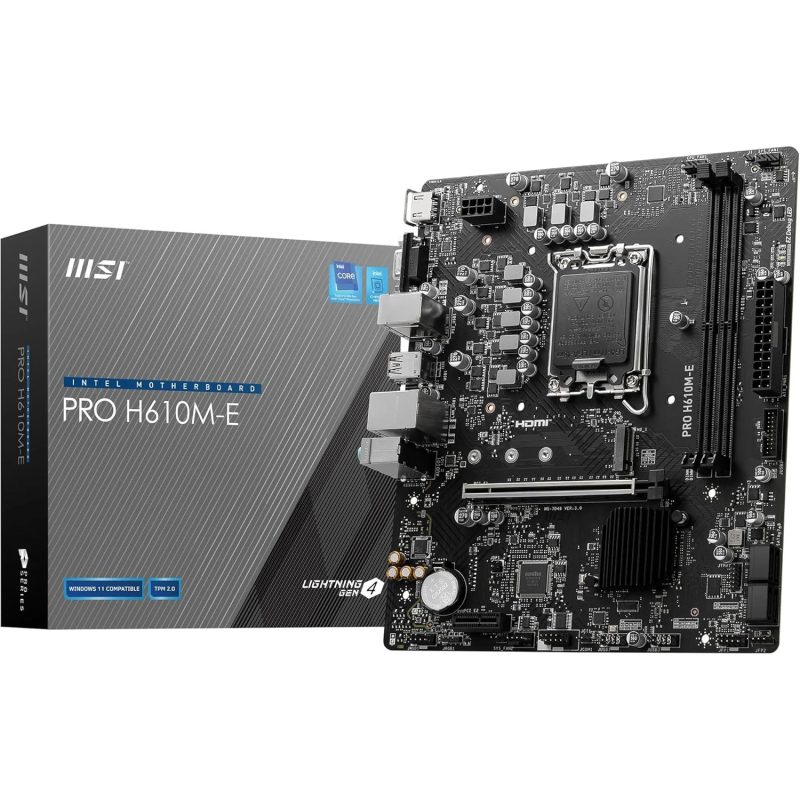

MSI Pro H610M-E DDR5 5600MHz Intel H610 LGA1700 mATX Motherboard
RM899 – RM1259- GEN3 M.2 SSD STORAGE – The M.2 Gen3 x4 32Gb/s slot is designed to maximize NVMe based SSD performance; SSD storage reduces loading time
- WELL CONNECTED – Network hardware includes a 1Gbps LAN controller; Rear ports include USB 3.2 Gen 1 Type-A (5Gbps), HDMI 1.4 and VGA, and 7.1 HD Audio with Audio Boost

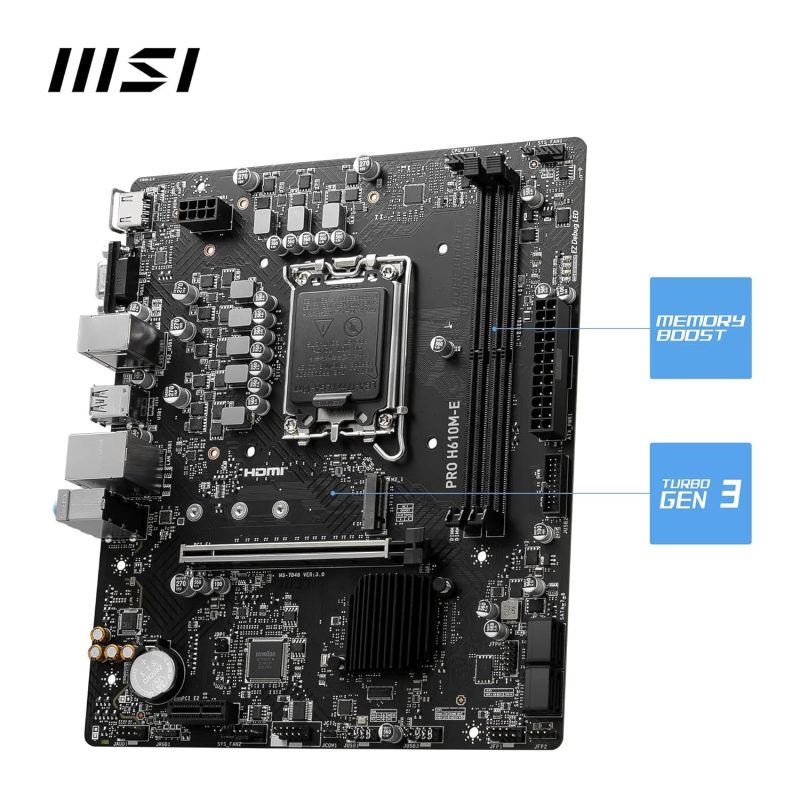

- DDR5 MEMORY, PCIe 4.0 x16 SLOT – 2 x DDR5 DIMM slots with Memory Boost isolated circuitry for overclocking (1DPC 1R, 5600 MHz); Primary PCIe x16 slot supports PCIe 4.0 (64GB/s) and includes Steel Armor
- MSI PRO series motherboards offer numerous possibilities for the needs of prosumers
- PASSIVE & AI COOLING – A chipset heatsinks provide passive cooling; Frozr AI cooling automatically adjusts system fan settings based on CPU & GPU temperatures
- MSI Motherboards offer a lot of practical and intelligent features for tinkerers
| Weight | 1.00 kg |
|---|---|
| Dimensions | 15.00 × 5.00 × 15.00 cm |
