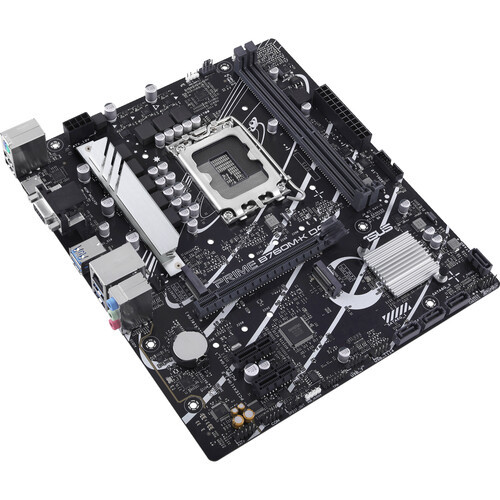

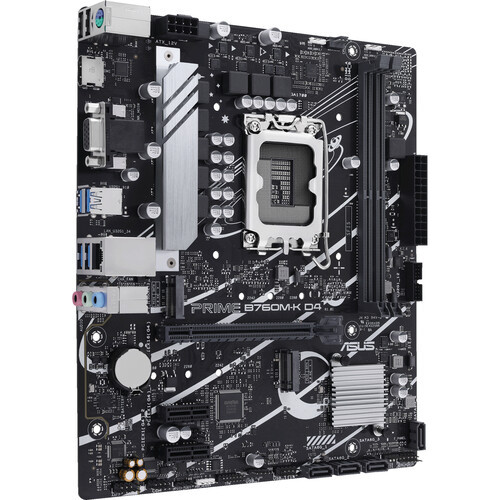

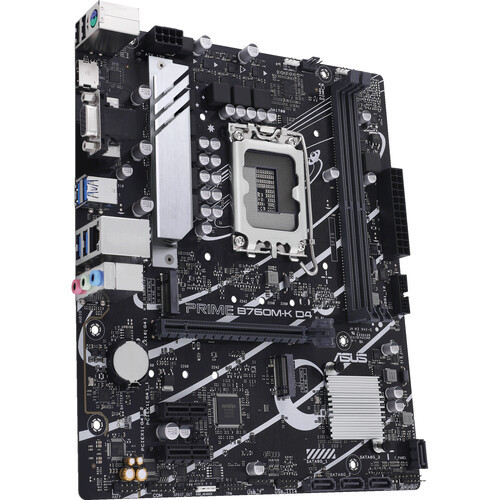

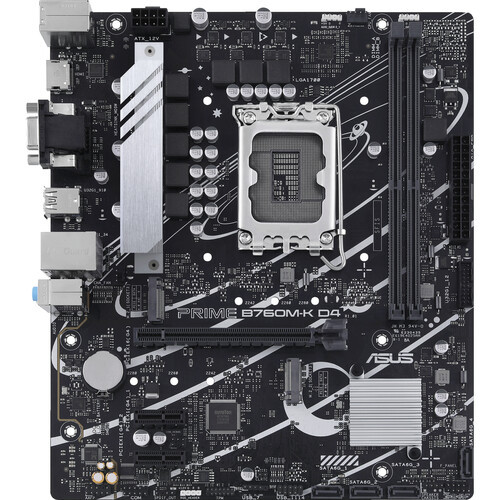

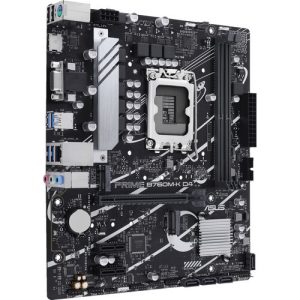

| Model | PRIME B760M-K | |||||
| CPU |
Intel® Socket LGA1700 for Intel® CoreTM 14th & 13th Gen Processors, Intel® CoreTM 12th Gen, Pentium® Gold and Celeron® Processors* |
|||||
|
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** |
||||||
| Chipset | Intel® B760 Chipset | |||||
| Memory |
2 x DIMM slots, Max. 96GB, DDR5 8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory* |
|||||
|
Dual Channel Memory Architecture |
||||||
|
Supports Intel® Extreme Memory Profile (XMP) |
||||||
|
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/. |
||||||
|
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
||||||
| Graphics | 1 x VGA port | |||||
| 1 x HDMI port** | ||||||
|
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. |
||||||
|
** Supports 4K@60Hz as specified in HDMITM 2.1. |
||||||
| Expansion Slots |
Intel® CoreTM Processors (14th & 13th & 12th Gen) |
|||||
| 1 x PCIe 4.0 x16 slot | ||||||
| Intel® B760 Chipset | ||||||
| 2 x PCIe 4.0 x1 slots | ||||||
|
– To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. |
||||||
| Storage |
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* |
|||||
|
Intel® CoreTM Processors (14th & 13th & 12th Gen) |
||||||
|
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) |
||||||
| Intel® B760 Chipset | ||||||
|
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) |
||||||
| 4 x SATA 6Gb/s ports | ||||||
|
* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. |
||||||
| Ethernet | 1 x Realtek 2.5Gb Ethernet | |||||
| USB | Rear USB (Total 6 ports) | |||||
|
4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A) |
||||||
|
2 x USB 2.0 ports (2 x Type-A） |
||||||
| Front USB (Total 5 ports) | ||||||
|
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports |
||||||
|
2 x USB 2.0 headers support 3 additional USB 2.0 ports |
||||||
| Audio |
Realtek 7.1 Surround Sound High Definition Audio CODEC* |
|||||
|
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking |
||||||
|
– Supports up to 24-Bit/192 kHz playback |
||||||
| Audio Features | ||||||
| – Audio Shielding | ||||||
| – Premium audio capacitors | ||||||
|
– Dedicated audio PCB layers |
||||||
|
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
||||||

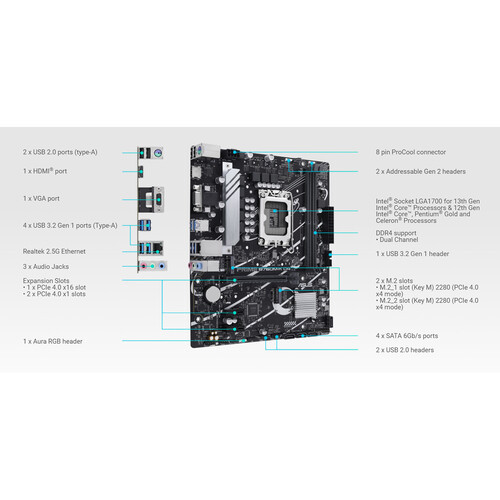

| Back Panel I/O Ports |
4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A) |
|||||
|
2 x USB 2.0 ports (2 x Type-A) |
||||||
| 1 x VGA port | ||||||
| 1 x HDMITM port | ||||||
|
1 x Realtek 2.5Gb Ethernet port |
||||||
| 3 x Audio jacks | ||||||
|
1 x PS/2 Keyboard/Mouse combo port |
||||||
| Internal I/O Connectors | Fan and Cooling related | |||||
| 1 x 4-pin CPU Fan header | ||||||
|
2 x 4-pin Chassis Fan headers |
||||||
| Power related | ||||||
|
1 x 24-pin Main Power connector |
||||||
|
1 x 8-pin +12V Power connector |
||||||
| Storage related | ||||||
| 2 x M.2 slots (Key M) | ||||||
| 4 x SATA 6Gb/s ports | ||||||
| USB | ||||||
|
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports |
||||||
|
2 x USB 2.0 headers support 3 additional USB 2.0 ports |
||||||
| Miscellaneous | ||||||
|
2 x Addressable Gen 2 headers |
||||||
| 1 x Aura RGB header | ||||||
| 1 x Clear CMOS header | ||||||
| 1 x COM Port header | ||||||
|
1 x Front Panel Audio header (AAFP) |
||||||
| 1 x S/PDIF Out header | ||||||
| 1 x Speaker header | ||||||
| 1 x SPI TPM header (14-1pin) | ||||||
|
1 x 10-1 pin System Panel header |
||||||
| Special Features | ASUS 5X PROTECTION III | |||||
| – DIGI+ VRM | ||||||
| – LANGuard | ||||||
| – Overvoltage Protection | ||||||
| – SafeSlot Core | ||||||
| – Stainless-Steel Back I/O | ||||||
| ASUS Q-Design | ||||||
| – Q-DIMM | ||||||
| – Q-LED Core | ||||||
| – Q-Slot | ||||||
| ASUS EZ DIY | ||||||
| – ProCool | ||||||
| ASUS Thermal Solution | ||||||
| – VRM heatsink design | ||||||
| Aura Sync | ||||||
| – Aura RGB header | ||||||
|
– Addressable Gen 2 headers |
||||||
| Software Features | ASUS Exclusive Software | |||||
| Armoury Crate | ||||||
| – Aura Sync | ||||||
| – Fan Xpert 2+ | ||||||
| – Power Saving | ||||||
|
– Two-Way AI Noise Cancellation |
||||||
| AI Suite 3 | ||||||
| – DIGI+ VRM | ||||||
| – PC Cleaner | ||||||
| ASUS CPU-Z | ||||||
|
Norton 360 Deluxe (60 Days Free Trial) |
||||||
| WinRAR | ||||||
| UEFI BIOS | ||||||
| ASUS EZ DIY | ||||||
| – ASUS CrashFree BIOS 3 | ||||||
| – ASUS EZ Flash 3 | ||||||
| – ASUS UEFI BIOS EZ Mode | ||||||
| BIOS |
128 Mb Flash ROM, UEFI AMI BIOS |
|||||
| Manageability | WOL by PME, PXE | |||||
| Accessories | Cables | |||||
| 2 x SATA 6Gb/s cables | ||||||
| Miscellaneous | ||||||
| 1 x I/O Shield | ||||||
| 2 x M.2 anchors | ||||||
| Documentation |
