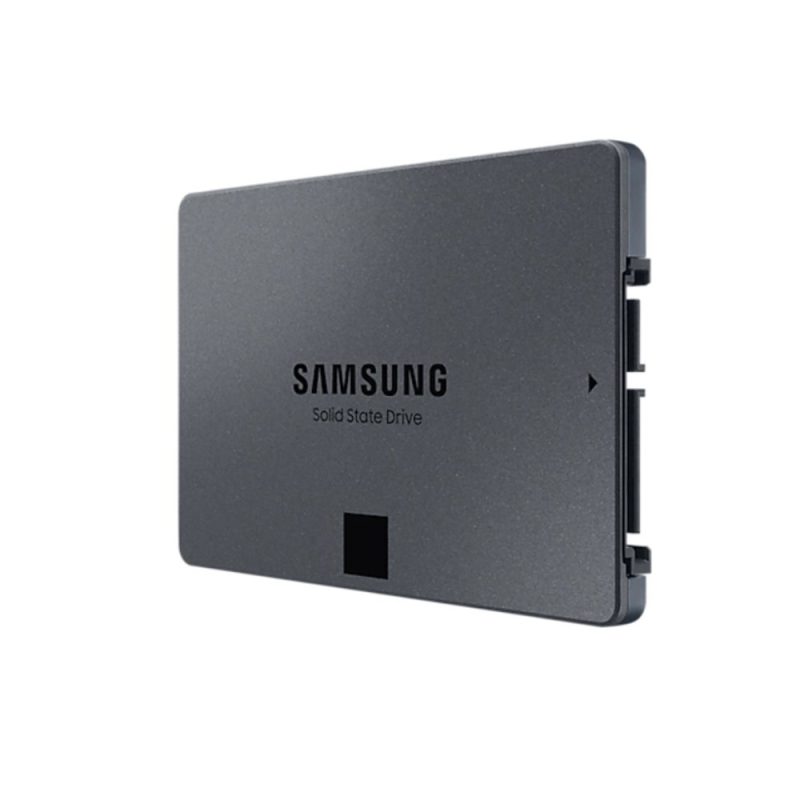

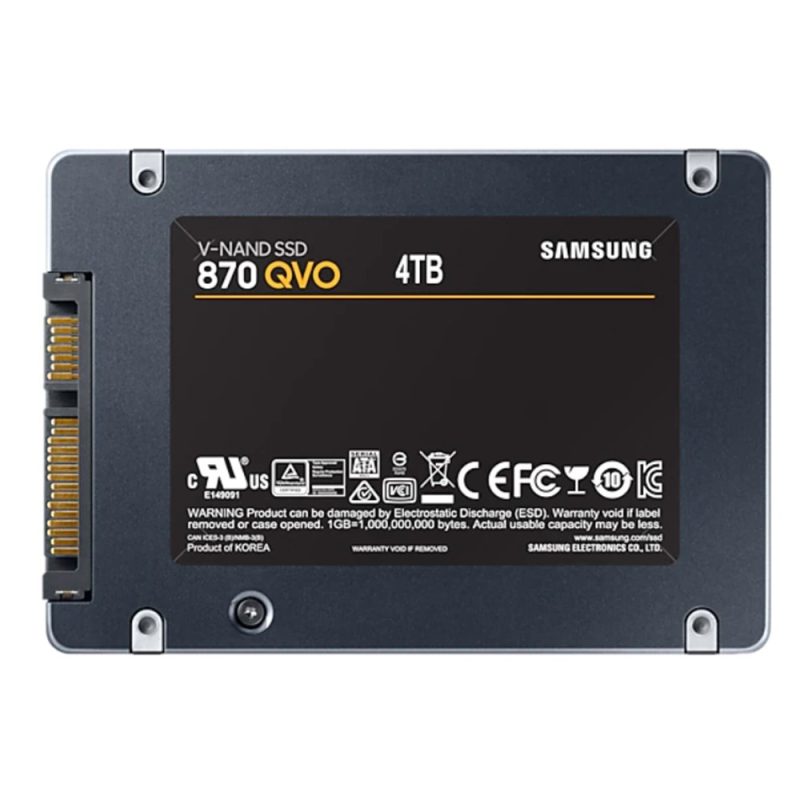

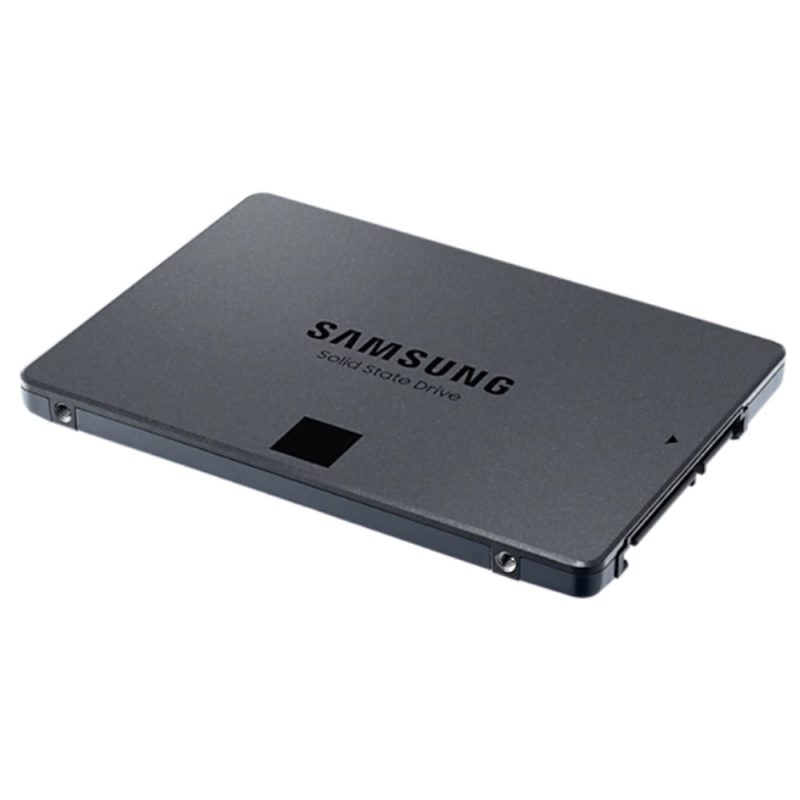

Samsung 870 4TB QVO SATA 2.5″ SSD – MZ-77Q4T0BW

General Feature

• ApplicationClient PCs
•
• Capacity4,000 GB (1 GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
•
• Form Factor2.5 inch
•
• InterfaceSATA 6 Gb/s Interface, compatible with SATA 3 Gb/s & SATA 1.5 Gb/s interface
•
• Dimension (Pack: WxHxD)100 X 69.85 X 6.8 (mm)
•
• WeightApporx. 54.0g Weight
•
• Storage MemorySamsung V-NAND 4bit MLC
•
• ControllerSamsung MKX Controller
•
• Cache MemorySamsung 4 GB Low Power DDR4 SDRAM

Special Feature

• TRIM SupportTRIM Supported
•
• S.M.A.R.T SupportS.M.A.R.T Supported
•
• GC (Garbage Collection)Auto Garbage Collection Algorithm
•
• Encryption SupportAES 256-bit Encryption (Class 0),TCG/Opal, IEEE1667 (Encrypted drive)
•
• WWN SupportWorld Wide Name supported
•
• Device Sleep Mode SupportYes

Performance

• Sequential ReadUp to 560 MB/s Sequential Read * Performance may vary based on system hardware & configuration
•
• Sequential WriteUp to 530 MB/s Sequential Write * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated
•
• Random Read (4KB, QD32)Up to 98,000 IOPS Random Read * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated
•
• Random Write (4KB, QD32)Up to 88,000 IOPS Random Write * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated
•
• Random Read (4KB, QD1)Up to 11,000 IOPS Random Read * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated
•
• Random Write (4KB, QD1)Up to 35,000 IOPS Random Write * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated

Environment

• Average Power Consumption (system level)Average: 3.2 W *Maximum: 5.5 W (Burst mode)* Actual power consumption may vary depending on system hardware & configuration
•
• Power consumption (Idle)Max. 35 mW * Actual power consumption may vary depending on system hardware & configuration
•
• Allowable Voltage5V ± 5% Allowable voltage
•
• Reliability (MTBF)1.5 Million Hours Reliability (MTBF)
•
• Operating Temperature0 – 70 ℃ Operating Temperature
•
• Shock1,500 G & 0.5 ms (Half sine)

Accessories

• Installation KitNot Available

Software

• Management SWMagician Software for SSD management

Warranty

• 3 Years Limited Warranty or 1,440 TBW Limited Warranty
