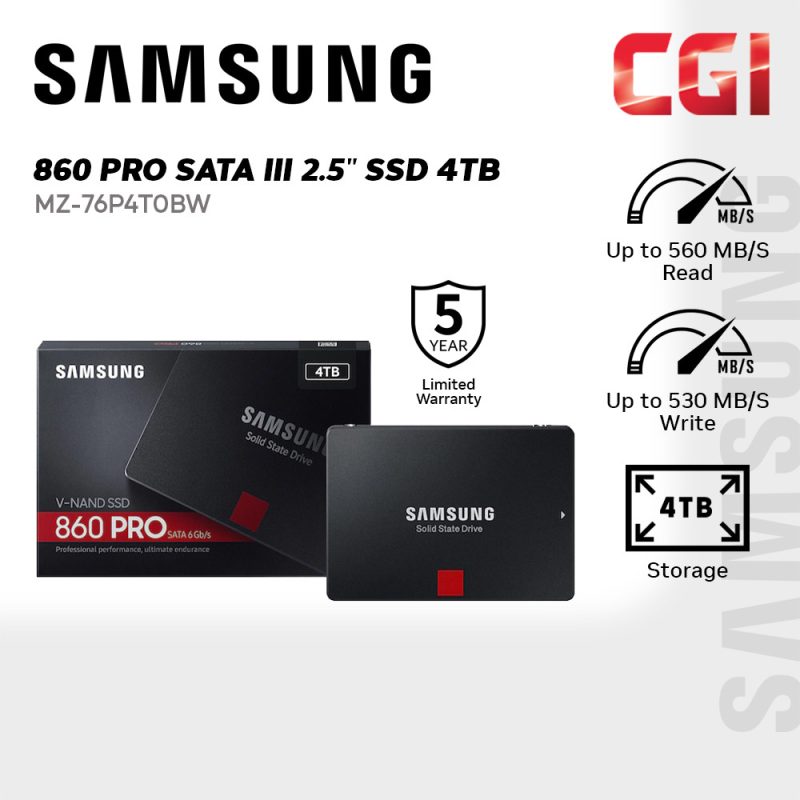

Samsung 860 PRO SATA 2.5″ SSD 4TB – MZ-76P4T0BW

General Feature

• ApplicationClient PCs
•
• Capacity4,096 GB (1 GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
•
• Form Factor2.5 inch
•
• InterfaceSATA 6 Gb/s Interface, compatible with SATA 3 Gb/s & SATA 1.5 Gb/s interface
•
• Dimension (WxHxD)100 X 69.85 X 6.8 (mm)
•
• WeightMax 62.0g Weight
•
• NAND TypeSamsung V-NAND 2bit MLC
•
• ControllerSamsung MJX Controller
•
• Cache MemorySamsung 4 GB Low Power DDR4 SDRAM

Special Feature

• TRIM SupportTRIM Supported
•
• S.M.A.R.T SupportS.M.A.R.T Supported
•
• GC (Garbage Collection)Auto Garbage Collection Algorithm
•
• Encryption SupportAES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
•
• WWN SupportWorld Wide Name supported
•
• Device Sleep Mode SupportYes

Performance

• Sequential ReadUp to 560 MB/s Sequential Read * Performance may vary based on system hardware & configuration
•
• Sequential WriteUp to 530 MB/s Sequential Write * Performance may vary based on system hardware & configuration
•
• Random Read (4KB, QD32)Up to 100,000 IOPS Random Read * Performance may vary based on system hardware & configuration
•
• Random Write (4KB, QD32)Up to 90,000 IOPS Random Write * Performance may vary based on system hardware & configuration
•
• Random Read (4KB, QD1)Up to 11,000 IOPS Random Read * Performance may vary based on system hardware & configuration
•
• Random Write (4KB, QD1)Up to 43,000 IOPS Random Write * Performance may vary based on system hardware & configuration

Environment

• Power Consumption*Average: 2.2 W*Maximum: 4.5 W (Burst mode)* Actual power consumption may vary depending on system hardware & configuration
•
• Reliability (MTBF)1.5 Million Hours Reliability (MTBF)
•
• Operating Temperature0 – 70 ? Operating Temperature
•
• Shock1,500G & 0.5ms (Half sine)

Software

• Management SWMagician Software for SSD management

Installation Kit

• Not Available

Warranty

• 5 Years Limited Warrantyor 4,800 TBW Limited Warranty
