FEATURES / BENEFITS
Level up with PCIe 4.0 NVMe — Dominate with cutting-edge Gen 4×4 intense speeds up to 7,300/7,000MB/s1 read/write and up to 1,000,000 IOPS1 performance.
Maximize your motherboard — Powerful slim M.2 form factor to enhance your gaming rig and laptop.
More space to play — Get all the latest titles and DLC available. Performance with high capacities up to 4TB2 to store your favorite games and media.
Low profile graphene aluminum heat spreader — Advanced thermal dissipation keeps your drive cool during intense usage. Brings higher performance to the tightest of spaces in gaming laptops and motherboards.

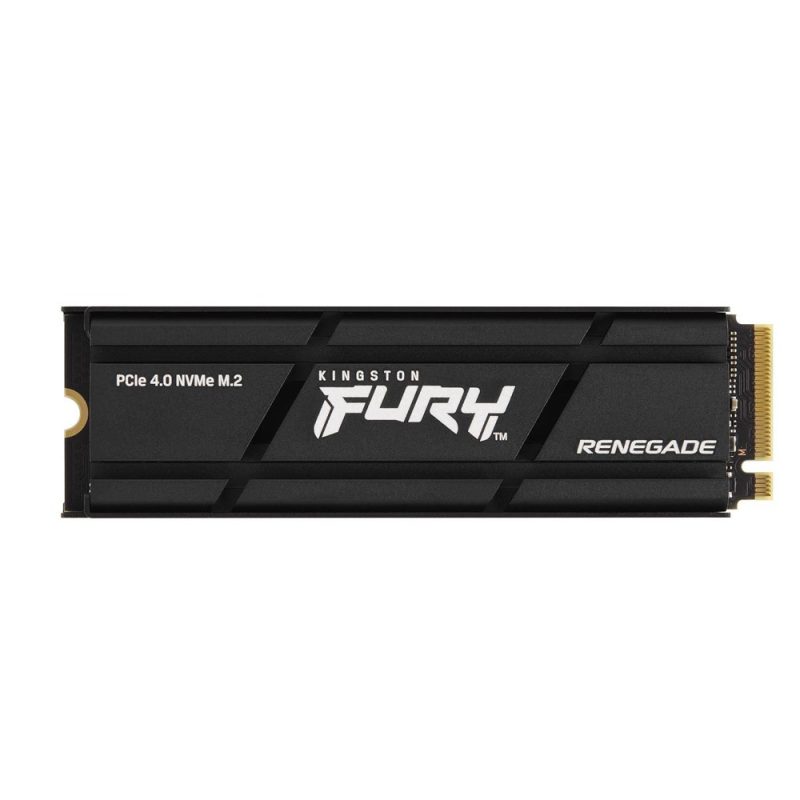

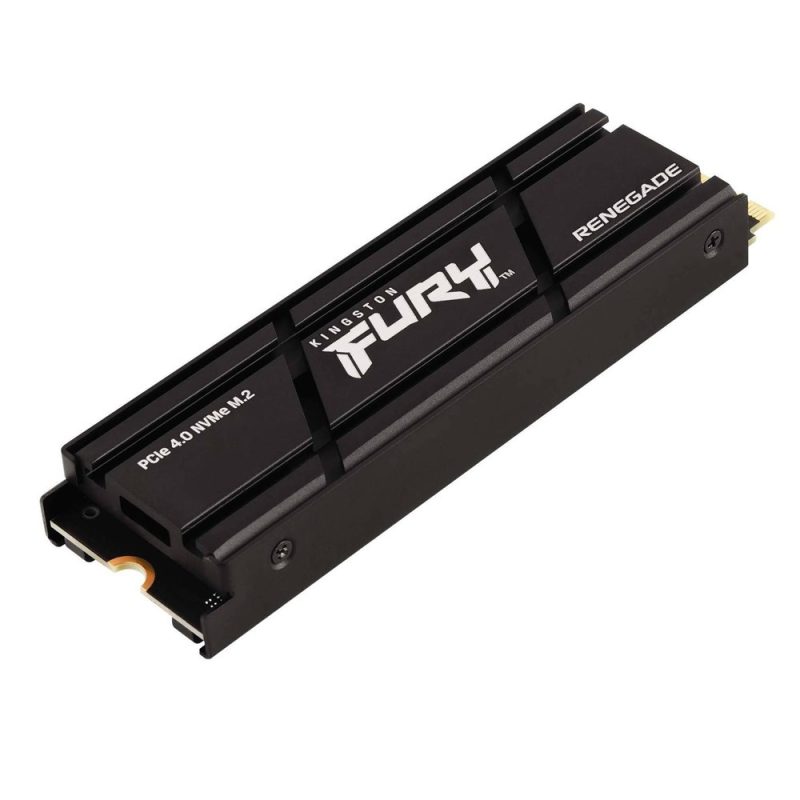

PS5™ Ready — Game-changing storage designed to maximize your play. Optional integrated aluminum heatsink model provides an additional layer of thermal dispersion to cool the drive and maintain peak performance
SPECIFICATIONS
Form Factor – M.2 2280
Interface – PCIe 4.0 x4 NVMe
Capacities – 500GB, 1TB, 2TB, 4TB
Controller Phison – E18
NAND – 3D TLC
Sequential Read/Write
500GB – 7,300/3,900MB/s
1TB – 7,300/6,000MB/s
2TB – 7,300/7,000MB/s
4TB – 7,300/7,000MB/s
Random 4K Read/Write
1 500GB – up to 450,000/900,000 IOPS
1TB – up to 900,000/1,000,000 IOPS
2TB – up to 1,000,000/1,000,000 IOPS
4TB – up to 1,000,000/1,000,000 IOPS
Total Bytes Written (TBW)
500GB – 500TB 1TB – 1.0PB 2TB – 2.0PB 4TB – 4.0PB
Power Consumption
500GB – 5mW Idle / 0.34W Avg / 2.7W (MAX) Read / 4.1W (MAX) Write
1TB – 5mW Idle / 0.33W Avg / 2.8W (MAX) Read / 6.3W (MAX) Write
2TB – 5mW Idle / 0.36W Avg / 2.8W (MAX) Read / 9.9W (MAX) Write
4TB – 5mW Idle / 0.36W Avg / 2.7W (MAX) Read / 10.2W (MAX) Write
Storage Temperature -40°C~85°C
Operating Temperature 0°C~70°C
Dimensions Heat spreader:
80mm x 22mm x 2.21mm (500GB-1TB)
80mm x 22mm x 3.5mm (2TB-4TB)
Heatsink: 80mm x 23.67mm x 10.5mm
Weight Heat spreader:500GB-1TB – 7g 2TB-4TB – 9.7g
Heatsink: 500GB-1TB – 32.1g 2TB-4TB – 34.9g
Vibration Operating 2.17G Peak (7-800Hz)
Vibration Non-operating 20G Peak (20-1000Hz) MTBF 1,800,000 hours
Warranty/Support4 Limited 5-year warranty with free technical support
