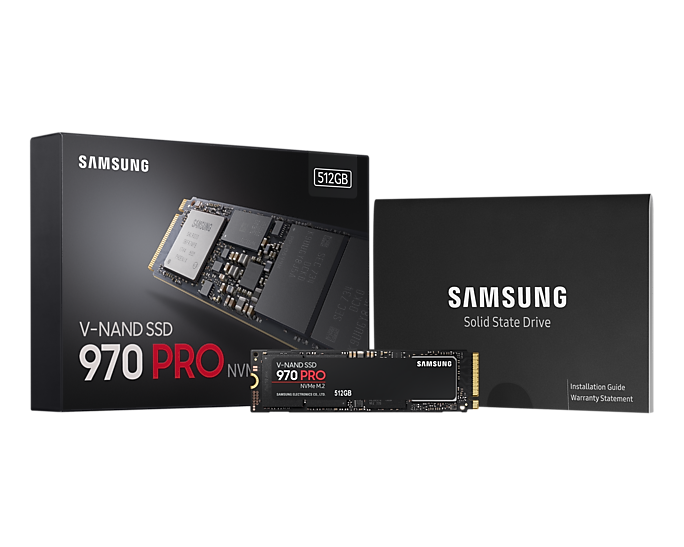

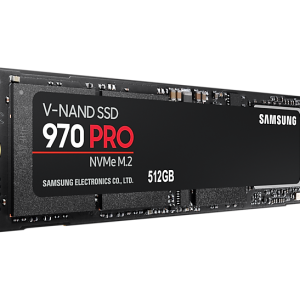

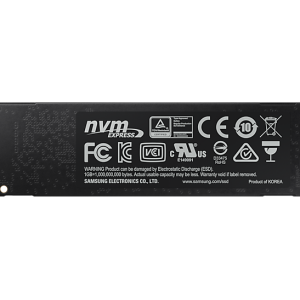

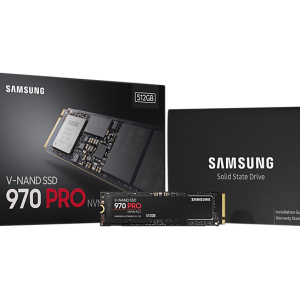

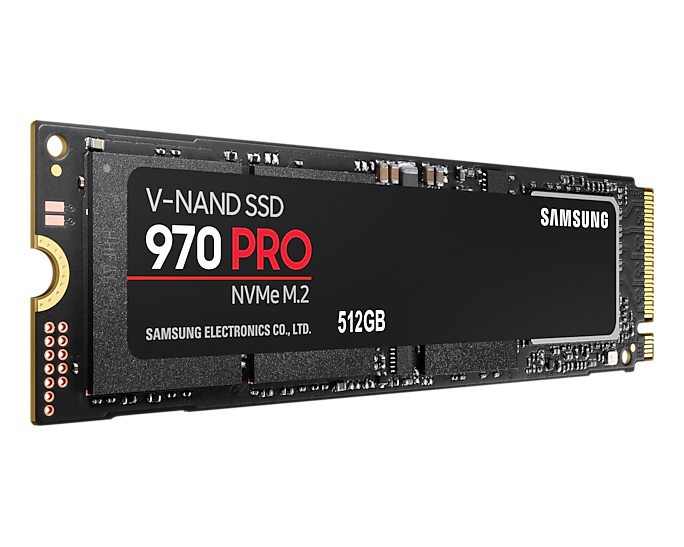

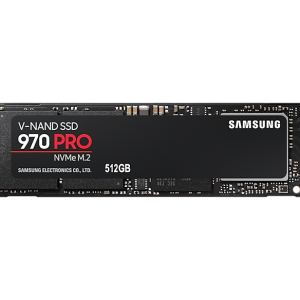

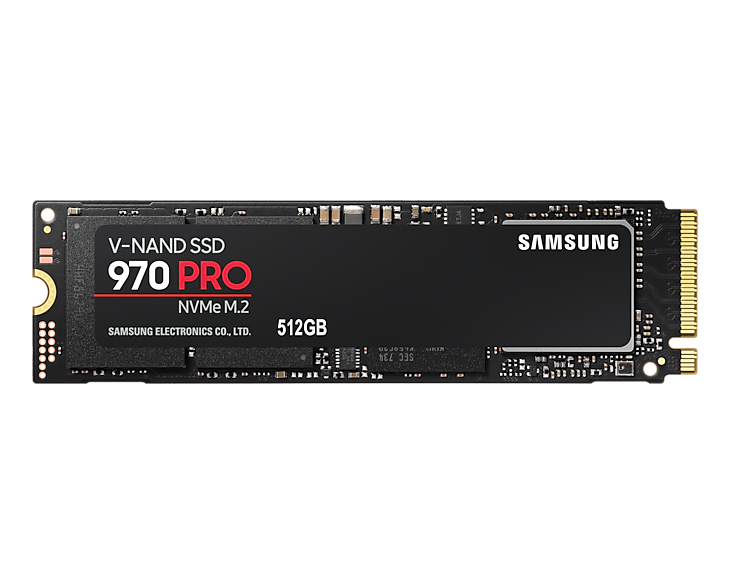

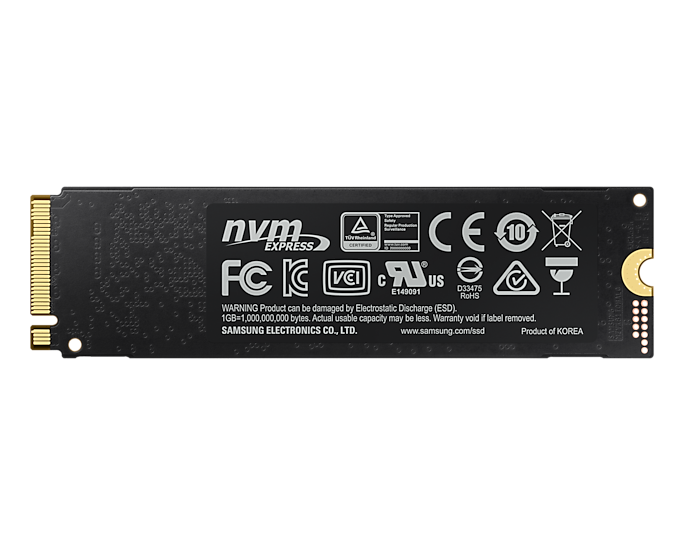

Samsung SSD 970 PRO NVMe M.2 512GB – MZ-V7P512BW

General Feature

• ApplicationClient PCs
•
• Capacity512GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
•
• Form FactorM.2 (2280)
•
• InterfacePCIe Gen 3.0 x4, NVMe 1.3
•
• Dimension (WxHxD)80.15 x 22.15 x 2.38 (mm)
•
• WeightMax 8.0 g Weight
•
• Storage MemorySamsung V-NAND 2-bit MLC
•
• ControllerSamsung Phoenix Controller
•
• Cache MemorySamsung 512MB Low Power DDR4 SDRAM

Special Feature

• TRIM SupportSupported
•
• S.M.A.R.T SupportSupported
•
• GC (Garbage Collection)Auto Garbage Collection Algorithm
•
• Encryption SupportAES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
•
• WWN SupportNot supported
•
• Device Sleep Mode SupportYes

Performance

• Sequential ReadUp to 3,500 MB/s * Performance may vary based on system hardware & configuration
•
• Sequential WriteUp to 2,300 MB/s * Performance may vary based on system hardware & configuration
•
• Random Read (4KB, QD32)Up to 370,000 IOPS * Performance may vary based on system hardware & configuration
•
• Random Write (4KB, QD32)Up to 500,000 IOPS * Performance may vary based on system hardware & configuration
•
• Random Read (4KB, QD1)Up to 15,000 IOPS * Performance may vary based on system hardware & configuration
•
• Random Write (4KB, QD1)Up to 55,000 IOPS * Performance may vary based on system hardware & configuration

Environment

• Average Power Consumption (system level)* Average: 5.2 W * Maximum: 8.5 W (Burst mode) * Actual power consumption may vary depending on system hardware & configuration
•
• Power consumption (Idle)Max. 30 mW * Actual power consumption may vary depending on system hardware & configuration
•
• Allowable Voltage3.3 V ± 5 % Allowable voltage
•
• Reliability (MTBF)1.5 Million Hours Reliability (MTBF)
•
• Operating Temperature0 – 70 ℃ Operating Temperature
•
• Shock1,500 G & 0.5 ms (Half sine)

Accessories

• Installation KitNot Available

Software

• Management SWMagician Software for SSD management

Warranty

• 5-Year Limited Warranty or 600 TBW Limited Warranty
