| Application | Client PCs |
| Rated Capacity | 1,000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise) |
| Form Factor | M.2 (2280) |
| Interface | PCIe® 4.0 x4 / 5.0 x2 NVMe™ 2.0 |
| Dimension (Pack: WxHxD) | Max 80.15 x Max 22.15 x Max 2.38 mm |
| Weight | Max 9.0g Weight |
| Storage Memory | Samsung V-NAND TLC |
| Controller | Samsung in-house Controller |
| Cache Memory | HMB(Host Memory Buffer) |
| TRIM Support | Supported |
| S.M.A.R.T Support | Supported |
| GC (Garbage Collection) | Auto Garbage Collection Algorithm |
| Encryption Support | AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive) |
| WWN Support | Not supported |
| Device Sleep Mode Support | Yes |
| Sequential Read | Up to 7,150MB/s* |
| Sequential Write | Up to 6,300MB/s* |
| Random Read (4KB, QD32) | Up to 850,000 IOPS * Performance may vary based on system hardware & configuration |
| Random Write (4KB, QD32) | Up to 1,350,000 IOPS * Performance may vary based on system hardware & configuration |
| Average Power Consumption (system level) | Average: Read 4.3 W / Write 4.2 W* Actual power consumption may vary depending on system hardware & configuration |
| Power consumption (Idle) | Typical 60 mW * Actual power consumption may vary depending on system hardware & configuration |
| Power Consumption (Device Sleep) | Typical 5 mW * Actual power consumption may vary depending on system hardware & configuration |
| Allowable Voltage | 3.3 V ± 5 % Allowable voltage |
| Reliability (MTBF) | 1.5 Million Hours Reliability (MTBF) |
| Operating Temperature | 0 – 70 ℃ Operating Temperature |
| Shock | 1,500 G & 0.5 ms (Half sine) |

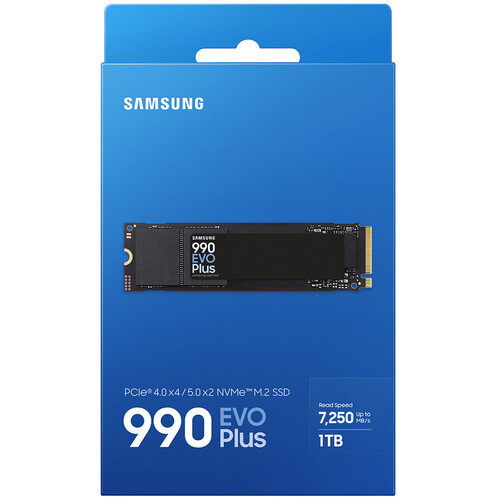

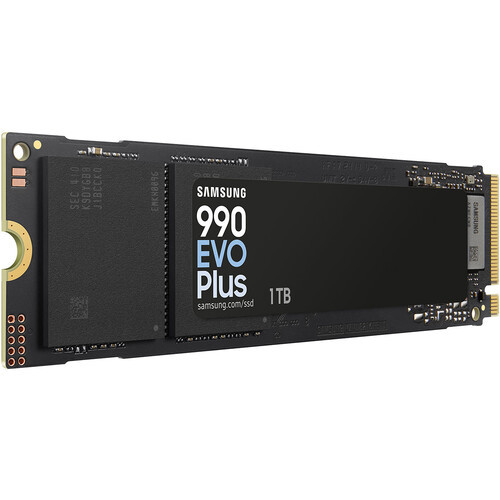

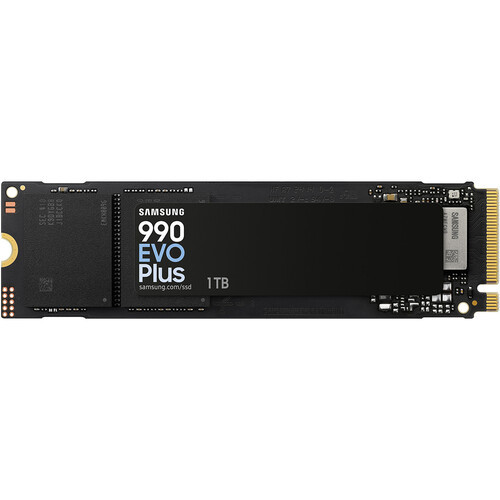

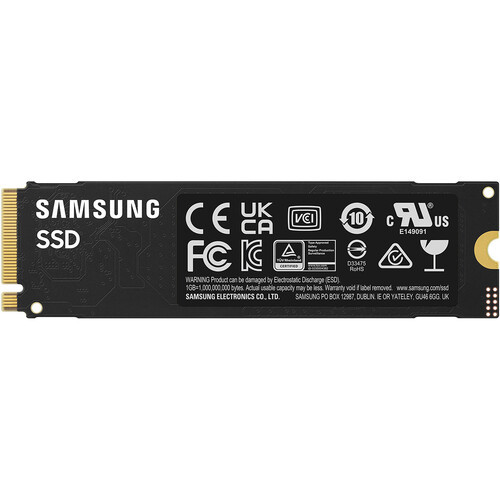

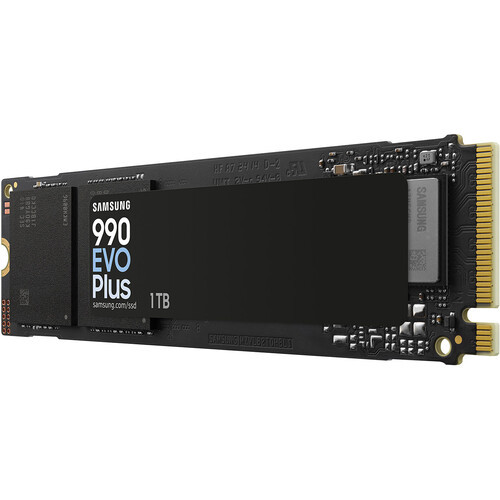

Samsung 1TB 990 EVO Plus NVMe M.2.SSD – MZ-V9S1T0BW
Original price was: RM599.RM429Current price is: RM429.- 1TB Storage Capacity
- M.2 2280 Form Factor
- PCIe 5.0 x2 / 4.0 x4 Interface
- Host Memory Buffer (HMB) Cache
- Sequential Reads up to 7150 MB/s
- Sequential Writes up to 6300 MB/s
- Samsung In-House Controller
- Samsung V NAND TLC NAND (V8)
- Endurance (TBW): 600TB
- AES 256-Bit Data Encryption
Out of stock
| Weight | 1.00 kg |
|---|---|
| Dimensions | 15.00 × 10.00 × 5.00 cm |
