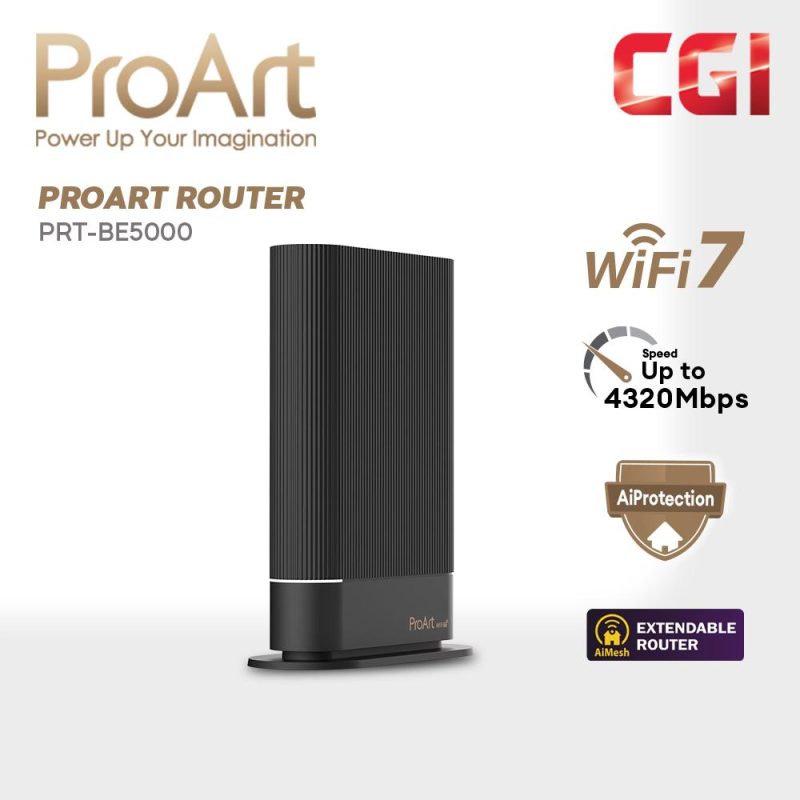

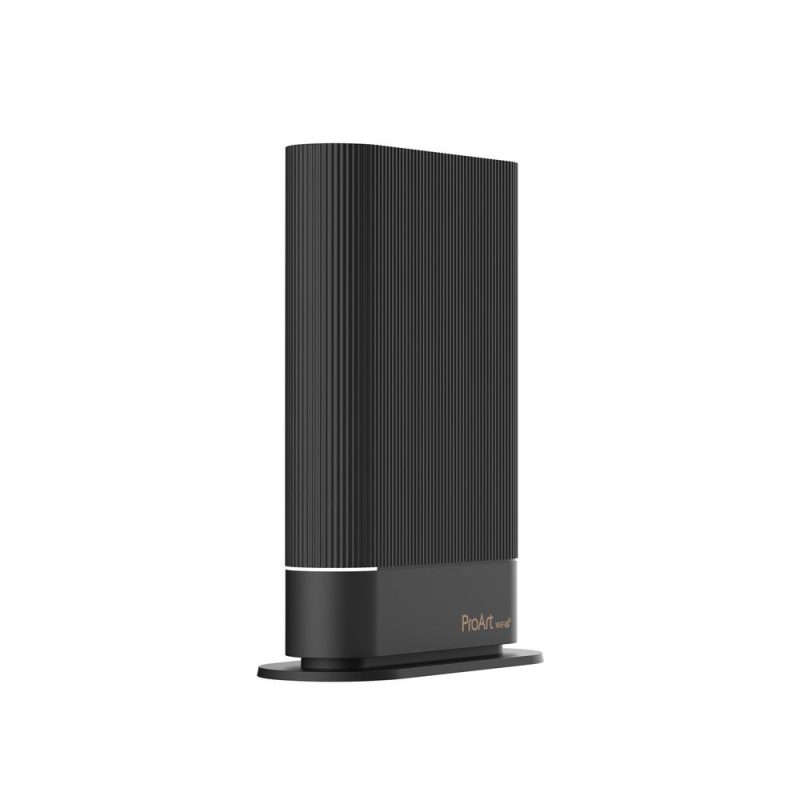

PREORDER [Creator-First Networking] Asus ProArt Router PRT-BE5000 Dual Band WiFi 7 5000Mbps AiMesh Extendable Router

Model : ProArt Router PRT-BE5000
Network Standard :
IPv6
IPv4
WiFi 7 (802.11be)
WiFi 6 (802.11ax)
WiFi 5 (802.11ac)
WiFi 4 (802.11n)
IEEE 802.11g
IEEE 802.11b
IEEE 802.11a

Product Segment :

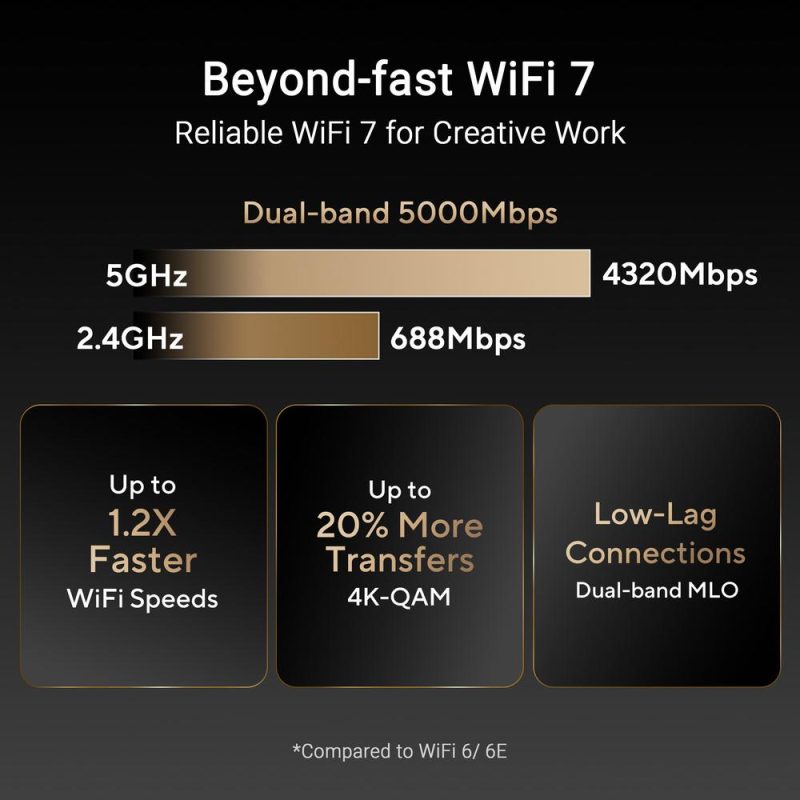

BE5000 ultimate BE performance : 688+4320 Mbps

WiFi Data Rate : WiFi 7 (802.11be) (5GHz): up to 4320 Mbps
WiFi 7 (802.11be) (2.4GHz): up to 688 Mbps

Antenna : 5*Internal Antennas (2*2.4GHz + 3*5GHz )

Transmit / Receive :
5GHz 3×3
2.4GHz 2×2

Processor : 2.0 GHz quad-core processor

Memory :
128 MB Flash
1 GB RAM

Boosts Speed :
OFDMA (Orthogonal Frequency Division Multiple Access)
4096-QAM high data rate
20/40/80/160 MHz bandwidth

Operating Frequency :
5 GHz
2.4 GHz

Operating Mode :
Wireless router mode
AiMesh node mode

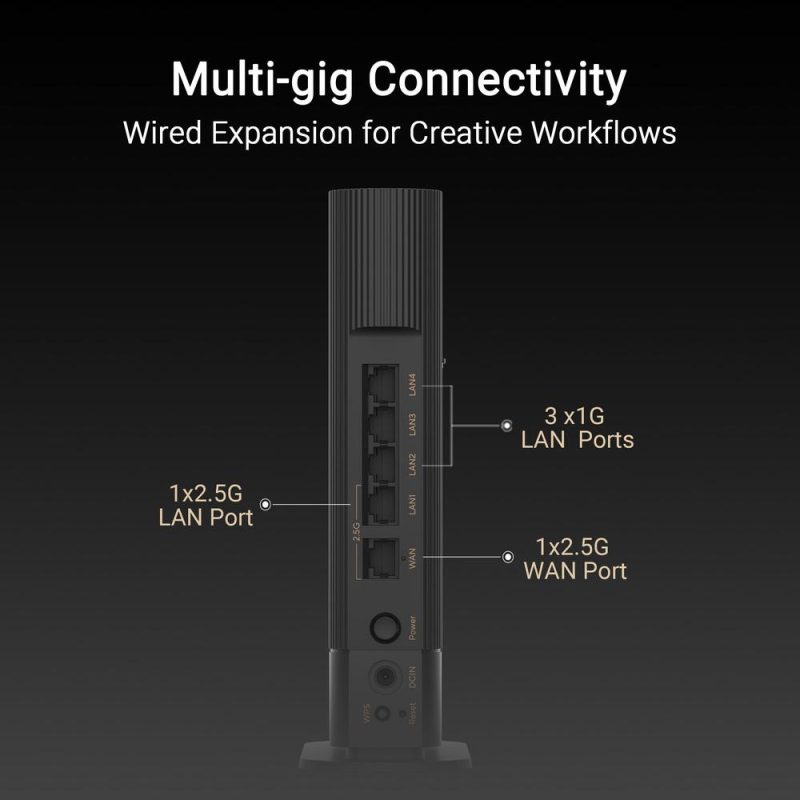

I/O Ports :
1x 2.5G for WAN,
1x 2.5G for LAN,
3 x 1G LAN

Buttons : WPS Button, Reset Button, Power Button

LED Indicator : Power & Status Combo LED x 1

Power Supply :
AC Input : 100V~240V (50~60Hz)
DC Output : 12 V with max. 2 A current

Package Content :
PRT-BE5000
RJ-45 cable
Power adapter
Quick Start Guide
Warranty card

Product Weight (g) : 503.7 g

Product Dimensions : 131 x 37.5 x 200 mm

AiMesh : AiMesh, • Primary AiMesh Router, • AiMesh Node

Parental Control : Time Scheduling, Safe Browsing, Customized Internet Schedule

Security :
AiProtection, VPN, WPA/WPA2/WPA3 Personal
WPA/WPA2/WPA3 Enterprise, WPS, Let's Encrypt, DNS-over-TLS, SSH, Security Scan, Firewall, • Maximum Firewall Keyword Filter : 64, • Maximum Firewall Network Service Filter : 32, • Maximum Firewall URL Filter : 64

AiProtection :

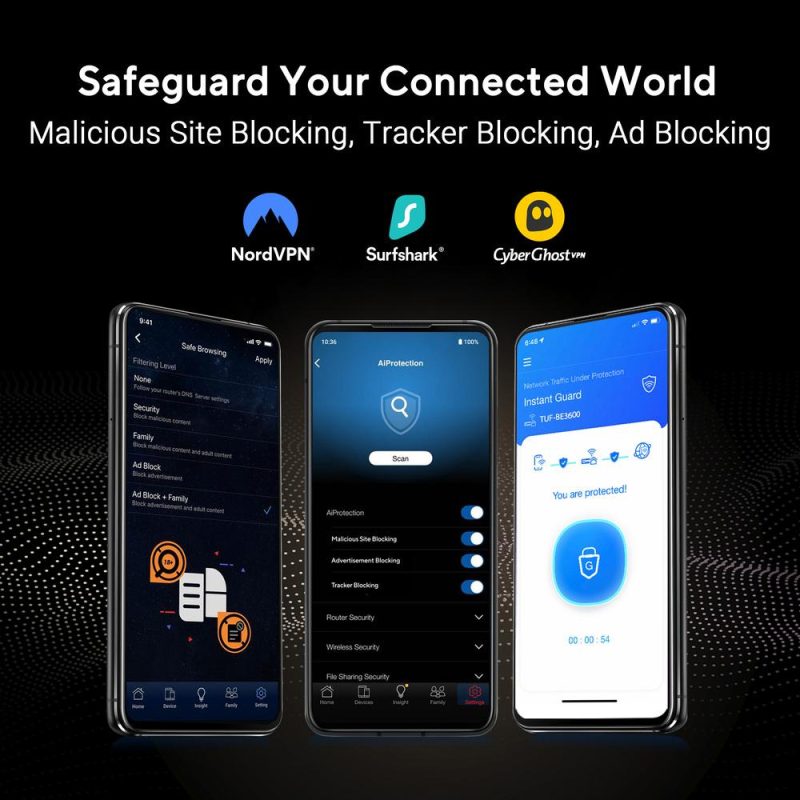

AiProtection, • Router Security Assessment, • Malicious Site Blocking

VPN :
Instant Guard, VPN Client L2TP, VPN Client Open VPN, VPN Client PPTP, VPN Client WireGuard, VPN Server IPSec, VPN Server Open VPN, VPN Server PPTP, VPN Server WireGuard, VPN Fusion

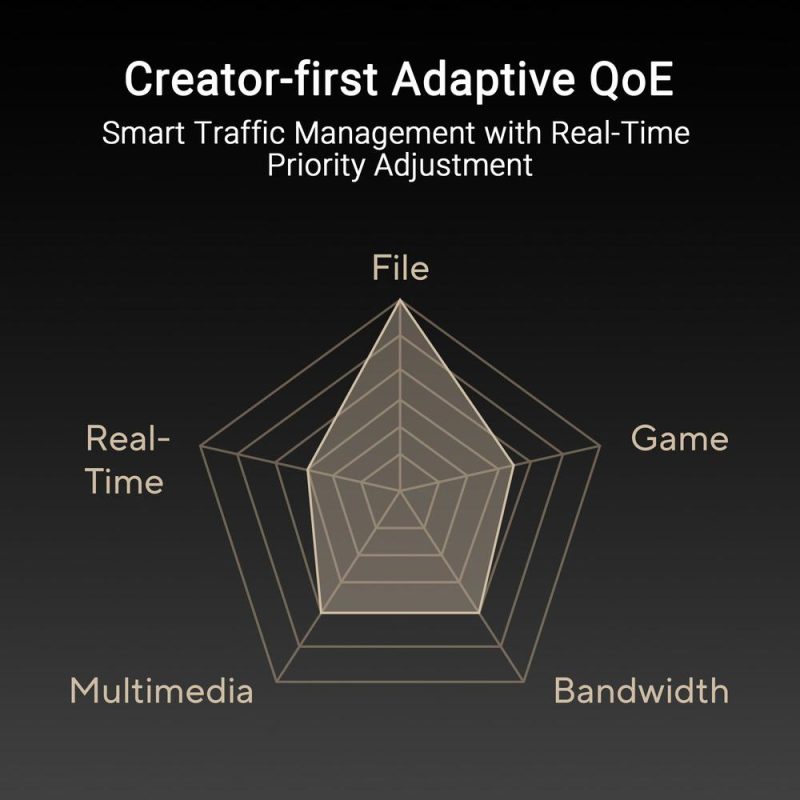

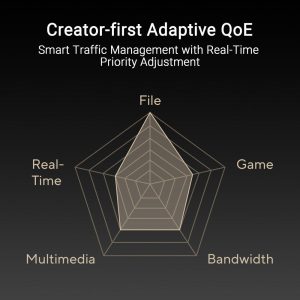

Traffic Control :
Traffic Monitor, • Real-time Traffic Monitor, • Wired Traffic Monitor, • Wireless Traffic Monitor, Traffic Analyzer, • Traffic Analysis Period : Daily, Weekly, Monthly, • Website History

WAN :
Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP, DMZ, DDNS, NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE relay

LAN :
DHCP Server, IGMP Snooping, IPTV, Manually Assign IP Address

Wireless : MU-MIMO, WiFi MAC Address Filter

User Interface :
WEB: ASUSWRT, APP: ASUS Router APP

Administration :
Configuration Backup and Restore, Diagnosis tools, Feedback System, System Log, New Device Connect Notification, Login Captcha, Connection Diagnosis, Auto Firmware Update
