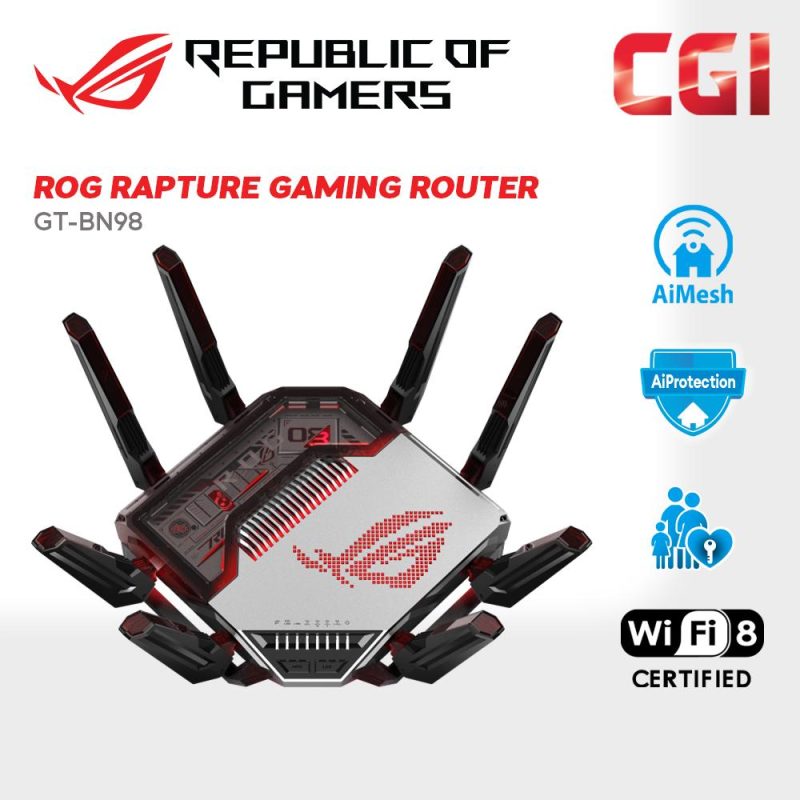

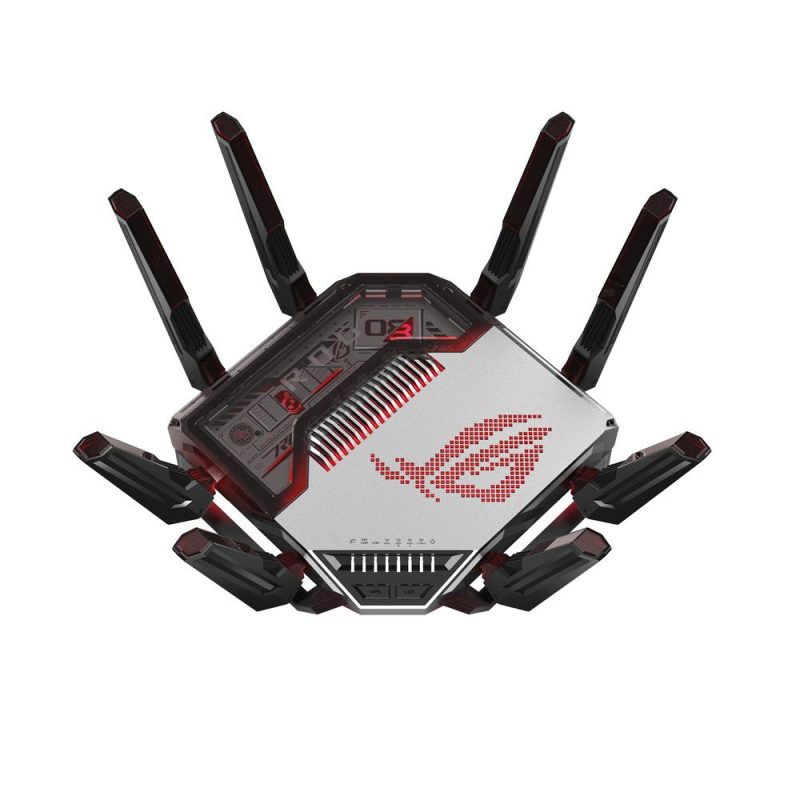

[PREORDER] Asus ROG Rapture GT-BN98 Quad-Band WiFi 8 25000 Mbps AiProtection AiMesh Gaming Router

Model Name : GT-BN98
Network Standard :
WiFi 8 (802.11bn) (Draft)
IEEE 802.11bn (Draft)
IPv4
IPv6

Product Segment
BN25000 ultimate BN performance : 1376+5764+5764+11529 Mbps

WiFi Data Rate :
2.4GHz BN: 4×4 (Tx/Rx) 4096 QAM 20/40MHz, up to 1376Mbps
5GHz-1 BN: 4×4 (Tx/Rx) 4096 QAM 20/40/80/160MHz, up to 5764Mbps
5GHz-2 BN: 4×4 (Tx/Rx) 4096 QAM 20/40/80/160MHz, up to 5764Mbps
6GHz BN: 4×4 (Tx/Rx) 4096 QAM 20/40/80/160/320MHz, up to 11529Mbps

Antenna
External antenna x 8

Transmit / Receive :
2.4GHz 4×4
5GHz-1 4×4
5GHz-2 4×4
6GHz 4×4

Processor : 2.6GHz quad-core processor

Memory : 256 MB Flash and 2 GB RAM

Boosts Speed
OFDMA (Orthogonal Frequency Division Multiple Access)
4096-QAM high data rate
20/40/80/160/320 MHz bandwidth

Operating Frequency :
2.4 GHz
5 GHz
6 GHz

Operating Mode
Router(AiMesh router), AiMesh node, Access point, Repeater, Media bridge

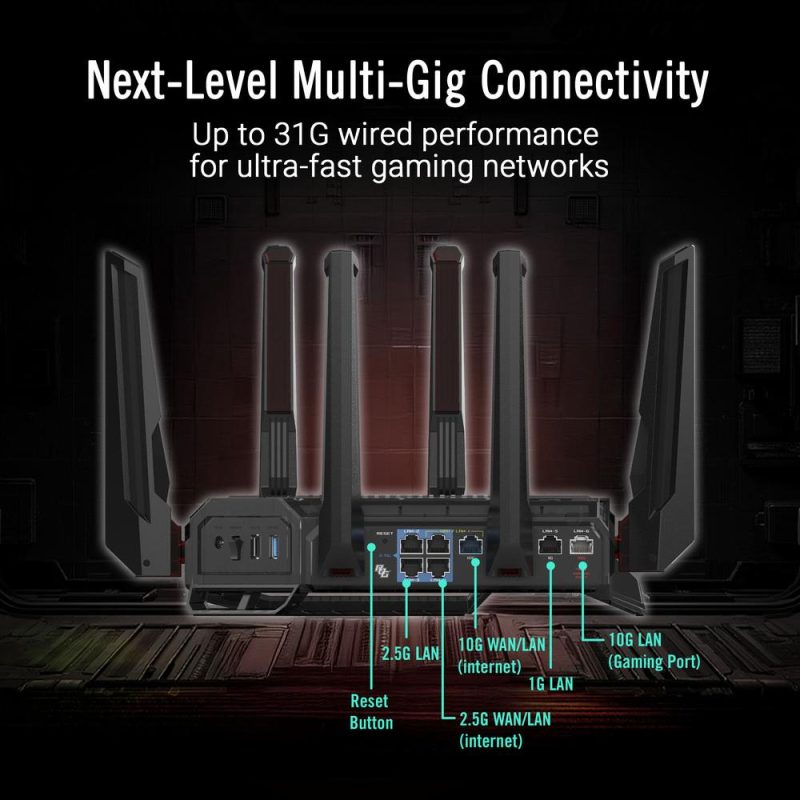

I/O Ports :
1 x 10Gbps for WAN/LAN
1 x 2.5Gbps for WAN/LAN
1 x 10Gbps for LAN
3 x 2.5Gbps for LAN
1 x RJ45 10/100/1000Mbps for LAN
1 x USB 3.2 Gen1
1 x USB 2.0

Buttons :
WPS Button
Reset Button
Power Switch
LED control Button

LED Indicator :
WAN(Internet)
10G LAN
LAN
6GHz
5GHz-1
5GHz-2
2.4GHz
Power

Power Supply
AC Input : 110V~240V(50~60Hz)
DC Output : 12V with max. 5A current / 19.5V with max. 3.33A current

Package Content :
GT-BN98 Quad-band gaming router
RJ-45 cable
Power adapter
Quick Start Guide
Warranty card

AiMesh
• Primary AiMesh Router
• AiMesh Node

Game
Game Boost / Acceleration
Mobile Game Mode
Gear Accelerator
GTNet
ROG_First
OpenNAT (Game Profile)
Gaming Port
Gaming Network

Parental Control
"Allow you to block access to unwanted websites and apps."
Web & Apps Filters
Time Scheduling
Reward
Parental Control Customized Internet Schedule
• Maximum Parental Control Profile :
64
• Maximum Parental Control Content Filter Rule :
64

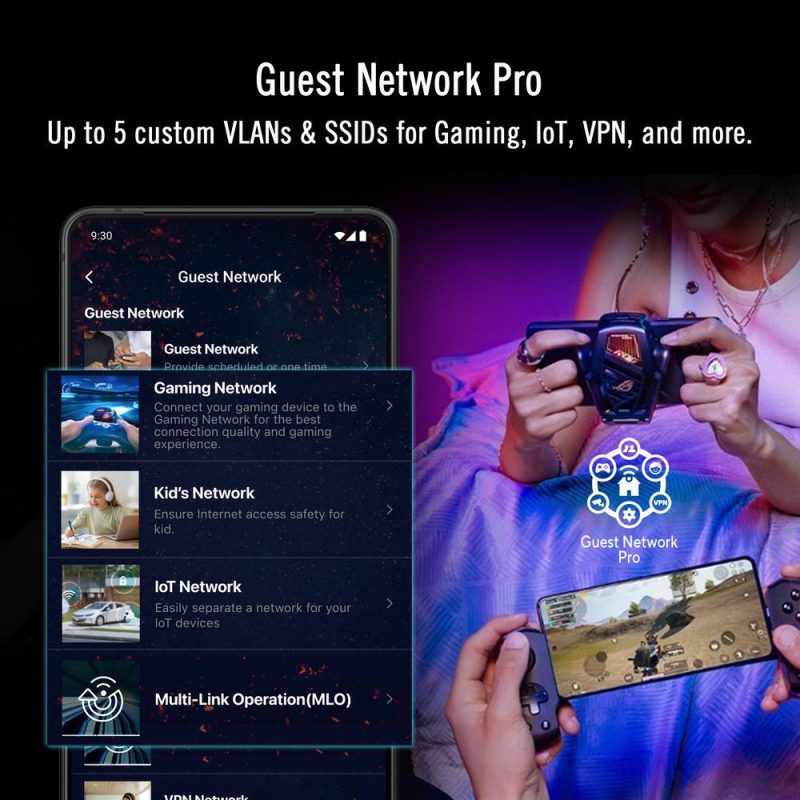

Guest Network
"You can create additional networks for different purposes, these networks are separate from the main network domain, to provide enhanced security, and create comprehensive network environment with customized settings."
Support Guest Network Pro
• Maximum Guest Network Rule :
2.4 GHz + 5 GHz +6 GHz : 5
Guest Network Connection time limit
Guest Network Pro Encryption :
Open system, WPA/WPA2/WPA3 Personal
VPN WiFi
Time Scheduling: One Time Access
Time Scheduling: Weekly Schedule
AP Isolate
AiMesh Assign
Bandwidth Limiter
Client List
DNS Server Connection

Security
AiProtection
VPN
WiFi Encryption :
WPA/WPA2/WPA3 Personal
WPA/WPA2/WPA3 Enterprise
Open System & OWE
WPS
Let's Encrypt
DNS-over-TLS
SSH
Security Scan
Firewall
• Maximum Firewall Keyword Filter :
64
• Maximum Firewall Network Service Filter :
32
• Maximum Firewall URL Filter :
64

AiProtection :
AiProtection
• Router Security Assessment
• Malicious Sites and Infected Device Blocking
• Two-Way IPS
• Advertisement Blocking
• Tracker Blocking

VPN :
Instant Guard
VPN Client L2TP
VPN Client Open VPN
VPN Client PPTP
VPN Client WireGuard
VPN Server IPSec
VPN Server Open VPN
VPN Server PPTP
VPN Server WireGuard
VPN Fusion
Support Surfshark
Support Nord VPN
Traffic Control
Adaptive QoE
• Bandwidth Limiter
— Maximum Bandwidth Limiter Rule :
32

Traffic Monitor :
• Real-time Traffic Monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor
Traffic Analyzer
• Traffic Analysis Period :
Daily, Weekly, Monthly
• Website History

WAN:
Internet Connection Type :
Automatic IP, Static IP, PPPoE, PPTP, L2TP
Dual WAN
WAN Aggregation
3G / 4G LTE Dongle
4G / 5G Auto Mobile Tethering
Port Forwarding
• Maximum Port Forwarding Rule :
64
Port Triggering
• Maximum Port Triggering Rule :
32
DMZ
DDNS
NAT Passthrough :
PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay

LAN :
DHCP Server
IPTV
LAN Link Aggregation
Manually Assign IP Address
• Maximum Manually Assign IP Address Rule :
128
Wake on LAN (WOL)

Wireless :
MU-MIMO
UTF-8 SSID
WiFi MAC Address Filter
• Maximum MAC Filters :
64
Wireless Scheduler
WiFi insight
Airtime Fairness
RADIUS Client

USB application :
4G / 5G Auto Mobile Tethering
File System :
HFS+, NTFS, vFAT, ext2, ext3, ext4
Safely Remove Disk
Media Server
Samba Server
FTP Server
Shared Folder Privileges

User Interface :
WEB: ASUSWRT
APP: ASUS Router APP
Operating system :
ASUSWRT

Administration:
Configuration Backup and Restore
Diagnosis Tools
Feedback System
System Log
New Device Connect Notification
Login Captcha
Connection Diagnosis
Auto Firmware Update
