Picture / Display
Panel Size: 34 inch / 86.36 cm
Aspect Ratio: 21:9
LCD Panel Type: VA LCD
Backlight Type: W-LED system
Pixel Pitch: 0.23175 x 0.23175 mm
Optimum Resolution: 3440 x 1440 @ 60Hz
Brightness: 300 cd/m²
Display Colors: 1.07B (10 bits)
Color Gamut (Typical): NTSC 104%, sRGB 120%
Contrast Ratio (Typical): 3500:1
SmartContrast: 50,000,000:1
Response Time (Typical): 4 ms (Gray to Gray)
Viewing Angle: 178° (H) / 178° (V) @ C/R > 10
Picture Enhancement: SmartImage
Maximum Resolution: 3440 x 1440 @ 100Hz (HDMI), 3440 x 1440 @ 120Hz (DP/USB-C)

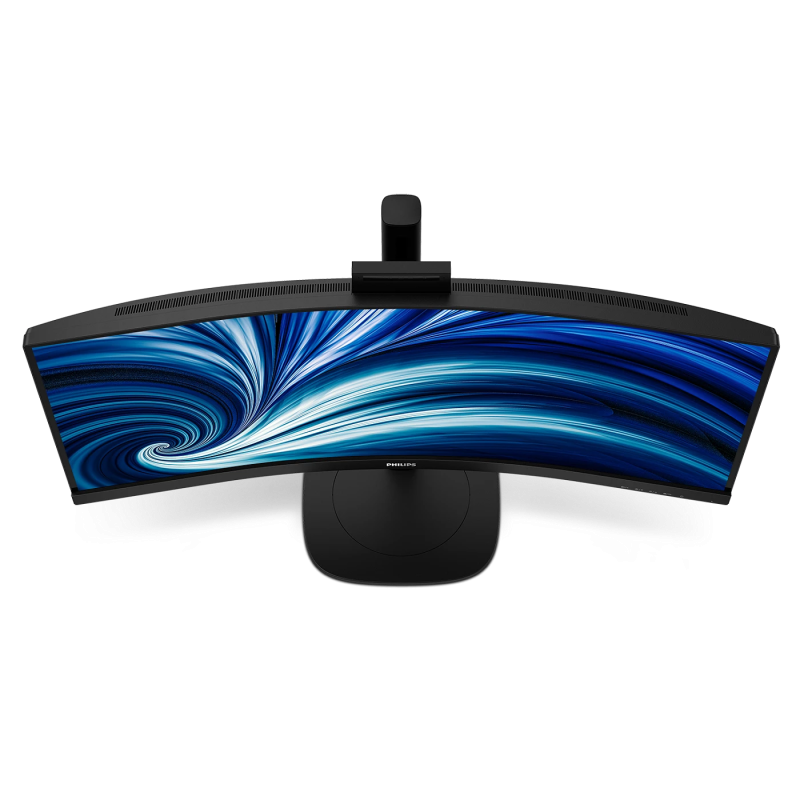

Effective Viewing Area: 797.22 (H) x 333.72 (V) mm, 1500R curvature
Scanning Frequency: HDMI 30–160 kHz (H) / 48–100 Hz (V), DP/USB-C 30–190 kHz (H) / 48–120 Hz (V)
sRGB: Yes
SoftBlue: Yes
Flicker-Free: Yes
Pixel Density: 110 PPI
Display Screen Coating: Anti-Glare, 3H, Haze 25%
EasyRead: Yes
Adaptive Sync: Yes
HDR: HDR10 supported
EyeSafe: Yes
Connectivity

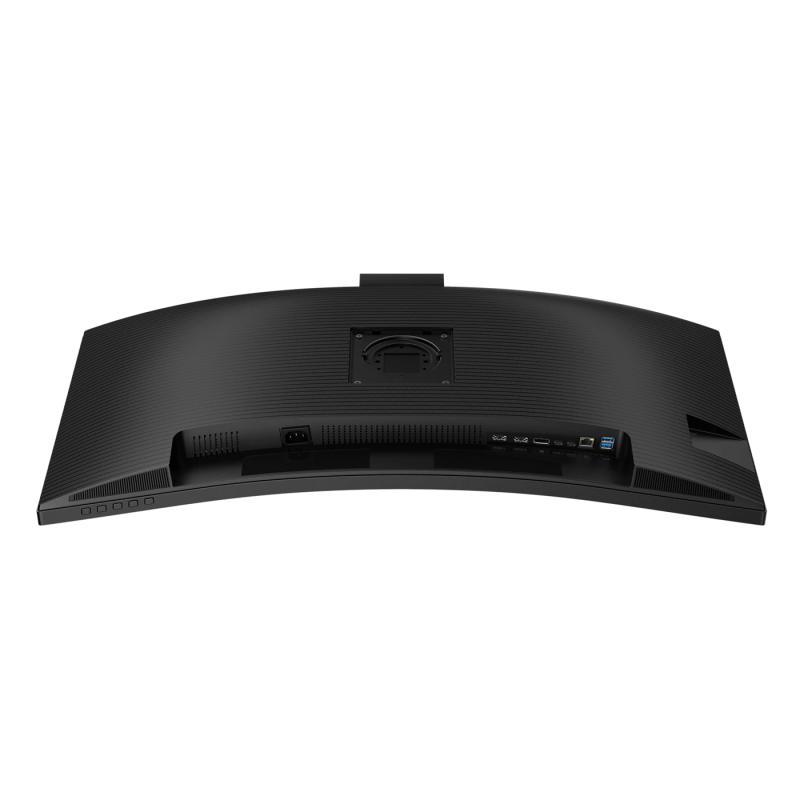

Signal Input: HDMI 2.0 x2, DisplayPort 1.4 x1, USB-C x1 (upstream, DP Alt Mode, data, PD)
Sync Input: Separate Sync, Sync on Green
Audio In/Out: Audio out x1
RJ45: Ethernet LAN (10M/100M/1G)
HDCP: HDCP 1.4 (HDMI / DisplayPort / USB-C), HDCP 2.2 (HDMI / DisplayPort / USB-C)
HBR3: Yes
USB Hub: USB 3.2 Gen1 (5G), Upstream: USB-C1 (Full) / USB-C2, Downstream: USB-A x4 (x1 fast charge BC 1.2)
Power Delivery
Max Power Delivery: Up to 90W (5V/3A, 7V/3A, 9V/3A, 10V/3A, 12V/3A, 15V/3A, 20V/3.25A, 20V/4.5A)
USB PD Version: 3.0
Convenience
Built-in Speakers: 5W x2
Plug & Play Compatibility: DDC/CI, Mac OS, Windows 11 / 10
User Convenience: SmartImage, Input, Brightness, Menu, Power On/Off
OSD Languages: Brazilian Portuguese, Czech, Dutch, English, French, Finnish, German, Greek, Hungarian, Italian, Japanese, Korean, Portuguese, Polish, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, Turkish, Ukrainian
Other Convenience: Kensington lock, VESA mount (100 x 100 mm)
Control Software: SmartControl
MultiView: 2 devices, PIP / PBP mode
Built-in Webcam: 5.0 MP camera with microphone and LED indicator (Windows Hello)
Webcam Tilt Function: Yes, ±30°
SmartKVM: Yes (USB-C1 / USB-C2)
Stand

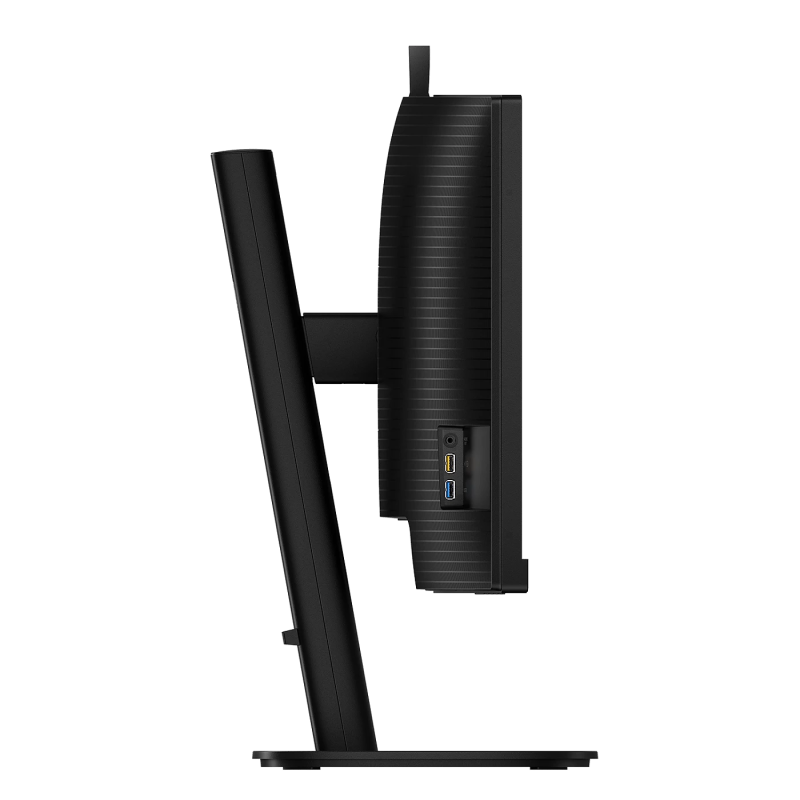

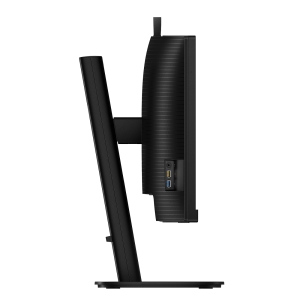

Height Adjustment: 180 mm
Swivel: ±180°
Tilt: -5° / +30°
Power
ECO Mode: 21.3 W (typ.)
Power Supply: Built-in, 100–240 VAC, 50–60 Hz
Off Mode: 0.3 W (typ.)
On Mode: 28.26 W (typ., EnergyStar 8.0 test method)
Standby Mode: 0.3 W (typ.)
Power LED Indicator: Operation – White, Standby – White (blinking)
Dimensions
Packaging (W x H x D): 930 x 525 x 188 mm
Product Without Stand: 807 x 369 x 107 mm
Product With Stand (Max Height): 807 x 602 x 287 mm
Weight
Product With Packaging: 15.35 kg
Product With Stand: 10.401 kg
Product Without Stand: 7.82 kg
Operating Conditions
Altitude: Operation up to 12,000 ft (3,658 m), Non-operation up to 40,000 ft (12,192 m)
Temperature Range (Operation): 0°C to 40°C
Relative Humidity: 20%–80%
Temperature Range (Storage): -20°C to 60°C
MTBF: 70,000 hrs (excluding backlight)
Sustainability
Environmental and Energy: EPEAT, Energy Star, RoHS
Post Consumer Recycled Plastic: 85%
Recyclable Packaging Material: 100%
Specific Substances: Mercury free, PVC / BFR free housing
Compliance and Standards
Regulatory Approvals: CB, CE Mark, ETL, CEC, TCO Certified, TCO Certified Edge, EAC, EAC ROHS, MEPS, UKCA, EMF, FCC, ICES-003, TUV/GS, TUV Ergo, EyeSafe Certified 2.0, TÜV Rheinland Low Blue Light (Hardware Solution)
Cabinet
Finish: Texture
Foot: Black
Front Bezel: Black
Rear Cover: Black
