Connectivity
• Signal Input: VGA x 1, HDMI 1.4 x 1
• Sync Input: Separate Sync
• Audio (In/Out): Audio out, Audio-in
• HDCP: HDCP 1.4 (HDMI)
Picture/Display
• Panel Size: 23.8 inch / 60.5 cm
• Aspect ratio: 16:9
• LCD panel type: IPS technology
• Backlight type: W-LED system
• Pixel pitch: 0.2745 x 0.2745 mm
• Brightness: 250 cd/m2
• Display colors: 16.7 M
• Contrast ratio (typical): 1300:1
• SmartContrast: Mega Infinity DCR
• Response time (typical): 4 ms (Gray to Gray)*
• Viewing angle: 178o (H) / 178o (V), @ C/R > 10
• Picture enhancement: SmartImage
• Maximum resolution: 1920 x 1080 @ 100 Hz*
• Effective viewing area: 527.04 (H) x 296.46 (V) mm
• Scanning Frequency: VGA: 30 KHz – 85 KHz (H) /
48 Hz – 60 Hz (V); HDMI: 30 KHz – 115 KHz (H) /
48 Hz – 100 Hz (V)
• sRGB
• Flicker-free
• Pixel Density: 92.56 PPI
• LowBlue Mode
• Display Screen Coating: Anti-Glare, 3H, Haze 25%
• MPRT: 1 ms
• EasyRead
• Adaptive sync
• Other convenience: Kensington lock, VESA mount
(100x100mm)

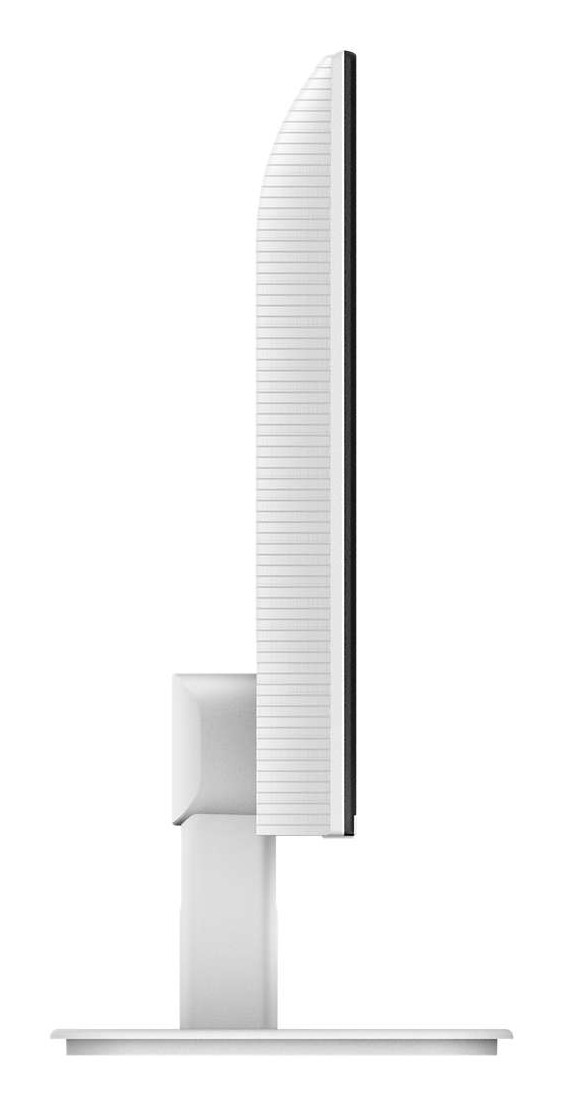

Stand
• Tilt: -5/20 degree
Power
• Power supply: External, 100-240VAC, 50-60Hz
• Off mode: 0.3 W (typ.)
• On mode: 15.2 W (typ.)
• Standby mode: 0.5 W (typ.)
• Power LED indicator: Operation – White, Standby
mode- White (blinking)
Dimensions
• Packaging in mm (WxHxD): 610 x 378 x 126 mm
• Product without stand (mm): 541 x 322 x 34 mm
• Product with stand(max height): 541 x 416 x
180 mm
Weight
• Product with packaging (kg): 4.55 kg
• Product with stand (kg): 2.51 kg
• Product without stand (kg): 2.23 kg
Operating conditions
• Altitude: Operation: +12,000ft (3,658m), Non-
operation: +40,000ft (12,192m)
• Temperature range (operation): 0 to 40 °C
• MTBF: 50,000 hrs (excluding backlight) hour(s)
• Relative humidity: 20%-80 %
• Temperature range (storage): -20 to 60 °C
Sustainability
• Environmental and energy: RoHS
• Recyclable packaging material: 100 %
• Specific Substances: Mercury free
Compliance and standards
• Regulatory Approvals: ETL, CEC, CB, CE Mark,
UKCA, EMF, FCC, ICES-003
Cabinet
• Color: White
• Finish: Textured
