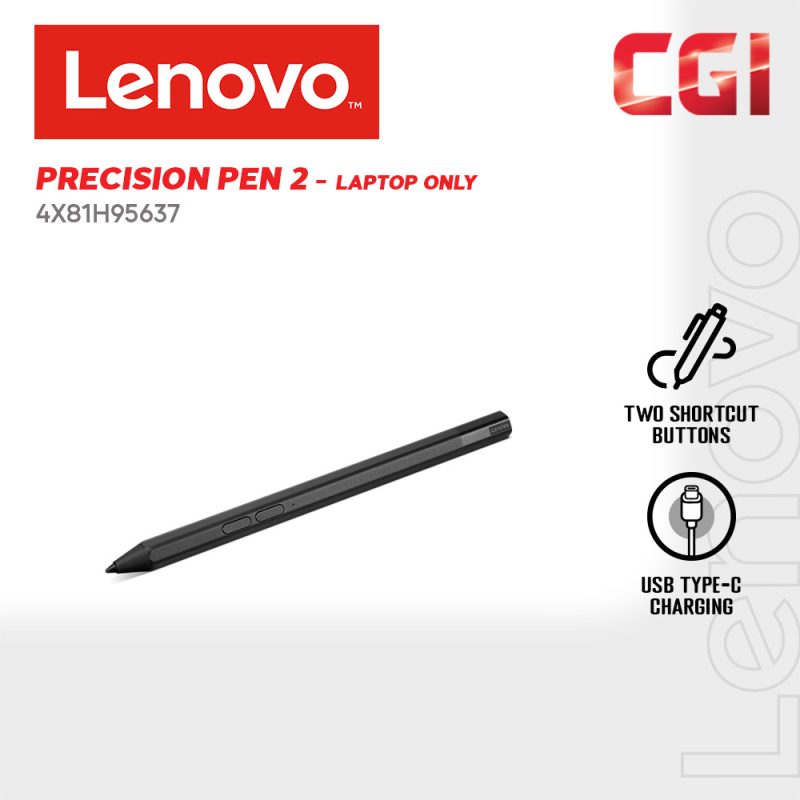

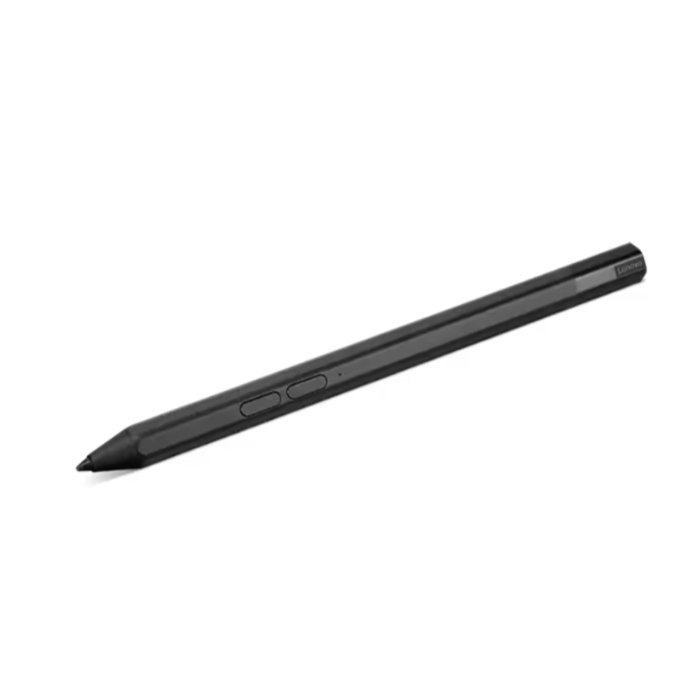

Lenovo Precision Pen 2 For Lenovo Laptop Only – 4X81H95637

General Mechanical

Brand: Lenovo Color: Black

Dimensions / Weight Power

Packed Dimensions: 247 x 100 x 36 mm Battery: Li-ion Polymer (non-replaceable)

Weight (with battery): ~15 g Supply Voltage: 4.4 – 5.25 V

Packed Weight: 100 g Supply Current: 100 mA

Input Rating Voltage: 4.4 V

Performance Battery

Pressure Resolution: Up to 4096 levels Battery Life: 246 – 1754 hours

Pen Diameter: 9.65 mm Charging Time: ~150 minutes

Length: 150 ±0.5 mm

Compatibility Operating Conditions

OS Requirement: Windows 10 Operating Temperature: 5°C – 40°C

Relative Humidity: 30% – 80%

Electrical Specifications Frequency

Pen Tip Output Voltage: AES 2.0/1.0: 1800 kHz ±5%

WGP Protocol: Nominal 20 V MPP 2.0: 18 – 210 kHz

MPP 2.0 Protocol: Nominal 20 V WGP: 86 – 400 kHz / 8 channels

AES 2.0 / 1.0 Protocol: Nominal 17 V

Power Management Storage Environment

Sleep Mode: ~10 minutes (no button use) Temperature: -10°C to 55°C

Power Off Mode: ~4 minutes (button pressed) Humidity: 30% – 80% (no condensation)

Warranty / Certification Package Contents

Warranty Type: Commercial Lenovo Precision Pen 2

Warranty Period: 1 Year User Guide

Certifications: CE, FCC, VCCI, RCM, NCC, Warranty Card

BSMI, KCC

Packaging

Package Type: Brown Box
