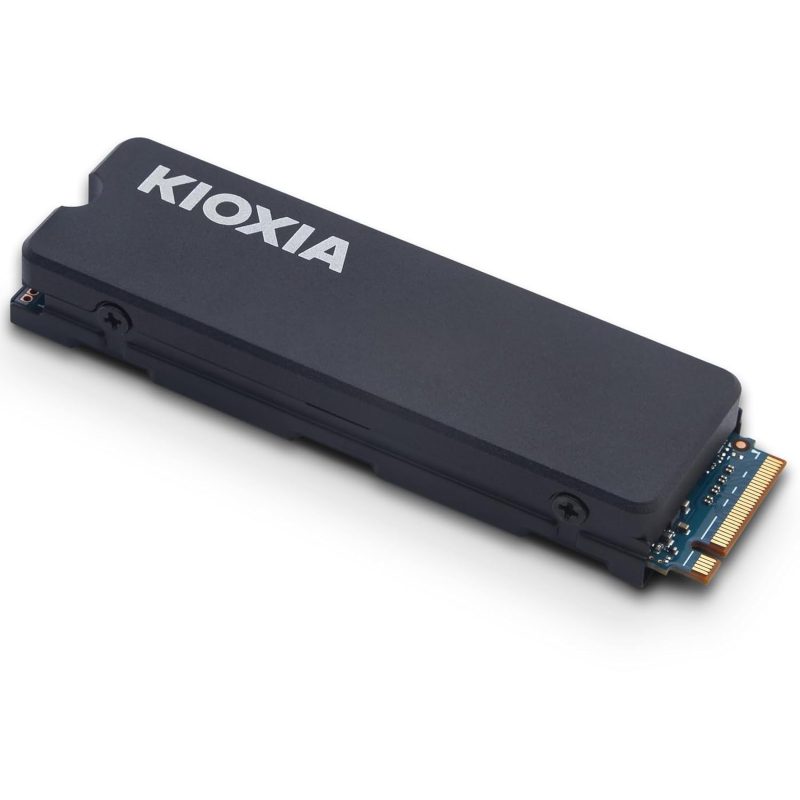

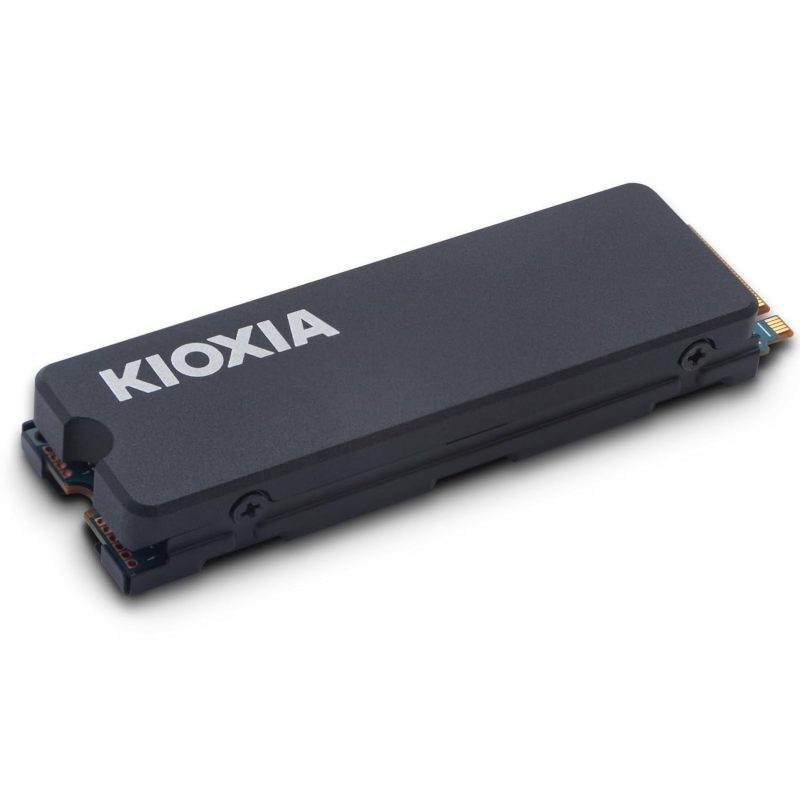

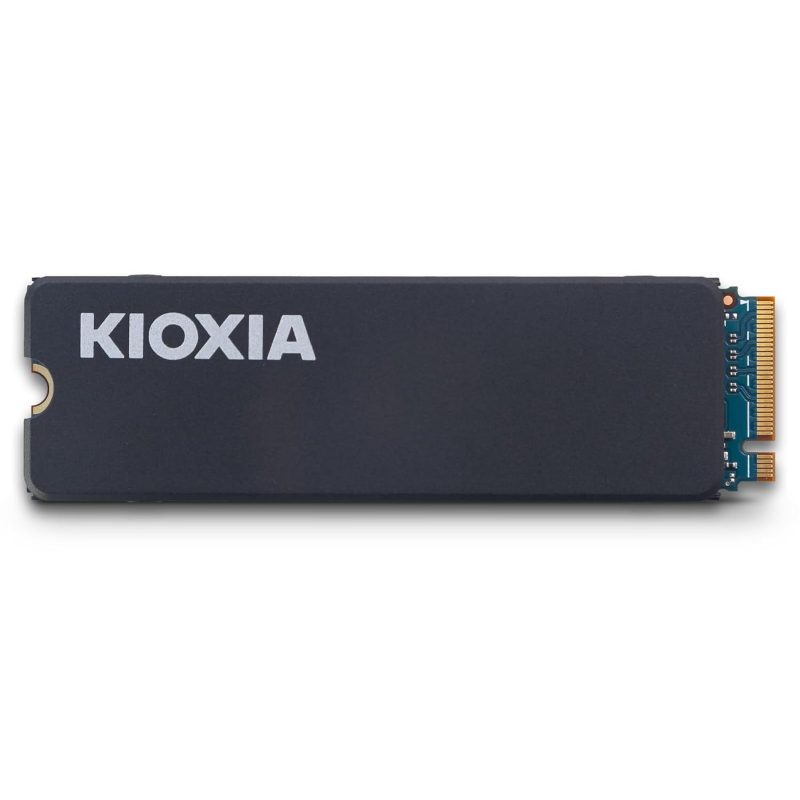

Kioxia Exeria 2TB NVMe SSD with Heatsink wDRAM PCIe4x4 – LSC11K2T04G8

Capacity / dimensions

• Capacity : 1,024GB, 2,048GB, 4,096GB

• Form Factor : M.2 Type 2280(Key M) with Heatsink

• Interface : PCI Express® Base Specification Revision 4.0 (PCIe®)

• Flash Memory type : BiCS FLASH™ TLC

• Interface Maximum Speed : 64 GT/s (PCIe® Gen4x4)

• Dimension (Max: LxWxH) : 80.65 x 24.70 x 11.20 mm

• Interface Protocol : NVM Express™ Base Specification 1.4

• Weight :

  1,024GB, 2,048GB: 45 g (typ.)
  4,096GB: 46 g (typ.)

Performance

• Max Sequential Read Speed*1 : 6,200 MB/s

• Max Sequential Write Speed*1 :

  1,024GB, 2,048GB: 4,900 MB/s
  4,096GB: 4,800 MB/s

• Max Random Read Speed*2 :

  1,024GB: 850,000 IOPS
  2,048GB: 830,000 IOPS
  4,096GB: 810,000 IOPS

• Max Random Write Speed*2 :

  1,024GB: 440,000 IOPS
  2,048GB, 4,096GB: 450,000 IOPS

• Endurance: TBW (Total Bytes Written)*3 :

  1,024GB: 600 TB
  2,048GB: 1,200 TB
  4,096GB: 2,400 TB

• MTTF : 1.5 million hours

Operating environment / protection performance

• Operating Temperature : 0 ℃ (Ta) to 85 ℃ (TSMART)

• Storage Temperature : -40 ℃ to 85 ℃

• Certification : RoHS compliant*5

• Shock Resistance : 9.806 km/s2 {1,000 G} 0.5 ms half sine wave

• Vibration : 196 m/s2 {20 G} Peak, 10~2,000 Hz, (20 min / Axis) x 3 Axis

• Supply Voltage : 3.3 V ±5 %

• Power Consumption :

  1,024GB:
  PS3: 60 mW (typ.)
  PS4: 5 mW (typ.)

  2,048GB, 4,096GB:
  PS3: 100 mW (typ.)
  PS4: 10 mW (typ.)

• Power Consumption (Active) :

  1,024GB: 7.7 W (typ.)
  2,048GB, 4,096GB: 7.8 W (typ.)

Compatibility

• Connector Type : M.2 M key Socket

• Target Applications : Desktop PC and PlayStation5

Others

• Services and Support : Up to 5-year manufacturer's warranty*4

• Performance Optimization : TRIM, Idle Time Garbage Collection, Heatsink

Product Info

• 1,024GB :

  PN: LSC11K1T02G8
  EAN: 4582563858640

• 2,048GB :

  PN: LSC11K2T04G8
  EAN: 4582563858657

• 4,096GB :

  PN: LSC11K4T09G8
  EAN: 4582563858664
