| Form factor | 2.5 inch |
| Interface | SATA Rev. 3.0 (6Gb/s) – with backwards compatibility to SATA Rev. 2.0 (3Gb/s) |
| Capacities1 | 480GB, 960GB, 1.92TB, 3.84TB, 7.68TB |
| NAND | 3D TLC |
| Self-Encrypting Drive (SED) | AES 256-bit Encryption |
| Sequential read/write: (DC500R) | 480GB – 555MBs/500MBs 960GB – 555MBs/525MBs 1.92TB – 555MBs/525MBs 3.84TB – 555MBs/520MBs 7.68TB – 545MBs/490MBs |
| Steady-state 4k read/write: (DC500R) | 480GB – 98,000/12,000 IOPS 960GB – 98,000/20,000 IOPS 1.92TB – 98,000/24,000 IOPS 3.84TB – 98,000/28,000 IOPS 7.68TB – 99,000/25,000 IOPS |
| Sequential read/write: (DC500M) | 480GB – 555MBs/520MBs 960GB – 555MBs/520MBs 1.92TB – 555MBs/520MBs 3.84TB – 555MBs/520MBs |
| Steady-state 4k random read/write: (DC500M) | 480GB – 98,000/58,000 IOPS 960GB – 98,000/70,000 IOPS 1.92TB – 98,000/75,000 IOPS 3.84TB – 98,000/75,000 IOPS |
| Quality of service (latency)2,3,4 | – TYP read/write: <500 µs / <2 ms |
| Hot-plug capable | |
| Static and dynamic wear levelling | |
| Enterprise SMART tools | Reliability tracking, usage statistics, life remaining, wear levelling, temperature |
| Power loss protection | Tantalum capacitors |
| Endurance | DC500R: 480GB – 438TBW6 (0.5 DWPD)7 960GB – 876TBW6 (0.5 DWPD)7 1.92TB – 1752TBW6 (0.5 DWPD)7 3.84TB – 3504TBW6 (0.5 DWPD)7 7.68TB – 9345TBW6 (0.6 DWPD)7 DC500M: |
| Power consumption | Idle: 1.3W Average read: 1.45W Average write: 4.5W Max read: 1.65W Max write: 7.5W |
| Storage temperature | -40°C ~ 85°C |
| Operating temperature | 0°C ~ 70°C |
| Dimensions | 69.9mm x 100mm x 7mm |
| Weight | 92.34g |
| Vibration operating | 2.17G Peak (7–800Hz) |
| Vibration non-operating | 20G Peak (10–2000Hz) |
| MTBF | 2 million hours |
| Warranty/support5 | Limited 5-year warranty with free technical support |

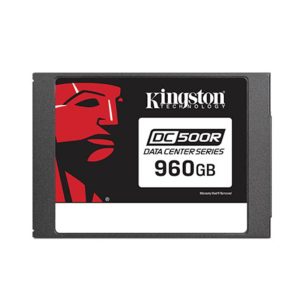

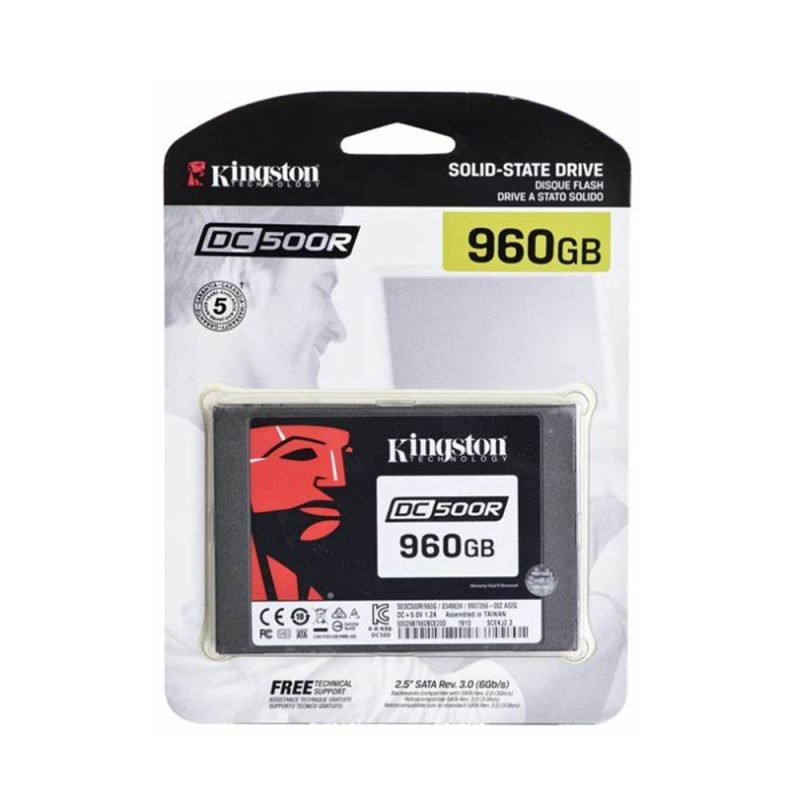

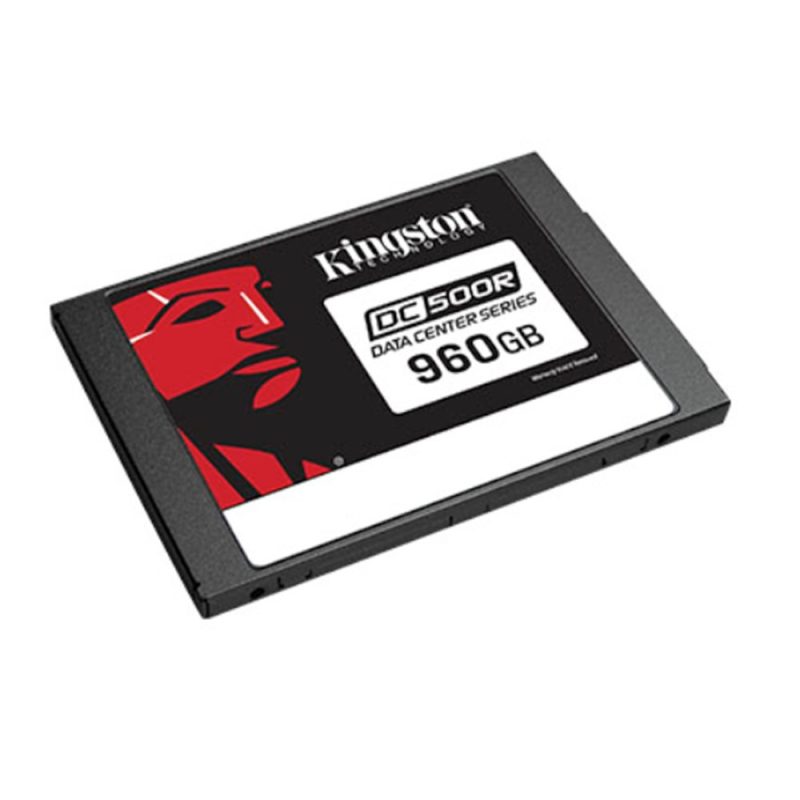

Kingston 960GB DC500 2.5″ 3D TLC Enterprise 6Gbps SATA SSD – SEDC500R/960G
Original price was: RM699.RM635Current price is: RM635.- Optimised for read-intensive applications
- Endurance at 0.5 DWPD
- Consistent IOPS, reliable QoS and low latency
- Configurable over-provisioning
- On-board Power Loss Protection (PLP)
- Part Number: SEDC500R/960G
10 in stock
| Weight | 1 kg |
|---|---|
| Dimensions | 10 × 7 × 1 cm |
