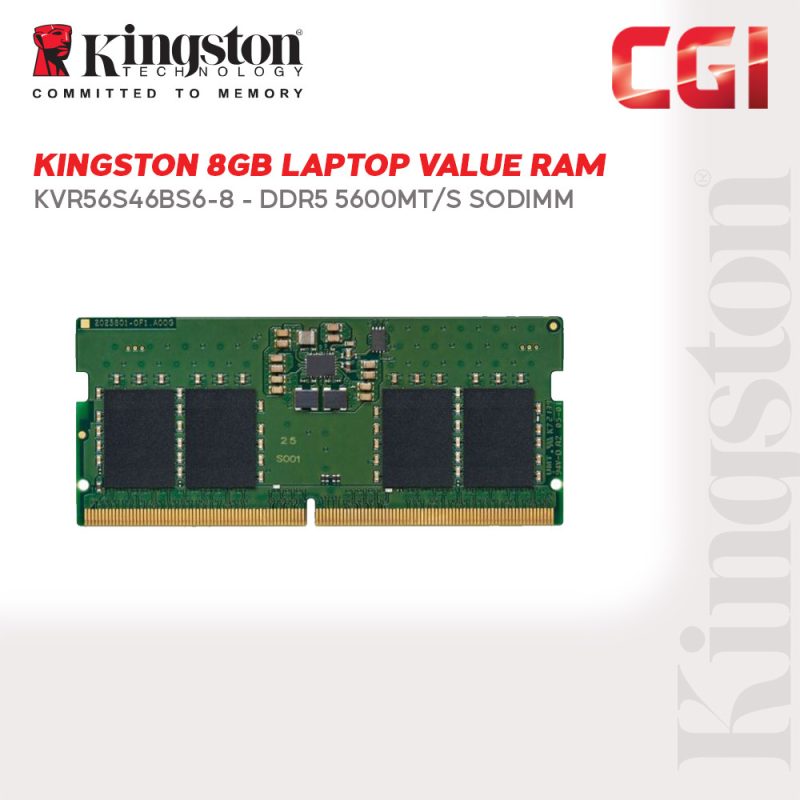

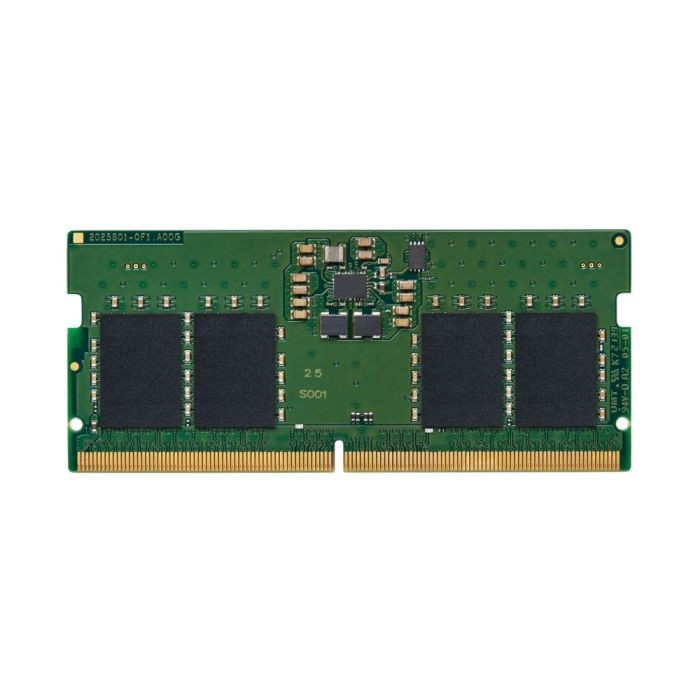

This document describes ValueRAM's KVR56S46BS6-8 is a 1G x 64-bit (8GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 1Rx16, memory module, based on four 1G x 16-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 262-pin SODIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:
• Power Supply: VDD = 1.1V Typical
• VDDQ = 1.1V Typical
• VPP = 1.8V Typical
• VDDSPD = 1.8V to 2.0V
• On-Die ECC
• PCB: Height 1.18” (30.00mm)
• RoHS Compliant and Halogen-Free
1 in stock
CL(IDD) : 46 cycles
Row Cycle Time (tRCmin) : 48ns(min.)
Refresh to Active/Refresh Command Time (tRFCmin) : 295ns(min.)
Row Active Time (tRASmin) : 32ns(min.)
UL Rating : 94 V – 0
Operating Temperature : 0o C to +85o C
Storage Temperature : -55o C to +100o C
| Weight | 0.50 kg |
|---|---|
| Dimensions | 15.00 × 8.00 × 2.00 cm |
