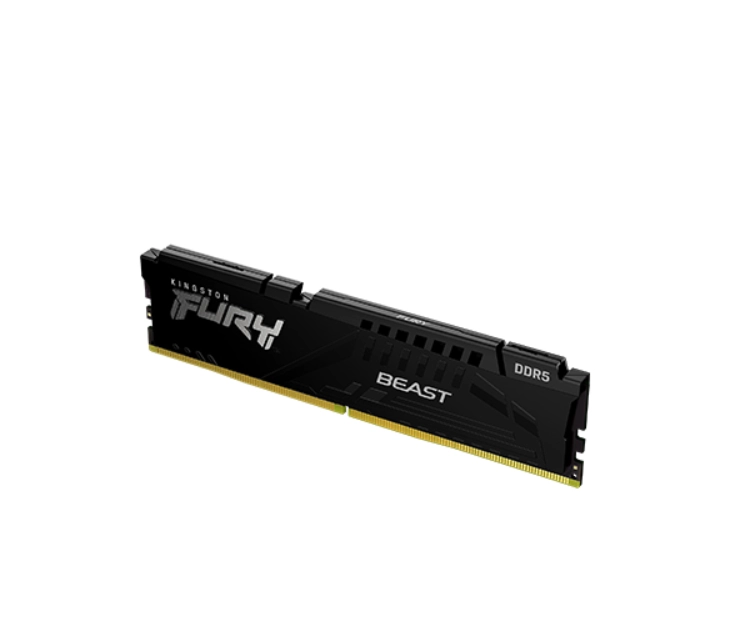

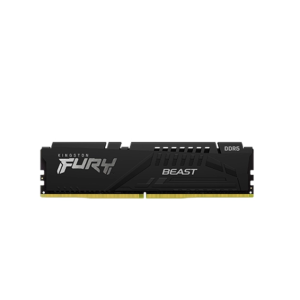

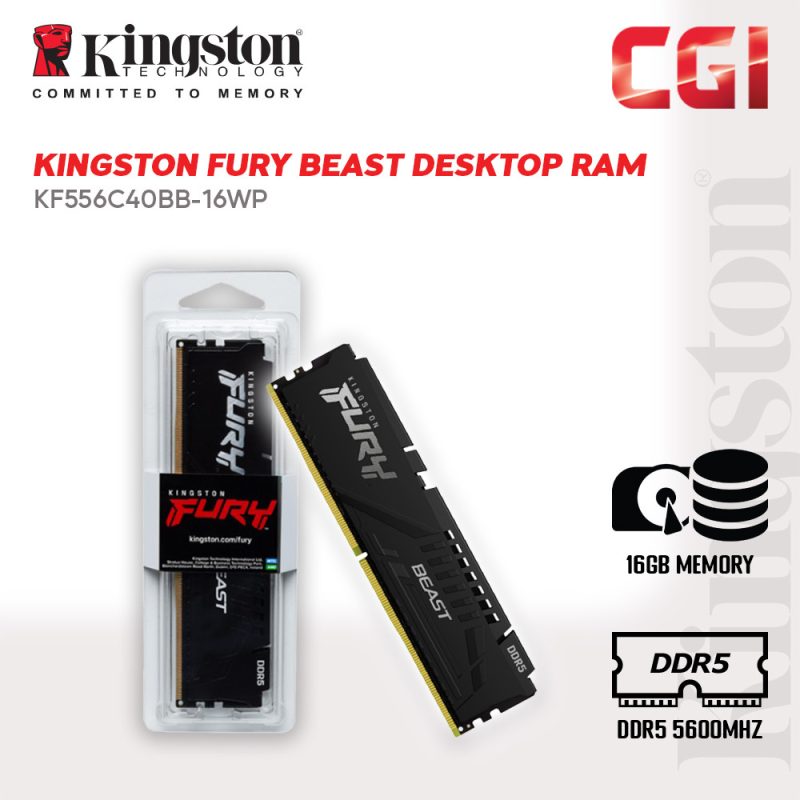

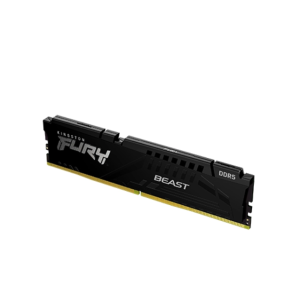

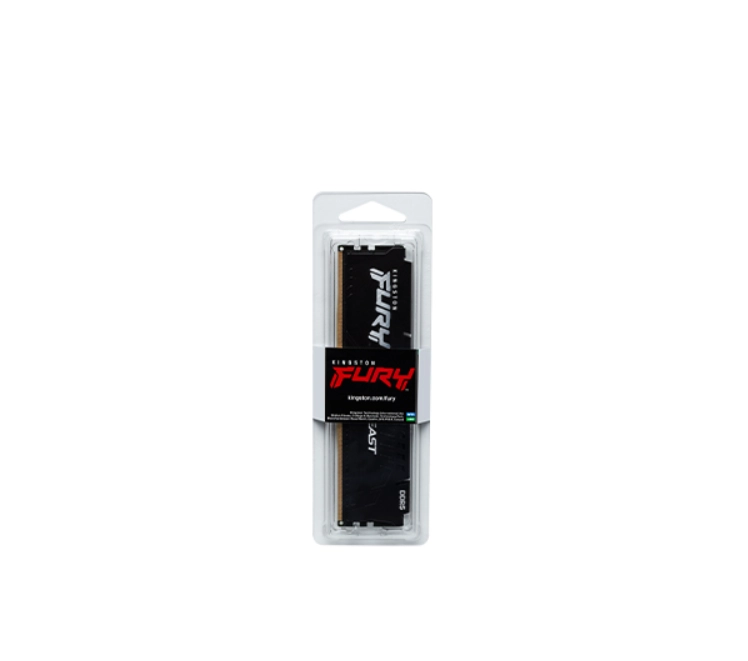

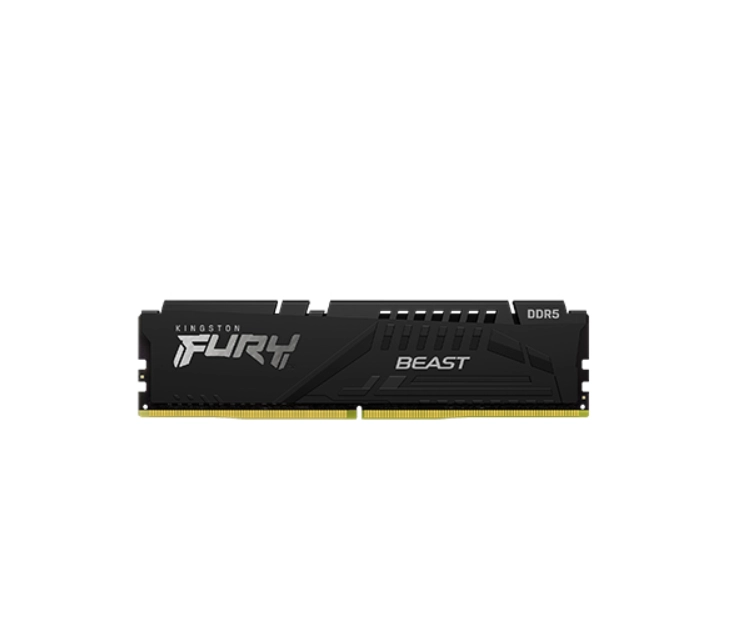

Kingston FURY KF556C40BB-16 is a 2G x 64-bit (16GB) DDR5-5600 CL40 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 2G x 8-bit FBGA components per module. The module supports Intel® Extreme Memory Profiles (Intel® XMP) 3.0. Each module has been tested to run at DDR5-5600 at a low latency timing of 40-40-40 at 1.25V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers.
2 in stock
SPECIFICATIONS
CL (IDD) 40 cycles
Row Cycle Time (tRCmin) 48 ns (min)
Refresh to Active/Refresh Command Time (tRFCmin) 295 ns (min)
Row Active Time (tRASmin) 32 ns (min)
UL Rating 94 V–0
Operating Temperature 0°C to +85°C
Storage Temperature –55°C to +100°C
FEATURES
Power Supply VDD = 1.1V Typical
VDDQ = 1.1V Typical
VPP = 1.8V Typical
VDDSPD = 1.8V to 2.0V
On-Die ECC
Height 1.37" (34.9mm) with heatsink
| Weight | 0.80 kg |
|---|---|
| Dimensions | 18.00 × 5.00 × 6.00 cm |
