Category Specification Details CPU Support LGA1700 socket: Support for 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® Processors. L3 cache varies with CPU. Chipset Intel® B760 Express Chipset Memory • 2 x DDR4 DIMM sockets (up to 64GB total; 32GB per DIMM)• Dual channel architecture• Supports DDR4 3200/3000/2933/2666/2400/2133 MT/s• Support for ECC Un-buffered & non-ECC Un-buffered modules• Support for Extreme Memory Profile (XMP) Onboard Graphics • 1 x D-Sub (Max 1920×1200@60 Hz)• 1 x HDMI 2.1 (Max 4096×2160@60 Hz)• HDCP 2.3 support Audio • Realtek® Audio CODEC (High Definition Audio)• 2/4/5.1/7.1-channel support• S/PDIF Out support LAN Realtek® GbE LAN chip (1 Gbps/100 Mbps) Expansion Slots • CPU: 1 x PCIe 4.0 x16 slot• Chipset: 1 x PCIe 3.0 x1 slot Storage Interface • CPU: 1 x M.2 (PCIe 4.0 x4/x2, Type 2280) (M2A_CPU)• Chipset: 1 x M.2 (PCIe 4.0 x4/x2, Type 2280) (M2P_SB)• 4 x SATA 6Gb/s connectors• RAID 0, 1, 5, 10 support for SATA USB • Rear Panel: 4 x USB 3.2 Gen 1, 2 x USB 2.0/1.1• Internal Headers: 2 x USB 3.2 Gen 1, 4 x USB 2.0/1.1 Back Panel I/O 2x USB 2.0, 1x D-Sub, 1x HDMI, 4x USB 3.2 Gen 1, 1x RJ-45, 3x Audio Jacks Internal Connectors 24-pin/8-pin power, 1x CPU Fan, 2x System Fan, 1x RGB LED, 2x M.2, 4x SATA, 1x TPM header, 1x Serial port header, 1x Clear CMOS H/W Monitoring Voltage, Temperature, Fan speed, Water cooling flow rate, Fan fail warning/control BIOS 128 Mbit flash, licensed AMI UEFI BIOS (PnP 1.0a, DMI 2.7, ACPI 5.0) Unique Features GIGABYTE Control Center (GCC), Q-Flash Software Norton® Internet Security (OEM), LAN bandwidth management OS Support Windows 11 64-bit, Windows 10 64-bit Form Factor Micro ATX (23.0cm x 21.5cm)

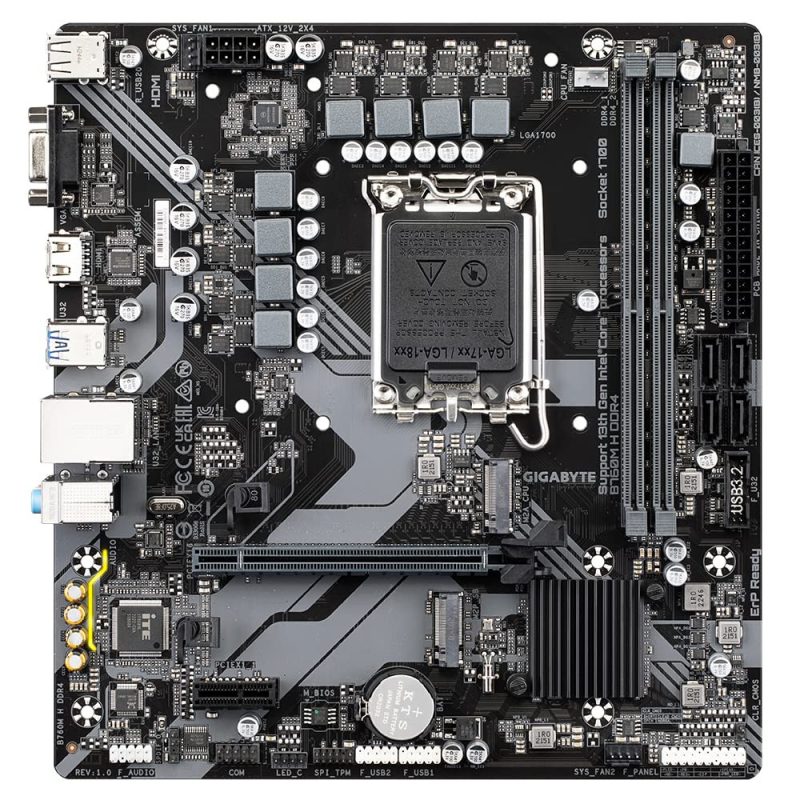

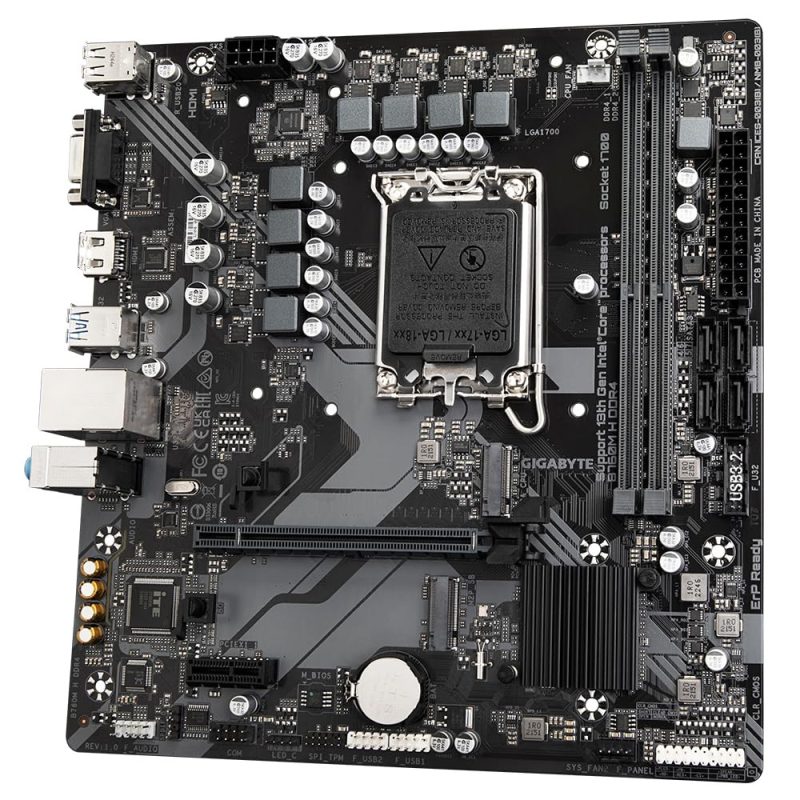

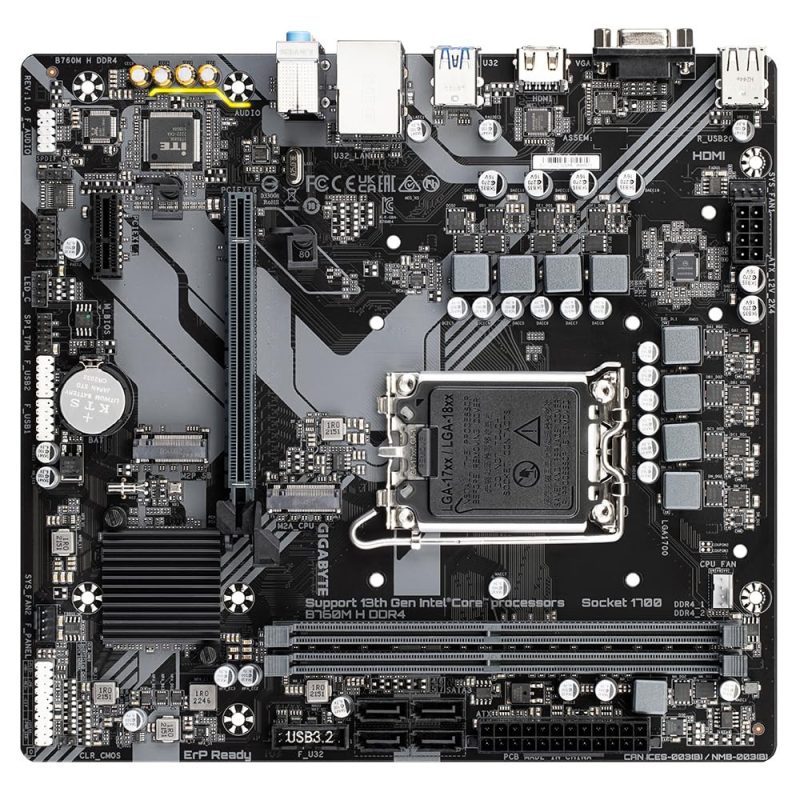

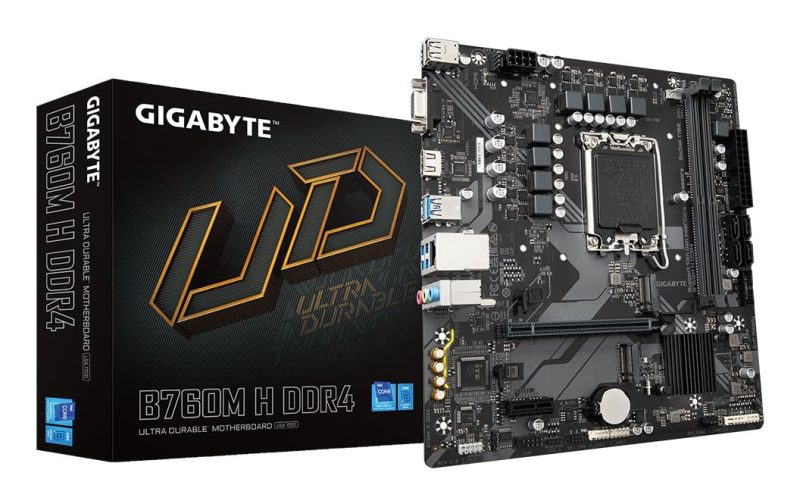

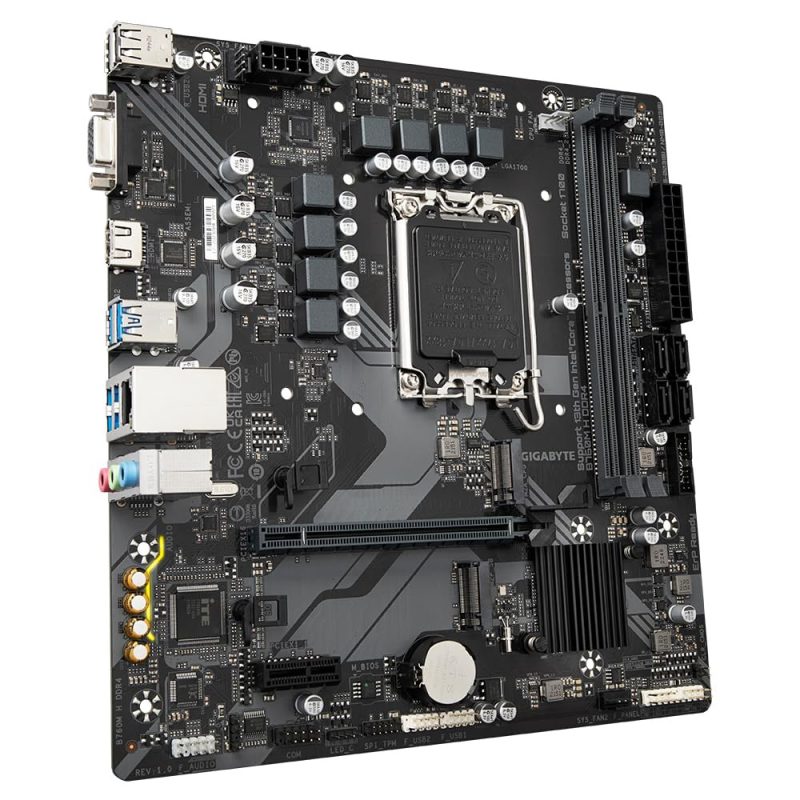

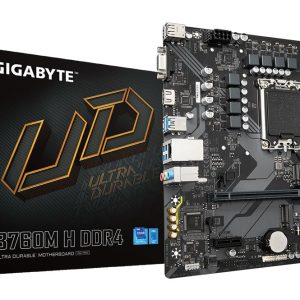

Gigabyte B760M H DDR4 LGA 1700 Integrated Graphics Micro ATX Motherboard
RM479 – RM2239- Supports Intel® Core™ 14th/ 13th /12th processors
- Unparalleled Performance：Hybrid 6+1+1 Phases Digital VRM Solution
- Dual Channel DDR4：2*DIMMs XMP Memory Module Support
- Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
- EZ-Latch：PCIe 4.0×16 Slot with Quick Release Design
- Fast Networks：GbE LAN
- Extended Connectivity：HDMI, D-Sub
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
| Weight | 1.00 kg |
|---|---|
| Dimensions | 10.00 × 20.00 × 5.00 cm |
| Bundle | Motherboard Only, i5-14400+MOBO, i5-14400F+MOBO, i7-14700+MOBO, i7-14700F+MOBO, i5-12400+MOBO |
