Name: Cooler Master Masterbox NR200P Mini ITX Mini DTX Black Color Casing - CGi-Store
SKU: CM-MCB-NR200P-KGNN-S00
Price: 199 MYR
Availability: OutOfStock

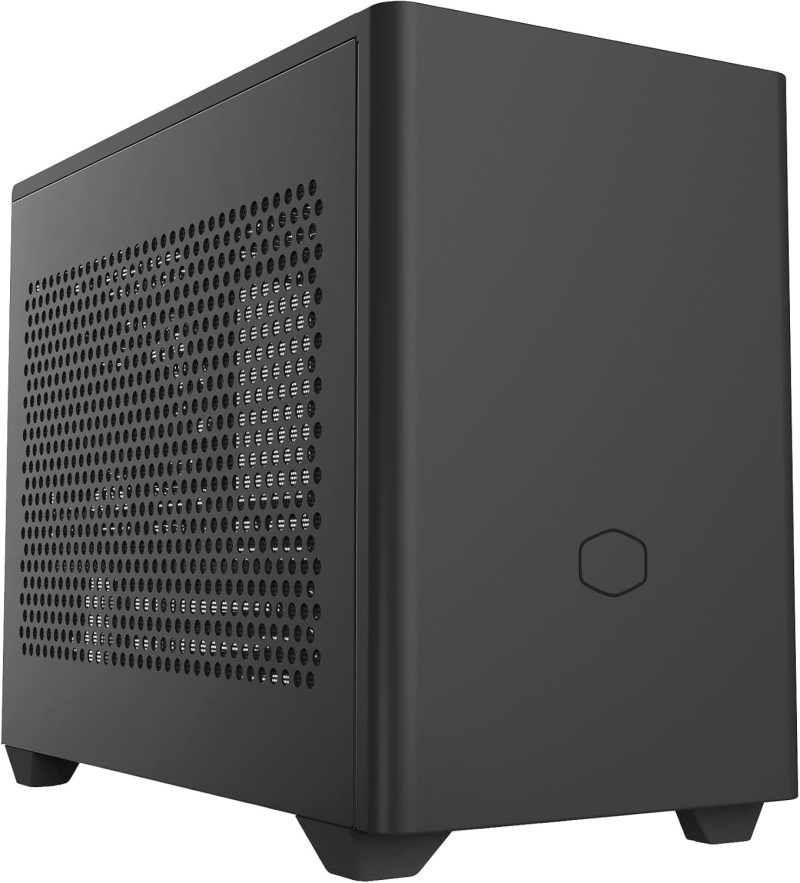

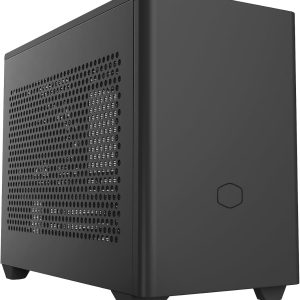

Cooler Master Masterbox NR200P Mini ITX Mini DTX Black Color Casing

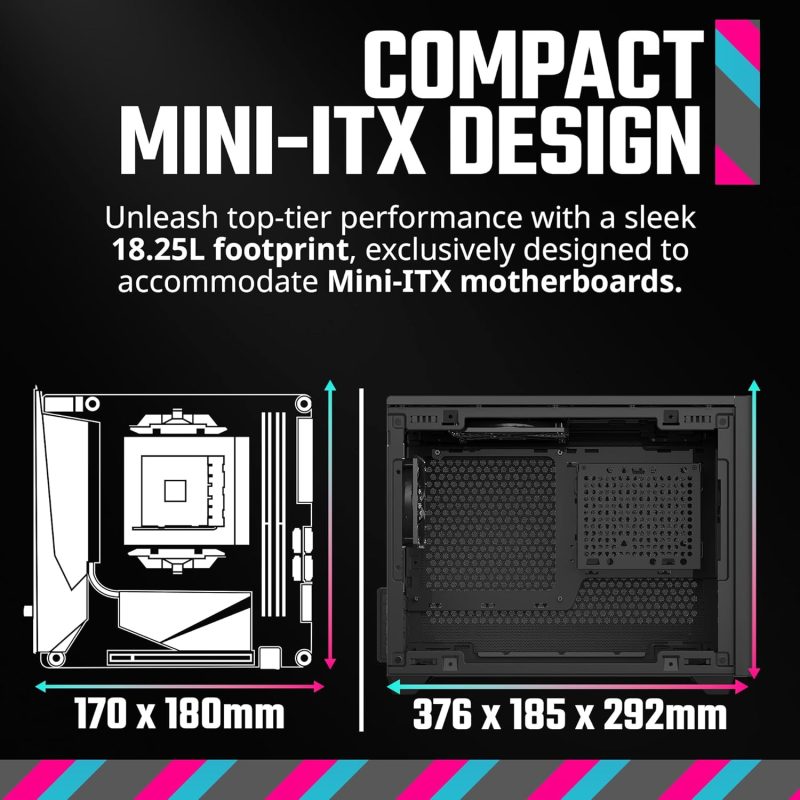

Compact ITX Design: Unleash top-tier performance with a sleek 18.25L footprint, exclusively designed to accommodate Mini-ITX motherboards.

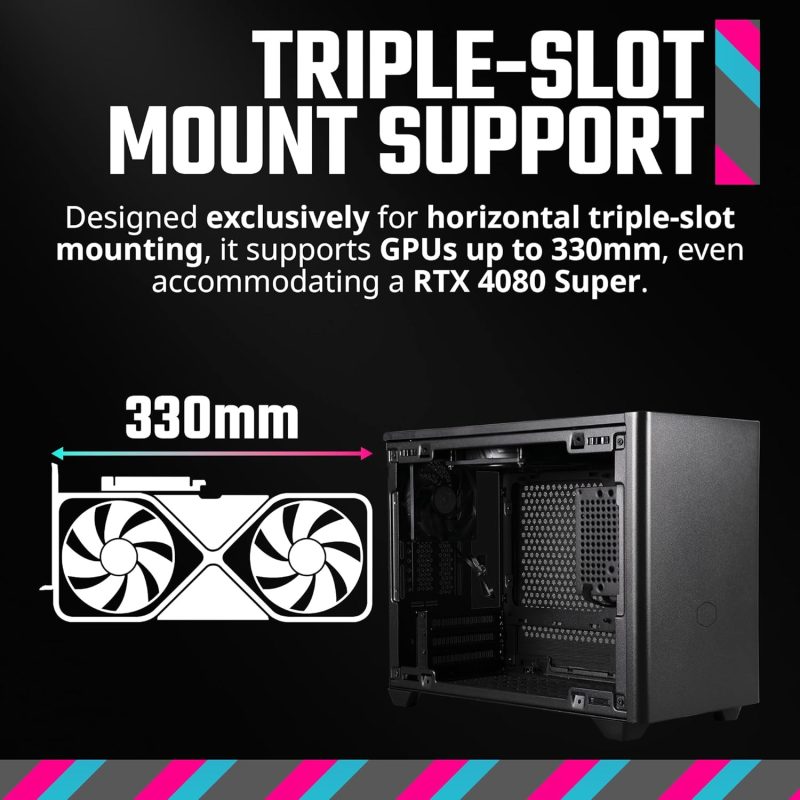

Triple-Slot Mount Support: Designed exclusively for horizontal triple-slot mounting, it supports GPUs up to 330mm, even accommodating a RTX 4080 Super.

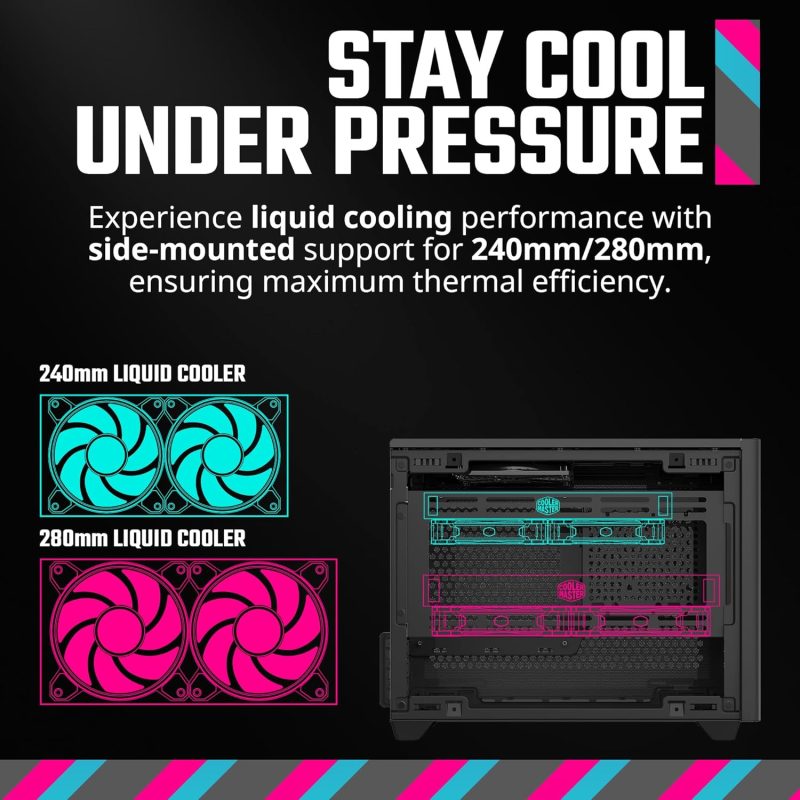

Stay Cool Under Pressure: Experience liquid cooling performance with side-mounted support for 240mm/280mm, ensuring maximum thermal efficiency.

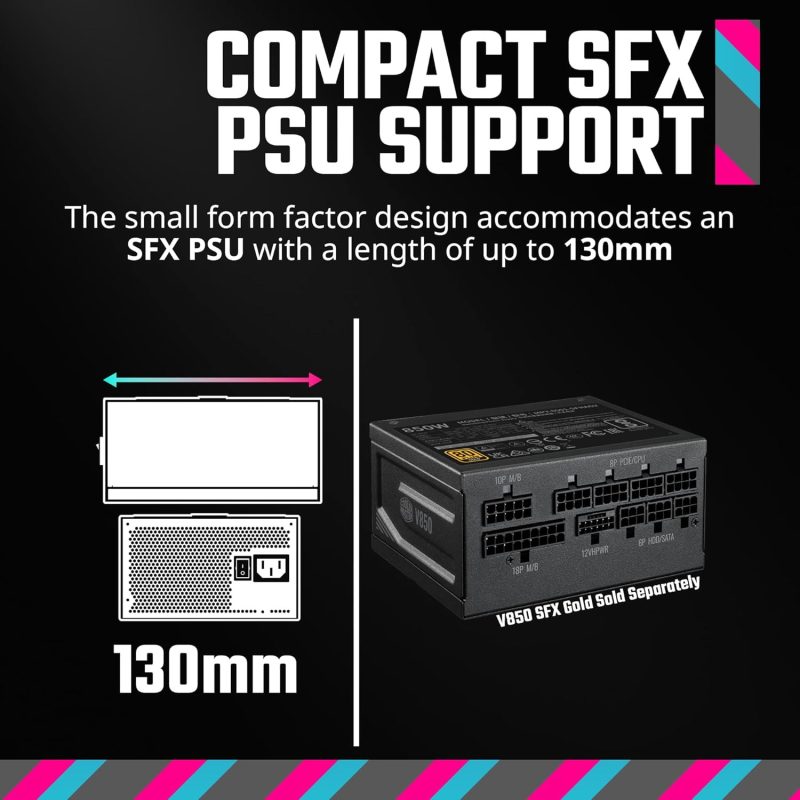

Compact SFX PSU Support: The small form factor design accommodates an SFX PSU with a length of up to 130mm.

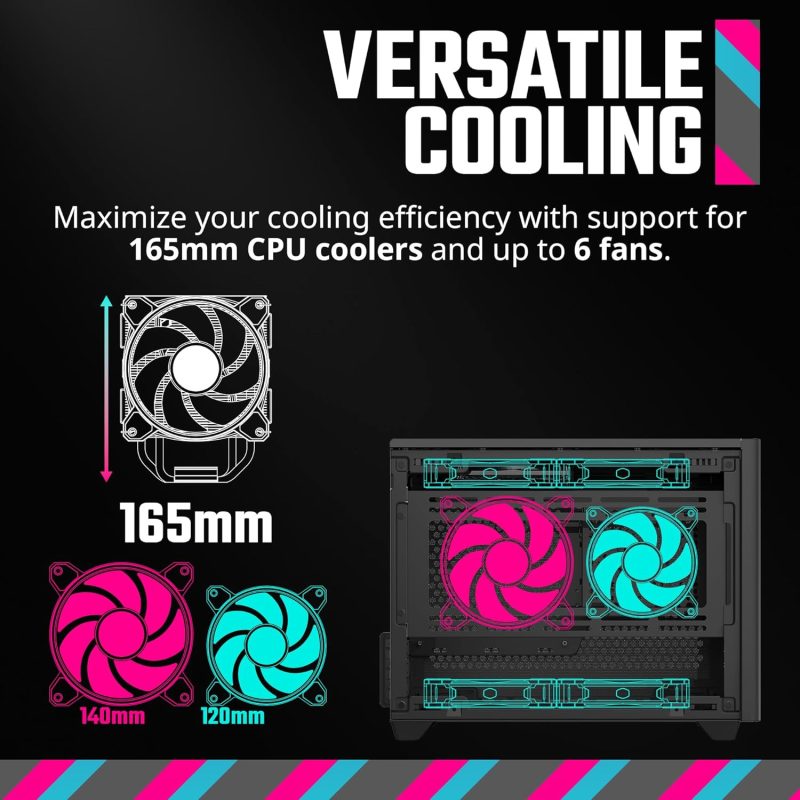

Versatile Cooling: Maximize your cooling efficiency with support for 165mm CPU coolers and up to 6 fans.

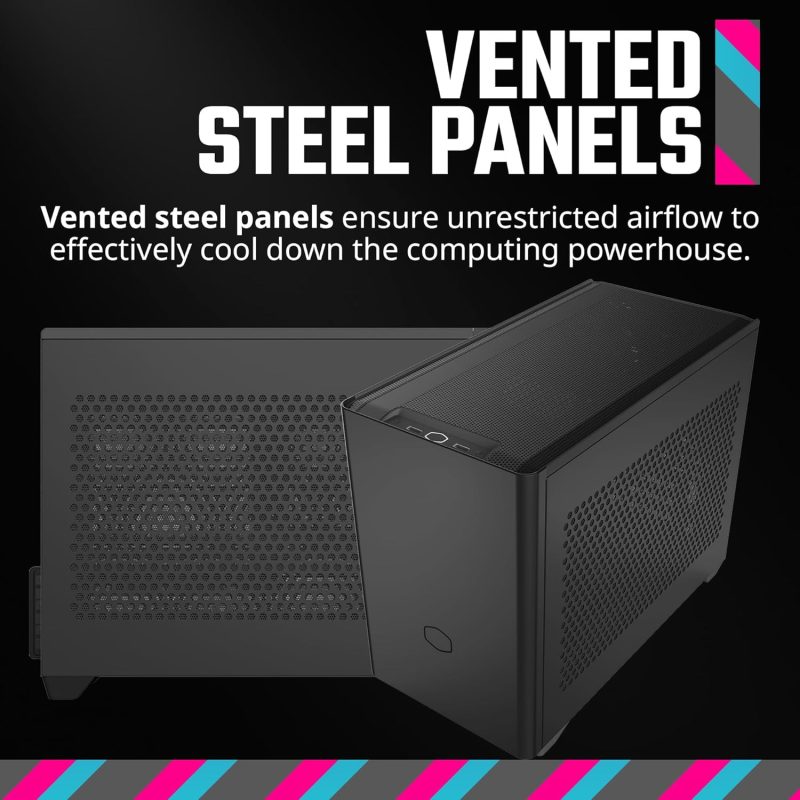

Vented Steel Panels: Vented steel panels ensure unrestricted airflow to effectively cool down the computing powerhouse.

Out of stock

SKU: CM-MCB-NR200P-KGNN-S00 Category: PC Casings Brand: Cooler Master

Payment Methods

Exterior Color – Black, White / Grey

Materials – ExteriorSGCC Steel, Mesh, ABS Plastic

Materials – Left Side PanelTempered Glass x1, Steel x1

Dimensions (L x W x H)376 x 185 x 292mm (incl. Protrusions), 360 x 185 x 274mm (excl. Protrusions)

Volume – 18.25L (exlc. Protrusions)

Motherboard SupportMini-ITX, Mini-DTX, Max. size: 244 x 226mm

Expansion Slots – 3

5.25" Drive Bays0

3.5" Drive Bays1 (Max. 2)

2.5" / 3.5" Drive Bays (Combo)1

2.5" Drive Bays2 (Max. 3)

I/O Panel – USB Ports2x USB 3.2 Gen 1 (USB 3.0)

I/O Panel – Audio In / Out1x 3.5mm Headset Jack (Audio+Mic)

Accessories1x PCIe 3.0 x16 riser cable

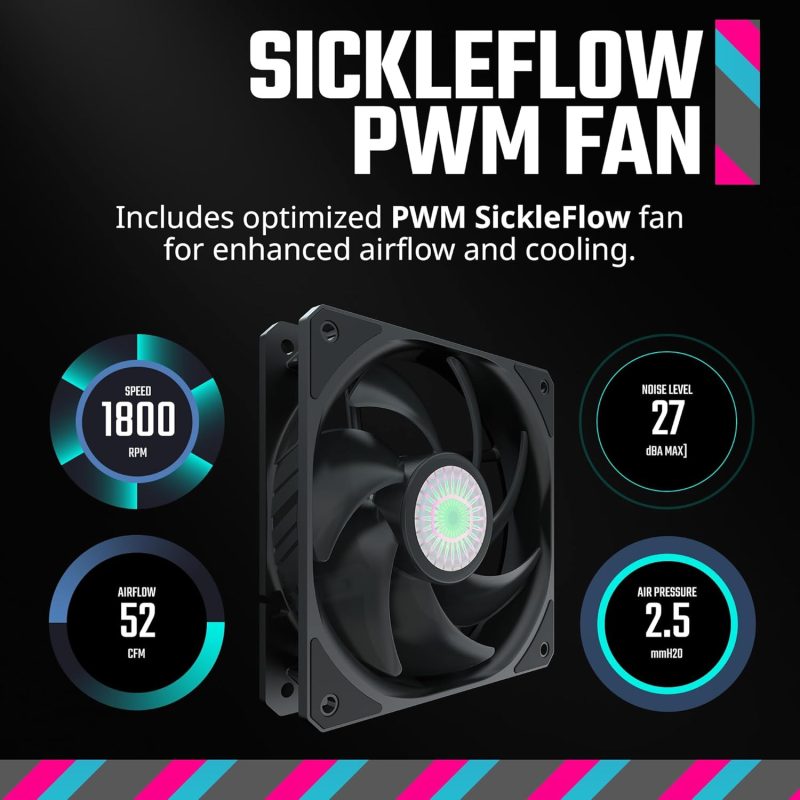

Pre-installed Fans – Top2x 120mm 650-1800RPM PWM (SickleFlow)

Pre-installed Fans – FrontN/A

Pre-installed Fans – RearN/A

Pre-installed Fans – BottomN/A

Fan Support – Top2x 120mm

Fan Support – Side2x 120/140mm

Fan Support – Rear1x 92mm

Fan Support – Bottom2x 120mm (recommended slim fans for GPUs wider than 2.5 PCI slots)

Radiator Support – TopN/A

Radiator Support – Left side120 / 140 / 240 / 280mm (not compatible with vertical GPU installation)

Radiator Support – Rear92mm (Not Compatible with Vertical GPU Installation)

Radiator Support – Bottom120/240mm (recommended only for single slot water-cooled GPUs or vertically mounted GPUs)

Clearance – CPU Cooler155mm (vented steel side panel), 153mm (tempered glass side panel), 76mm (GPU in vertical position)

Clearance – PSU130mm

Clearance – GFXL: 330mm (incl. power connector), H: 156mm (incl. power connector), W: 60mm (triple slot)

Dust FiltersBottom, Left, Right, Top Panels

Power Supply SupportSFX, SFX-L

Warranty2 years

SizeMini ITX

SeriesMasterBox Series

NoteThis product is only compatible for devices that support the PCI-E 3.0 specification. If you use this product with a motherboard that supports PCI-E 4.0, please enter into BIOS option and select PCI-E 3.0 before installation.

NoteSingle slot water-cooler GPUs or vertically mounted GPUs are recommended when using bottom radiator position
