Model |
ASUS ZenWiFi BT10 |
|
Model Name |
BT10(W-2-PK) |
|
Network Standard |
IEEE 802.11a |
| IEEE 802.11b | |
| IEEE 802.11g | |
| WiFi 4 (802.11n) | |
| WiFi 5 (802.11ac) | |
| WiFi 6 (802.11ax) | |
| WiFi 6E (802.11ax) | |
| WiFi 7 (802.11be) | |
| IPv4 | |
| IPv6 | |
|
Product Segment |
BE18000 ultimate BE performance : 688+5764+11529 Mbps |
|
WiFi Data Rate |
WiFi 7 (802.11be) (2.4GHz): up to 688 Mbps |
| WiFi 7 (802.11be) (5GHz): up to 5764 Mbps | |
| WiFi 7 (802.11be) (6GHz): up to 11529 Mbps | |
|
Antenna |
Internal antennas x 8 |
|
Transmit / Receive |
2.4GHz 2×2 |
| 5GHz 4×4 | |
| 6GHz 4×4 | |
|
Processor |
2.0GHz quad-core processor |
|
Memory |
RAM 2GB , Flash 256MB |
|
Boosts Speed |
OFDMA (Orthogonal Frequency Division Multiple Access) |
| Beamforming: standard-based and universal | |
| 4096-QAM high data rate | |
| 20/40/80/160/320 MHz bandwidth | |
|
Operating Frequency |
2.4 GHz |
| 5 GHz | |
| 6 GHz | |
|
Operating Mode |
Wireless Router Mode |
| AiMesh Node Mode | |
| Access Point Mode | |
|

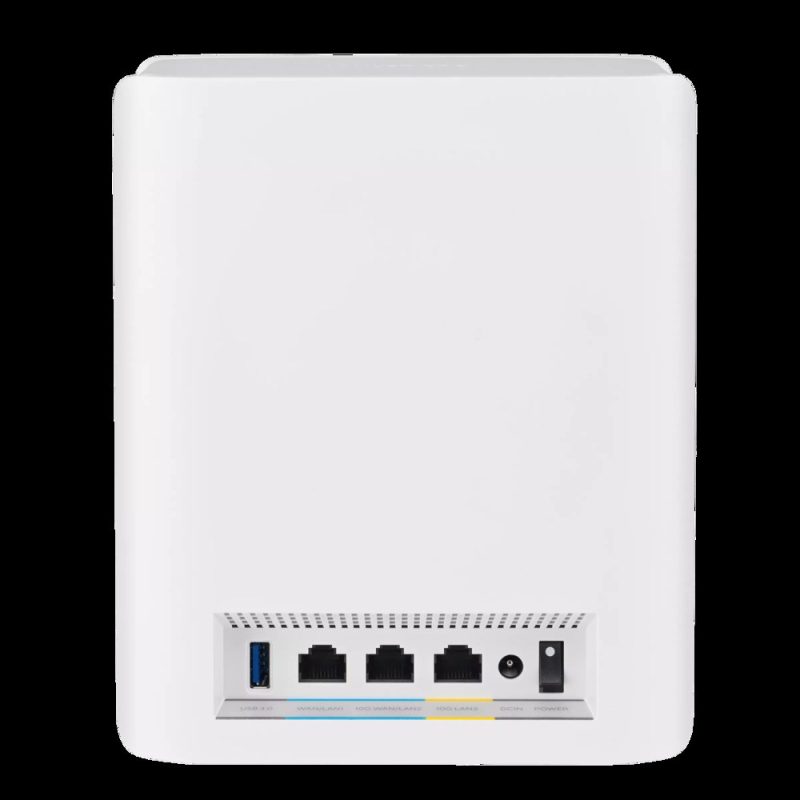

I/O Ports |
10G WAN/LAN x 1 |
| 10G LAN x 1 | |
| 1G WAN/LAN x 1 | |
| USB 3.0 x1 | |
|
Buttons |
WPS button, Reset button, Power switch |
|
LED Indicator |
Power x 1 |
|
Power Supply |
AC Input : 110V~240V(50~60Hz) |
| DC Output : 12V with max. 3A current | |
|
Package Content |
ZenWiFi BT10 |
| RJ45 cable | |
| Power adapter | |
| Warranty card | |
| Quick start guide | |
|
Product Dimensions |
159 x 72 x 186 mm |
|
Remark |
Content may vary in different regions and packages. |
|
AiMesh |
AiMesh |
| • Primary AiMesh Router | |
| • AiMesh Node | |
|
Parental Control |
"Allow you to block access to unwanted websites and apps." |
| Web & Apps Filters | |
| Time Scheduling | |
| Reward | |
| Parental Control – Safe Browsing | |
| Customized Internet Schedule | |
|
Router APP |
APP: ASUS Router APP |
|
Guest Network |
"The Guest Network provides Internet connection for guests but restricts access to your local network." |
| Support Guest Network | |
|
Security |
AiProtection |
| VPN | |
| WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise | |
| WPS | |
| Let's Encrypt | |
| DNS-over-TLS | |
| Security Scan | |
| Firewall | |
|
AiProtection |
AiProtection Pro |
| • Router Security Assessment | |
| • Malicious Site Blocking | |
| • Two-Way IPS | |
| • Infected Device Prevention and Blocking | |
|
VPN |
Instant Guard |
| VPN Client L2TP | |
| VPN Client Open VPN | |
| VPN Client PPTP | |
| VPN Client WireGuard | |
| VPN Server IPSec | |
| VPN Server Open VPN | |
| VPN Server PPTP | |
| VPN Server WireGuard | |
| VPN Fusion | |
|
Traffic Control |
Adaptive QoS |
| • Bandwidth Monitor | |
| • Bandwidth Limiter | |
| Traditional QoS | |
| Traffic Monitor | |
| Traffic Analyzer | |
| • Website History | |
|
WAN |
Dual WAN |
| 3G / 4G LTE Dongle | |
| 4G / 5G Auto Mobile Tethering | |
| Port Forwarding | |
| Port Triggering | |
| DMZ | |
| DDNS | |
|
LAN |
DHCP Server |
| IGMP Snooping | |
| IPTV | |
| LAN Link Aggregation | |
| Manually Assign IP Address | |
| Wake on LAN (WOL) | |
|
Wireless |
MU-MIMO |
| UTF-8 SSID | |
| WiFi MAC Address Filter | |
| Wireless Scheduler | |
| Airtime Fairness | |
| RADIUS Client | |
| Universal Beamforming | |
| Explicit Beamforming | |
|
USB application |
4G / 5G Auto Mobile Tethering |
| HDD Hibernation | |
| Safely Remove Disk | |
| Download Master | |
| AiDisk | |
| Media Server | |
| Time Machine | |
| Samba Server | |
| FTP Server | |
| Shared Folder Privileges | |
|
Administration |
Diagnosis tools |
| Feedback system | |
| System log | |
| New Device Connect Notification | |
| Login Captcha | |
| Connection Diagnosis | |
| Auto Firmware Update | |
|
Smart Home |
Support Google Assistant |

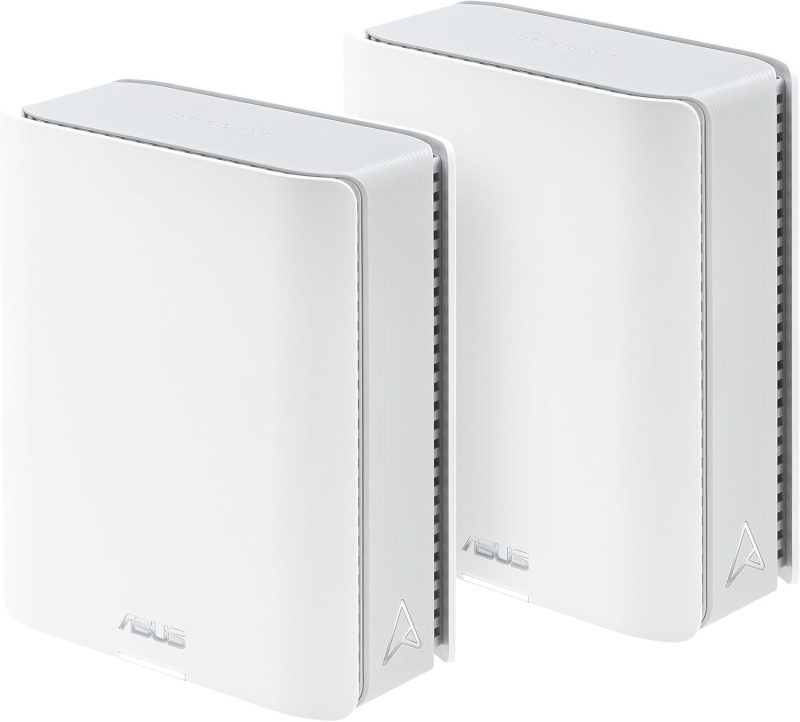

Asus ZenWiFi BT10 Tri-Band WiFi 7 18 Gbps 6 GHz WiFi Parental Control Smart AiMesh Router
RM1618 – RM2998Tri-band WiFi 7 (802.11be) Mesh Router, 18 Gbps, Coverage Up to 6000 sq. ft. (2pk), Dual 10G ports, Smart Home Master SSIDs for IoT, VPN and parental controls, Commercial-grade security, Smart AiMesh
- Blazing-fast tri-band WiFi 7 speeds of up to 18 Gbps with superior 6 GHz WiFi, Multi-Link Operation (MLO) and 4K-QAM.
- AI-powered Smart AiMesh boosts coverage of up to 6000 sq. ft. (2pk) with faster, more stable connections and a powerful extendable network.
- Eight internal antennas and ten high-power front-end modules eliminate WiFi dead zones in all directions.
- Bolster your network capacity with dual 10G WAN and LAN Ethernet ports.
- Versatile WAN configuration options with automatic WAN detection, and 4G LTE and 5G Mobile Tethering for always-on Internet.
- Enjoy end-to-end protection with commercial-grade AiProtection Pro, advanced parental controls and comprehensive VPNs.
- Establish up to three SSIDs with Smart Home Master Network for easy IoT device setup, convenient parental controls and instant VPN connections.
| Weight | 2.00 kg |
|---|---|
| Dimensions | 20.00 × 12.00 × 23.00 cm |
| Packs | Single Pack, Dual Pack |
