Model
TUF Gaming BE9400 (TUF-BE9400)
Network Standard
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, WiFi 4 (802.11n), WiFi 5 (802.11ac), WiFi 6 (802.11ax), WiFi 7 (802.11be), IPv4, IPv6
Product Segment
BE9400 ultimate BE performance with combined speeds of 688 + 2882 + 5764 Mbps
WiFi Data Rate
WiFi 7 (2.4GHz) up to 688 Mbps
WiFi 7 (5GHz) up to 2882 Mbps
WiFi 7 (6GHz) up to 5764 Mbps
Antenna
Six external fixed antennas
Transmit / Receive
2.4GHz 2×2
5GHz 2×2
6GHz 2×2
Processor
1.5GHz quad-core processor
Memory
256MB flash and 1GB RAM
Speed Enhancement Technologies
OFDMA, standard-based and universal beamforming, 4096-QAM, 20/40/80/160/320 MHz bandwidth
Operating Frequency
2.4GHz, 5GHz, 6GHz
Operating Modes
Wireless router mode, AiMesh node mode, access point mode, media bridge mode, repeater mode

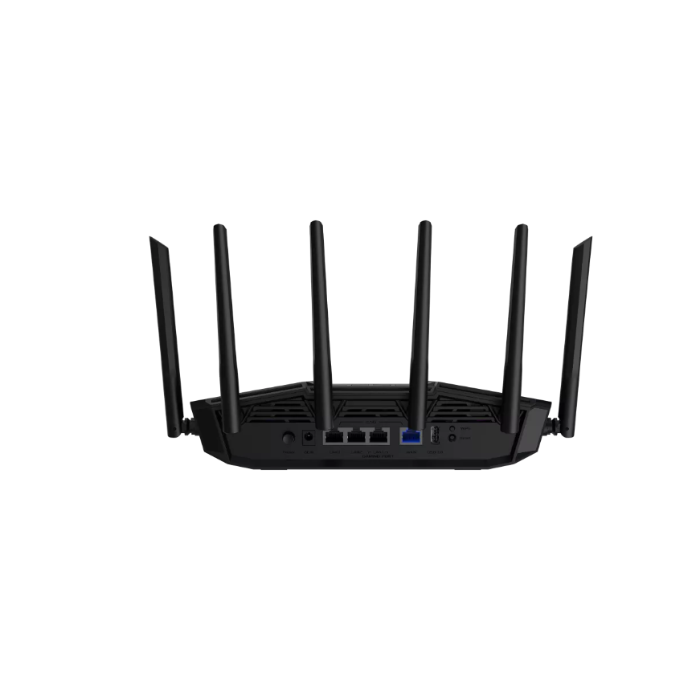

I/O Ports
One 2.5Gbps WAN port
Three 2.5Gbps LAN ports
One USB 3.2 Gen 1 port
Buttons
WPS button, reset button, power button
LED Indicators
Power, WAN (Internet), 2.4GHz, 5GHz, 6GHz
Power Supply
AC input 110V–240V (50–60Hz)
DC output 12V with maximum 2.5A current
Package Content
TUF-BE9400 tri-band gaming router
RJ-45 cable
Power adapter
Quick start guide
Warranty card
Product Weight
764 g
Product Dimensions
320 × 179 × 191 mm
AiMesh Support
Primary AiMesh router
AiMesh node
Gaming Features
Game Boost and acceleration, mobile game mode, gear accelerator, OpenNAT game profiles, dedicated gaming port
Parental Control
Web and app filters, time scheduling, safe browsing, customized internet schedules, up to 64 parental control profiles
Guest Network
Internet access for guests with restricted local network access
Maximum guest network rules up to 3 on 2.4GHz and 5GHz
Guest network connection time limit
Encryption support: open system, WPA, WPA2, WPA3 Personal
Security
AiProtection, firewall, security scan, DNS-over-TLS, SSH, Let’s Encrypt, WPS
Support for WPA, WPA2, WPA3 Personal and Enterprise
Open system and OWE
AiProtection Features
Router security assessment, malicious site blocking, two-way IPS
VPN Features
Instant Guard
VPN client support for L2TP, OpenVPN, PPTP, WireGuard
VPN server support for IPSec, OpenVPN, PPTP, WireGuard
VPN Fusion
Support for Surfshark and NordVPN
Traffic Control
Adaptive QoS, traditional QoS, bandwidth monitor, bandwidth limiter with up to 32 rules
Real-time wired and wireless traffic monitoring
Traffic analysis by daily, weekly, or monthly periods
Website history tracking
WAN Features
Internet connection types include PPPoE, PPTP, L2TP, automatic IP, static IP, IPSec
Dual WAN support
3G/4G LTE dongle support
4G/5G auto mobile tethering
Port forwarding up to 64 rules
Port triggering up to 32 rules
DMZ and DDNS
VPN pass-through support for PPTP, L2TP, IPSec, RTSP, H.323, SIP, PPPoE relay
LAN Features
DHCP server, IPTV support, manual IP assignment up to 64 rules, Wake on LAN
Wireless Features
MU-MIMO, UTF-8 SSID, WiFi MAC address filtering up to 64 rules
Wireless scheduler, airtime fairness, RADIUS client, universal beamforming
USB Applications
4G and 5G auto mobile tethering
File system support for HFS+, NTFS, vFAT, ext2, ext3, ext4, FAT32
Safely remove disk, download master, media server, Time Machine, Samba server, FTP server, shared folder privileges
User Interface
Web-based ASUSWRT
ASUS Router mobile app
Administration
Configuration backup and restore, diagnostic tools, feedback system, system log
New device connection notifications, login captcha, connection diagnosis, automatic firmware update
