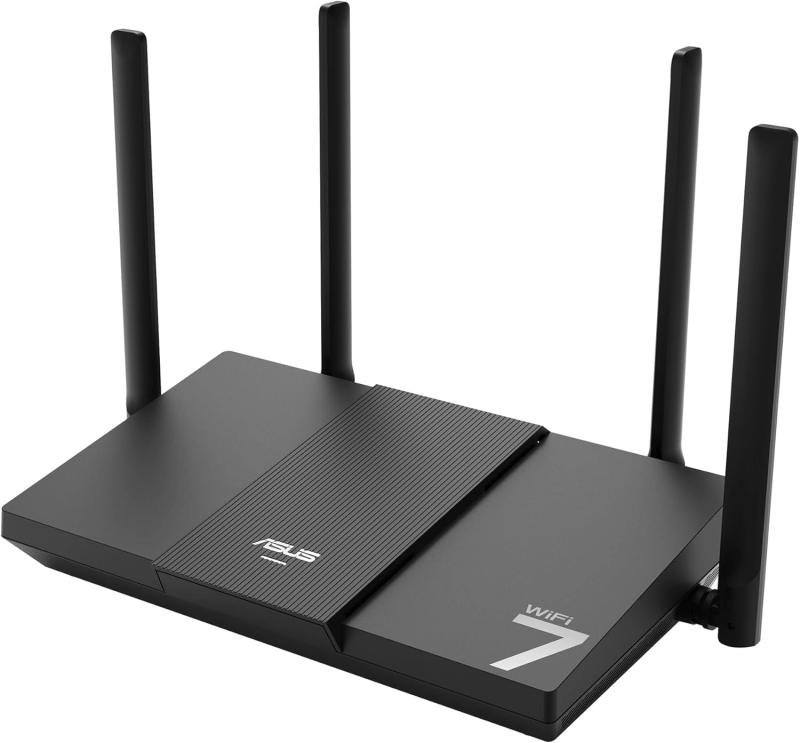

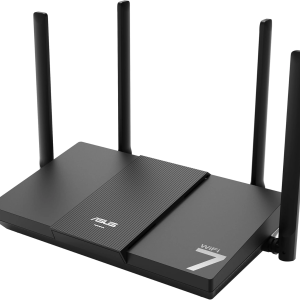

Asus RT-BE50 Dual-band WiFi 7 160MHz 5GHz 3600 Mbps Worry-Free Smart Home WiFi Router

Model : RT-BE50

Network Standard : IEEE 802.11a / 802.11b / 802.11g / WiFi 4 / WiFi 5 / WiFi 6 / WiFi 7 / IPv4 / IPv6

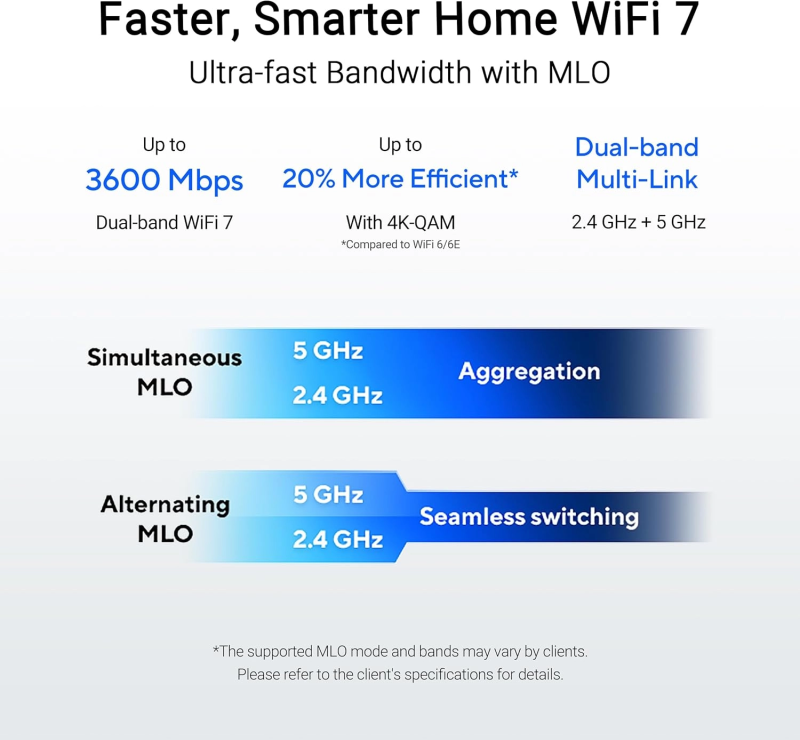

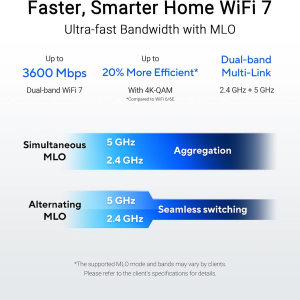

Product Segment : BE3600 ultimate BE performance (688 + 2882 Mbps)

WiFi Data Rate 802.11a : up to 54 Mbps

WiFi Data Rate 802.11b : up to 11 Mbps

WiFi Data Rate 802.11g : up to 54 Mbps

WiFi 7 (2.4GHz) : up to 688 Mbps

WiFi 7 (5GHz) : up to 2882 Mbps

Antenna : External antenna x4

Transmit / Receive (2.4GHz) : 2×2

Transmit / Receive (5GHz) : 2×2

Processor : Quad-core

Memory : 128 MB Flash / 256 MB RAM

Speed Boost Features : OFDMA / Beamforming / 4096-QAM / 20–160 MHz bandwidth

Operating Frequency : 2.4GHz / 5GHz

Operating Mode : Router / AiMesh Node / Range Extender / Access Point / Media Bridge / Repeater

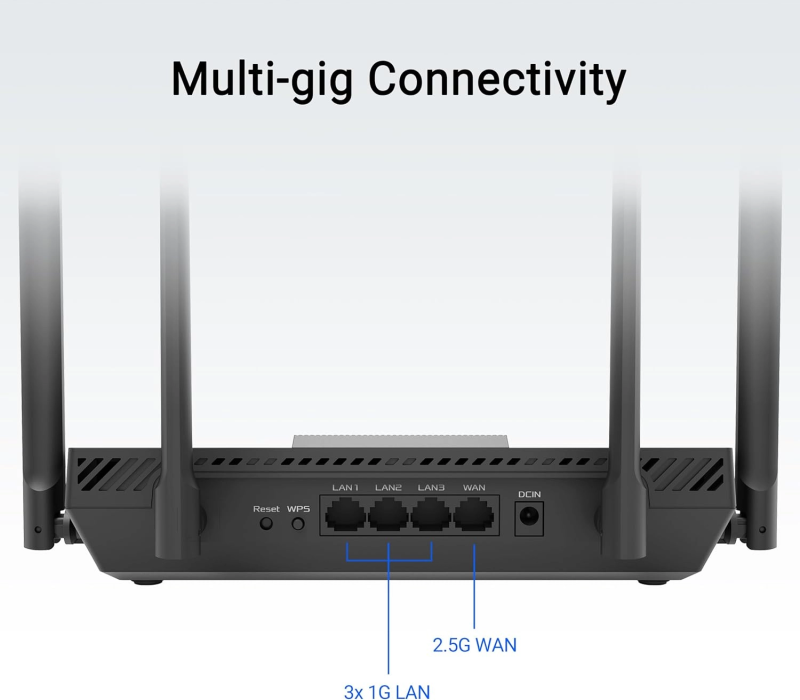

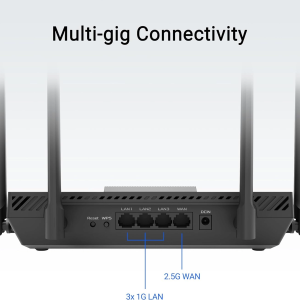

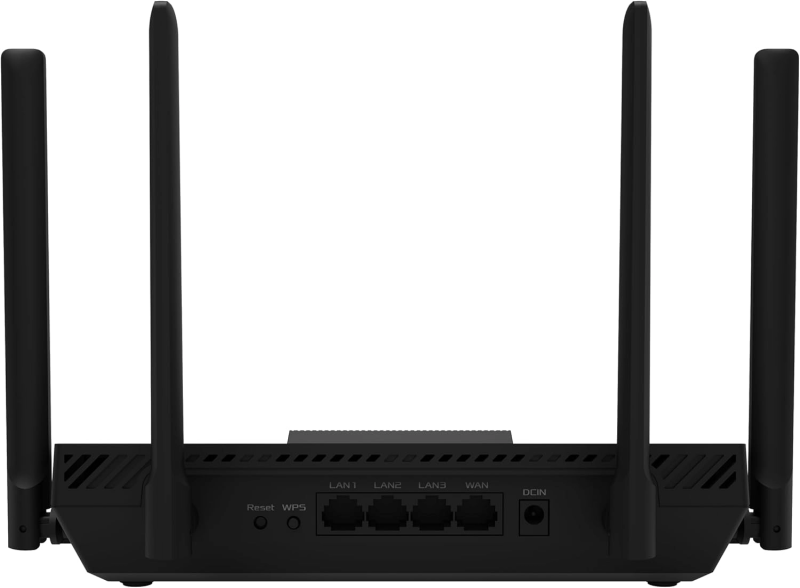

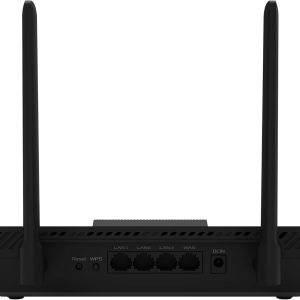

I/O Ports : 1x 2.5G WAN, 3x 1G LAN

Buttons : WPS, Reset

LED Indicator : Power x1

Power Input : 100–240V AC (50/60Hz)

Power Output : 12V 1.5A

Package Content : RT-BE50, RJ-45 cable, power adapter, QSG, warranty card

Product Weight : 450g

Product Dimensions : 261 x 156 x 50 mm

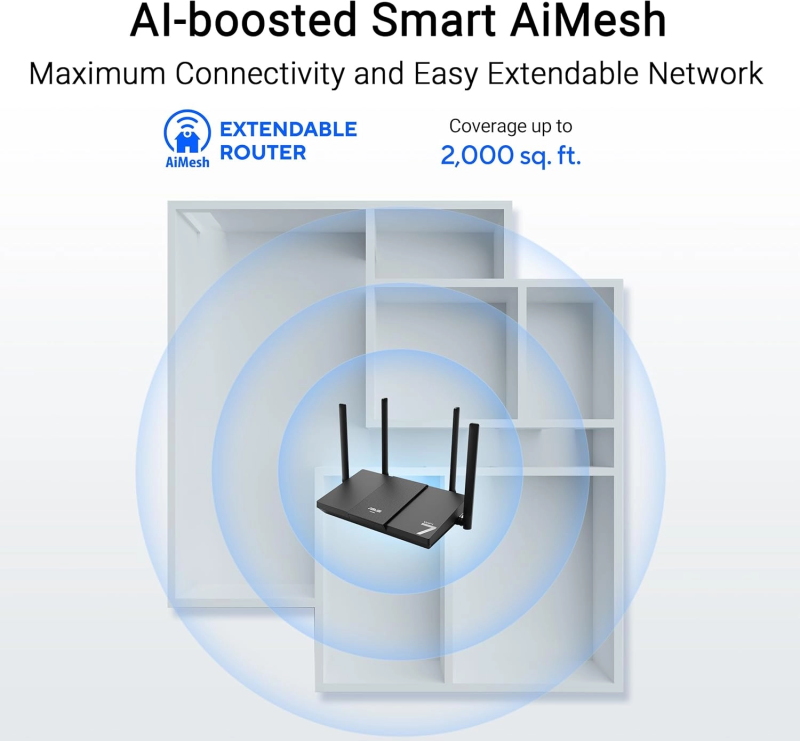

AiMesh : Primary AiMesh Router / AiMesh Node

Parental Control : Time Scheduling / Safe Browsing / Custom Internet Schedule

Guest Network : 2.4GHz x3, 5GHz x3

Guest Network Time Limit : Supported

Security : WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise, WPS, Let's Encrypt, DNS-over-TLS, SSH

Firewall Keyword Filter : 64

Firewall Network Service Filter : 32

Firewall URL Filter : 64

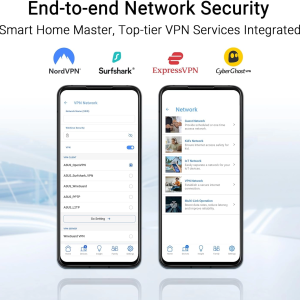

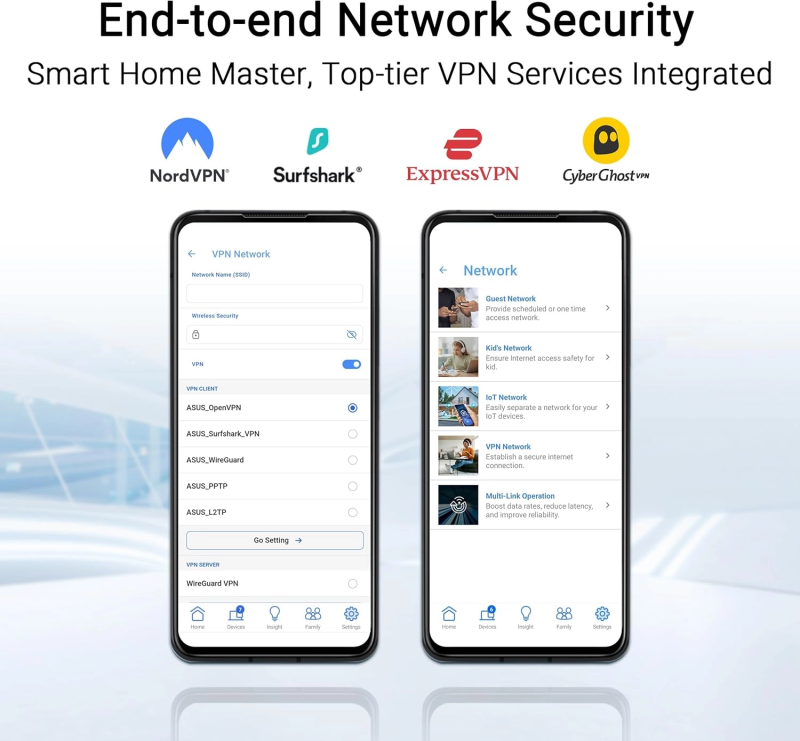

VPN Client : L2TP / OpenVPN / PPTP / WireGuard

VPN Server : IPSec / OpenVPN / PPTP / WireGuard

Instant Guard : Supported

VPN Fusion : Supported

Bandwidth Monitor : Yes

Bandwidth Limiter : Max 32 rules

Traditional QoS : Max 32 rules

Traffic Monitor : Real-time / Wired / Wireless / Website History

WAN Type : PPPoE / PPTP / L2TP / Automatic IP / Static IP

Port Forwarding : Max 64 rules

Port Triggering : Max 32 rules

DMZ : Supported

DDNS : Supported

NAT Passthrough : PPTP / L2TP / IPSec / RTSP / H.323 / SIP / PPPoE relay

LAN : DHCP Server / IGMP Snooping / IPTV

Manually Assign IP : Max 64 rules

Wake on LAN : Supported

Wireless Features : MU-MIMO / UTF-8 SSID / MAC Filter x64 / Wireless Scheduler / Airtime Fairness / RADIUS Client / Beamforming

User Interface : ASUSWRT Web / ASUS Router App

Administration : Backup & Restore / System Log / Auto Firmware Update / Login Captcha / Device Notification / Diagnosis tools
