Model Information
Model Name: GS-BE7200X
Product Segment: BE7200 Ultimate BE Performance – 1376 + 5764 Mbps
Network Standards
WiFi 7 (802.11be)
IEEE 802.11a / b / g / n / ac / ax / be
IPv4 / IPv6
WiFi Performance
WiFi Data Rate:
2.4GHz BE: 4×4 (Tx/Rx), 4096 QAM, 20/40MHz, up to 1376 Mbps
5GHz BE: 4×4 (Tx/Rx), 4096 QAM, 20/40/80/160MHz, up to 5764 Mbps
Antenna: Internal antenna x 8
Transmit / Receive: 2.4GHz 4×4 / 5GHz 4×4
Hardware
Processor: 1.8GHz Tri-core processor
Memory: 128MB Flash, 1GB DDR4 RAM
Boost Features:
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming (standard-based and universal)
4096-QAM high data rate
20/40/80/160 MHz bandwidth
Operating Frequency
2.4GHz
5GHz
Operating Modes
Wireless Router Mode
AiMesh Node Mode
Access Point Mode
Media Bridge Mode
Repeater Mode

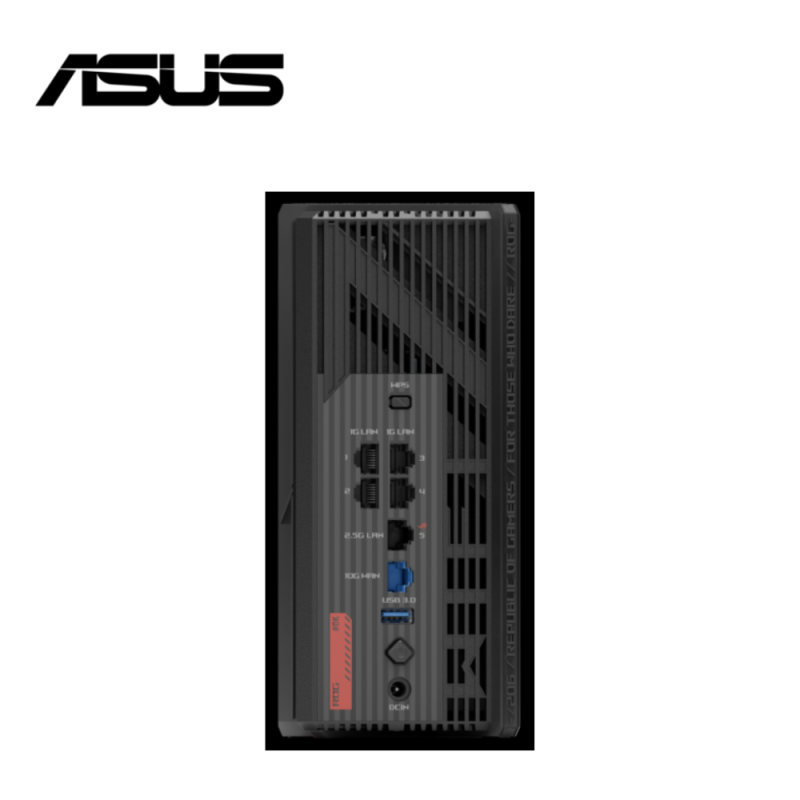

I/O Ports
1 x 10G WAN
1 x 2.5G LAN
4 x 1G LAN
1 x USB 3.2 Gen1
Buttons: Power, WPS, Reset
LED Indicators: Internet (WAN), WiFi, LAN, Power
Power
Power Supply:
AC Input: 110V–240V (50/60Hz)
DC Output: 12V / 3A (max.)
Package Contents
WiFi 7 Dual-Band Router
ROG RJ-45 Cable
Power Adapter
Quick Start Guide
Warranty Card
Physical Specifications
Product Dimensions: 225 x 90 x 225 mm
Product Weight: 811 g
AiMesh Support
Primary AiMesh Router
AiMesh Node
Gaming Features
Game Boost / Acceleration
Mobile Game Mode
Gear Accelerator
UU Boost
ROG First
OpenNAT (Game Profile)
Gaming Port
Gaming Network
Parental Controls
Block access to unwanted websites and apps
Time Scheduling & Rewards
Customized Internet Schedule
Maximum Profiles: 64
Guest Network
Provides Internet access for guests while restricting local network access
Maximum Guest Network Rules: 2.4GHz + 5GHz = 3
Connection time limit supported
Encryption: Open System, WPA/WPA2/WPA3-Personal
Security
WiFi Encryption: WPA/WPA2/WPA3 Personal & Enterprise
Other Features:
WPS
Let’s Encrypt
DNS-over-TLS
SSH
Security Scan
Firewall:
Keyword Filter (max. 64)
Network Service Filter (max. 32)
URL Filter (max. 64)
AiProtection Pro:
Router Security Assessment
Malicious Site Blocking
Two-Way IPS
Infected Device Prevention & Blocking
VPN Features
VPN Client: L2TP, OpenVPN, PPTP, WireGuard
VPN Server: IPSec, OpenVPN, PPTP, WireGuard
Other:
VPN Fusion
Instant Guard
Supports Surfshark
Traffic Control
Adaptive QoS:
Bandwidth Monitor & Limiter (max. 32 rules)
Traditional QoS
Traffic Monitor: Real-time / Wired / Wireless
Traffic Analyzer: Daily, Weekly, Monthly + Website History
WAN
Internet Connection Types:
PPPoE
PPTP
L2TP
Automatic IP
Static IP
IPSec
4G / 5G Auto Mobile Tethering: Supported
NAT Passthrough:
PPTP / L2TP / IPSec / RTSP / H.323 / SIP / PPPoE Relay
LAN
DHCP Server
IGMP Snooping
IPTV
Manually Assign IP Address (max. 128)
Wake on LAN (WOL)
Wireless
MU-MIMO
USB Applications
4G / 5G Auto Mobile Tethering
File Systems Supported: HFS+, NTFS, vFAT, ext2/3/4
Features:
Safely Remove Disk
Download Master
Media Server
Samba Server
FTP Server
Shared Folder Privileges
User Interface
Web: ASUSWRT
App: ASUS Router App
Administration & System
Configuration Backup and Restore
Diagnosis Tools & Feedback System
System Log
New Device Connect Notification
Login Captcha
Connection Diagnosis
Auto Firmware Update
