Model Name
GS-BE18000
Network Standard
WiFi 6 (802.11ax)
WiFi 7 (802.11be)
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
IEEE 802.11ac
IPv4
IPv6
Product Segment
BE18000 ultimate BE performance: 688+5764+11529 Mbps
WiFi Data Rate
2.4GHz BE: 2×2 (Tx/Rx) 4096 QAM 20/40MHz, up to 688Mbps
5GHz BE: 4×4 (Tx/Rx) 4096 QAM 20/40/80/160MHz, up to 5764Mbp
6GHz BE: 4×4 (Tx/Rx) 4096 QAM 20/40/80/160/320MHz, up to 11529Mbp
Antenna
internal antenna x 8
Transmit / Receive
2.4GHz 2×2
5GHz 4×4
6GHz 4×4
Processor
2.0GHz quad-core processor
Memory
256 MB Flash and DDR4 2 GB RAM
Boosts Speed
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
4096-QAM high data rate
20/40/80/160/320 MHz bandwidth
Operating Frequency
2.4 GHz
5 GHz
6 GHz
Operating Mode
Router(AiMesh router), AiMesh node, Access point, Repeater, Media bridge

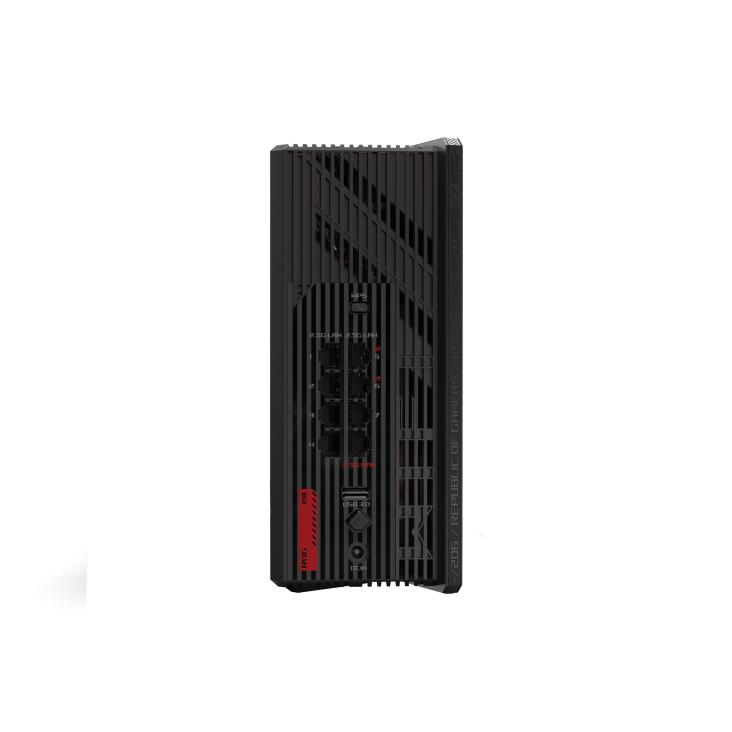

I/O Ports
1 x 2.5Gbps for WAN
7 x 2.5Gbps for LAN
1 x USB 3.2 Gen1
Buttons
WPS Button, Reset Button, Power Button
LED Indicator
WAN(Internet) x1
LAN x1
WiFi x1
Power x1
Power Supply
AC Input: 110V~240V(50~60Hz)
DC Output: 12 V with max. 5 A current / 12 V with max. 3 A current
Package Content

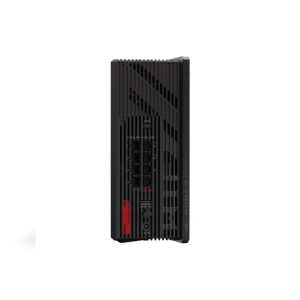

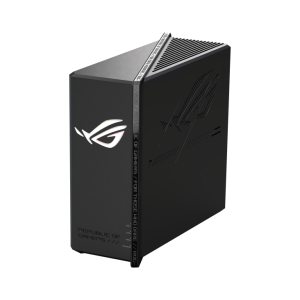

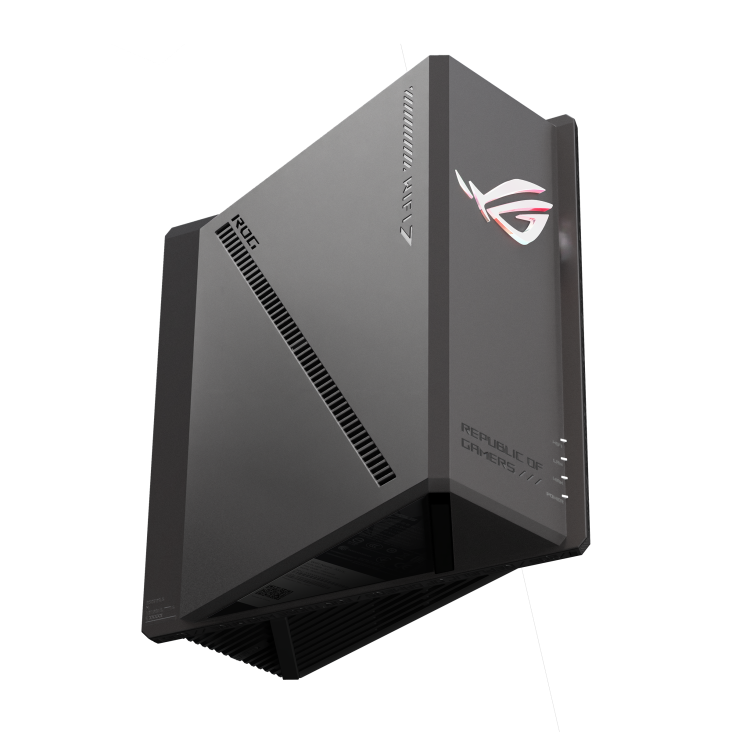

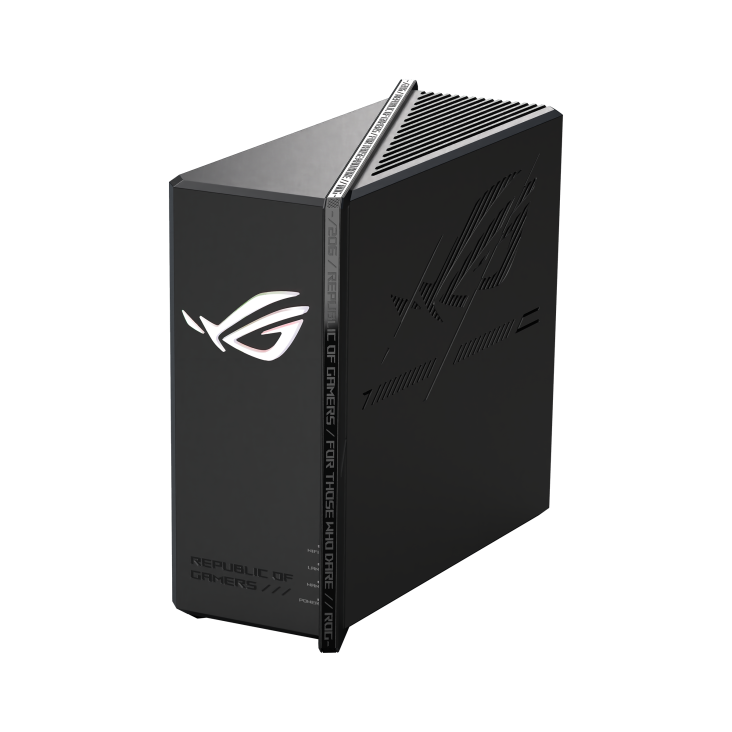

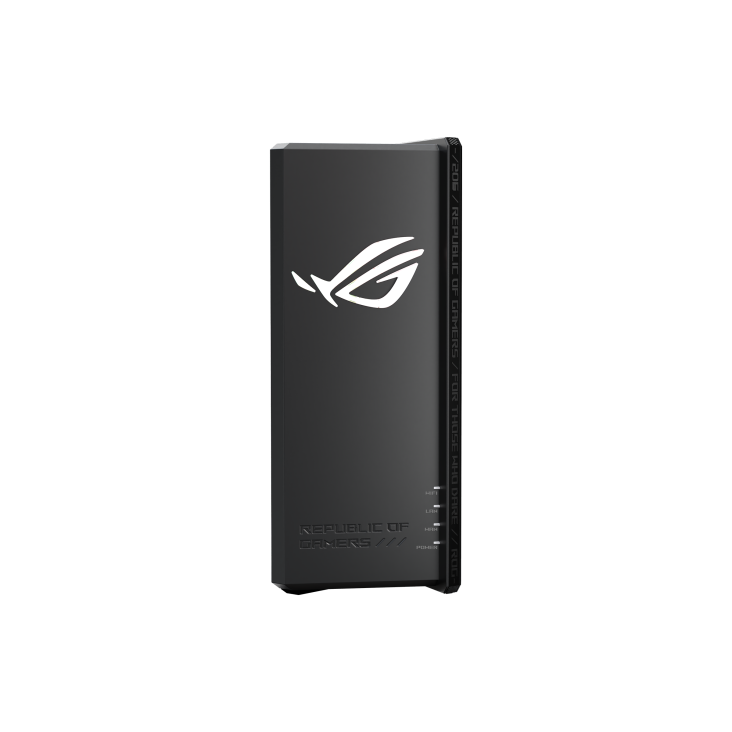

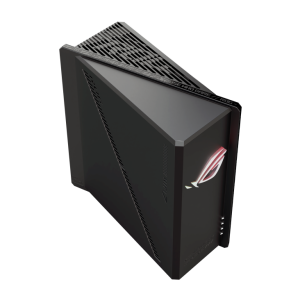

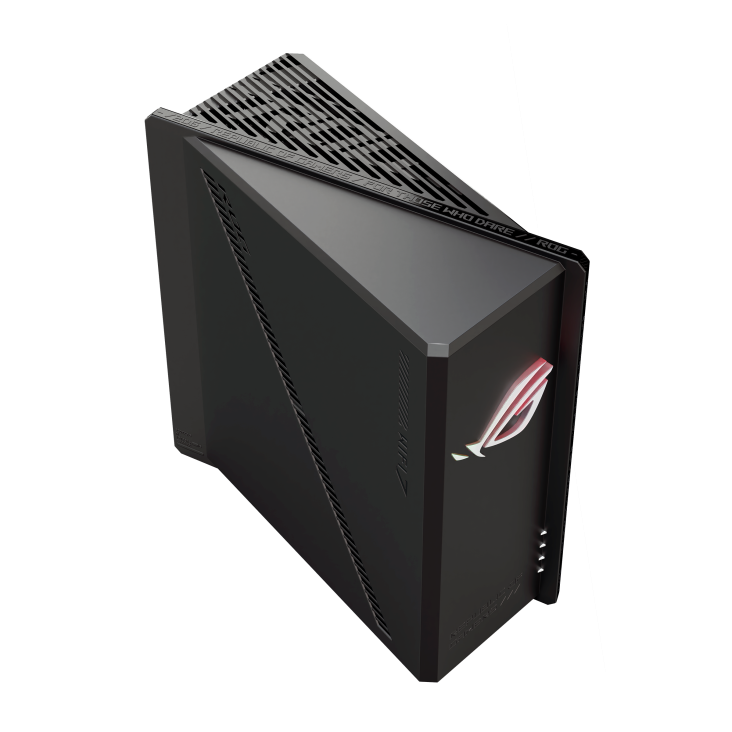

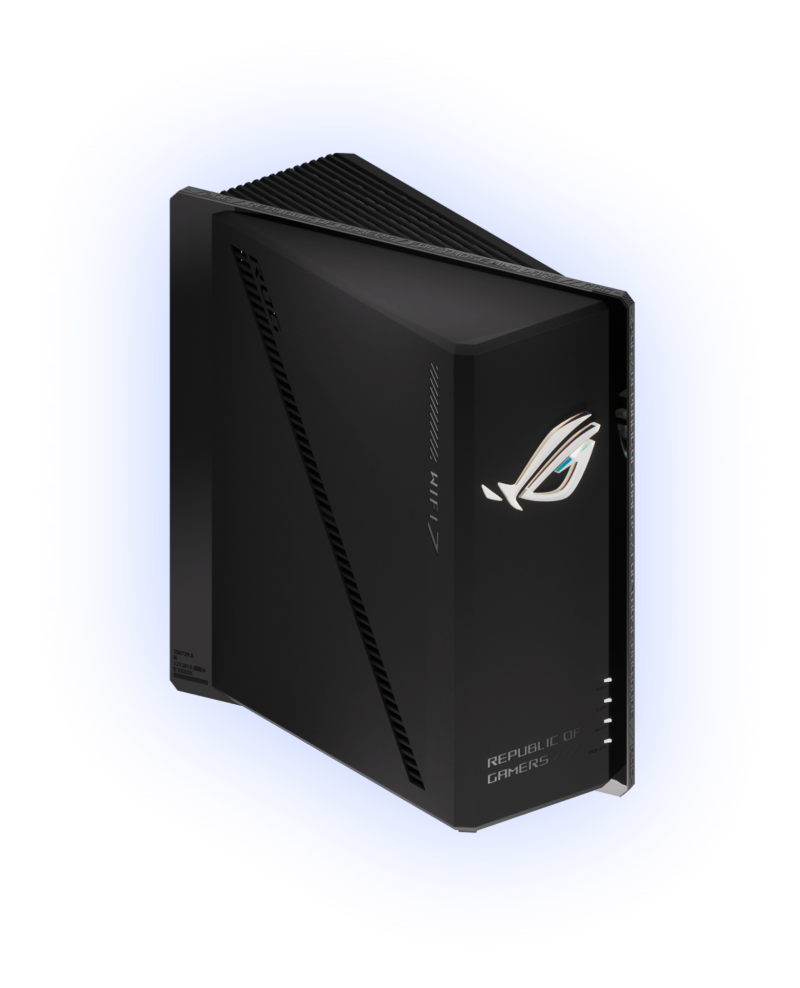

GS-BE18000 tri-band gaming router
RJ-45 cable
Power adapter
Quick Start Guide
Warranty card
Product Weight (g)
927.5 g
Product Dimensions
225 x 90 x 225 mm
AiMesh
AiMesh
• Primary AiMesh Router
• AiMesh Node
Game
Game Boost / Acceleration
Mobile Game Mode
Gear Accelerator
ROG_First
OpenNAT (Game Profile)
Gaming Port
Gaming Network
Parental Control
"Allow you to block access to unwanted websites and apps."
Web & Apps Filters
Time Scheduling
Reward
Parental Control Customized Internet Schedule
• Maximum Parental Control profile : 64
• Maximum Parental Control content filter rule : 64
Guest Network
"The Guest Network provides Internet connection for guests but restricts access to your local network."
Support Guest Network
• Maximum Guest Network Rule : 2.4 GHz + 5 GHz : 5
Guest Network Connection time limit
Guest Network Encryption : Open system, WPA/WPA2/WPA3 Personal
Security
AiProtection
VPN
WiFi Encryption : WPA/WPA2/WPA3 Personal
WPA/WPA2/WPA3 Enterprise
Open System & OWE
WPS
Let's Encrypt
DNS-over-TLS
SSH
Security Scan
Firewall
• Maximum Firewall Keyword Filter : 64
• Maximum Firewall Network Service Filter : 32
• Maximum Firewall URL Filter : 64
AiProtection
AiProtection Pro
• Router Security Assessment
• Malicious Site Blocking
• Two-Way IPS
• Infected Device Prevention and Blocking
VPN
Instant Guard
VPN Client L2TP
VPN Client Open VPN
VPN Client PPTP
VPN Client WireGuard
VPN Server IPSec
VPN Server Open VPN
VPN Server PPTP
VPN Server WireGuard
VPN Fusion
Traffic Control
Adaptive QoS
• Bandwidth Monitor
• Bandwidth Limiter
— Maximum Bandwidth Limiter Rule : 32
Traditional QoS
Traffic Monitor
• Real-time Traffic Monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor
Traffic Analyzer
• Traffic Analysis Period : Daily, Weekly, Monthly
• Website History
WAN
Internet Connection Type : Automatic IP, Static IP, PPPoE, PPTP, L2TP
Internet Connection Type : Internet Connection Type :
Internet Connection Type : • PPPoE
Internet Connection Type : • PPTP
Internet Connection Type : • L2TP
Internet Connection Type : • Automatic IP
Internet Connection Type : • Static IP
Internet Connection Type : • IPSec
Dual WAN
3G / 4G LTE Dongle
4G / 5G Auto Mobile Tethering
Port Forwarding
• Maximum Port Forwarding Rule : 64
Port Triggering
• Maximum Port Triggering Rule : 32
DMZ
DDNS
NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay
LAN
DHCP Server
IPTV
Manually Assign IP Address
• Maximum Manually Assign IP Address Rule : 128
Wake on LAN (WOL)
Wireless
MU-MIMO
UTF-8 SSID
WiFi MAC Address Filter
• Maximum MAC Filters : 64
Wireless Scheduler
Wi-Fi Radar
Airtime Fairness
RADIUS Client
Universal Beamforming
Explicit Beamforming
USB application
4G / 5G Auto Mobile Tethering
File System : HFS+, NTFS, vFAT, ext2, ext3, ext4
Safely Remove Disk
AiCloud
Download Master
AiDisk
Media Server
Time Machine
Samba Server
FTP Server
Shared Folder Privileges
User Interface
WEB: ASUSWRT
APP: ASUS Router APP
Operating system : ASUSWRT
Administration
Configuration Backup and Restore
Diagnosis Tools
Feedback System
System Log
New Device Connect Notification
Login Captcha
Connection Diagnosis
Auto Firmware Update
