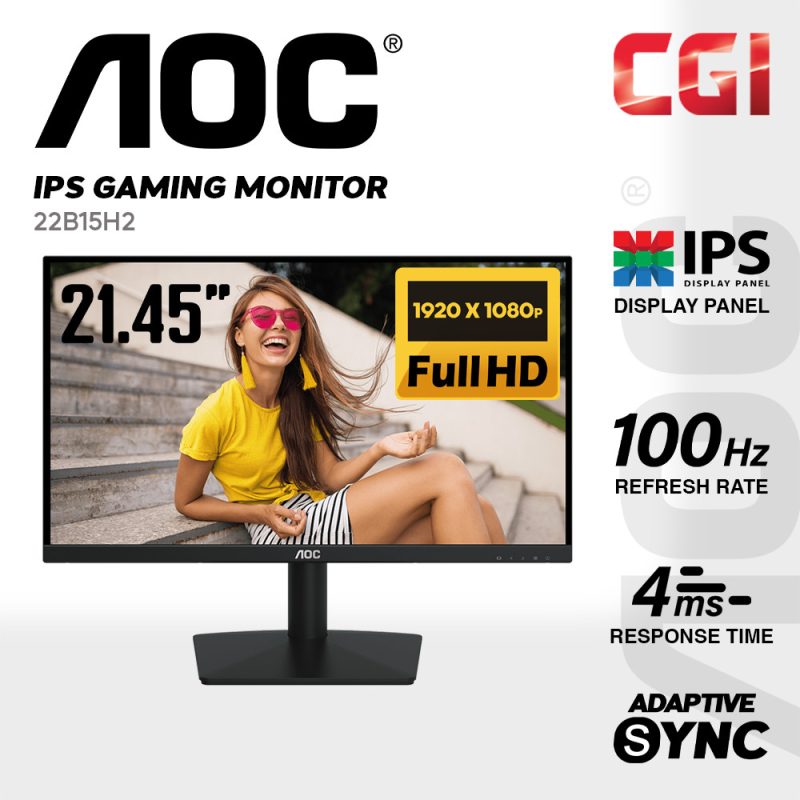

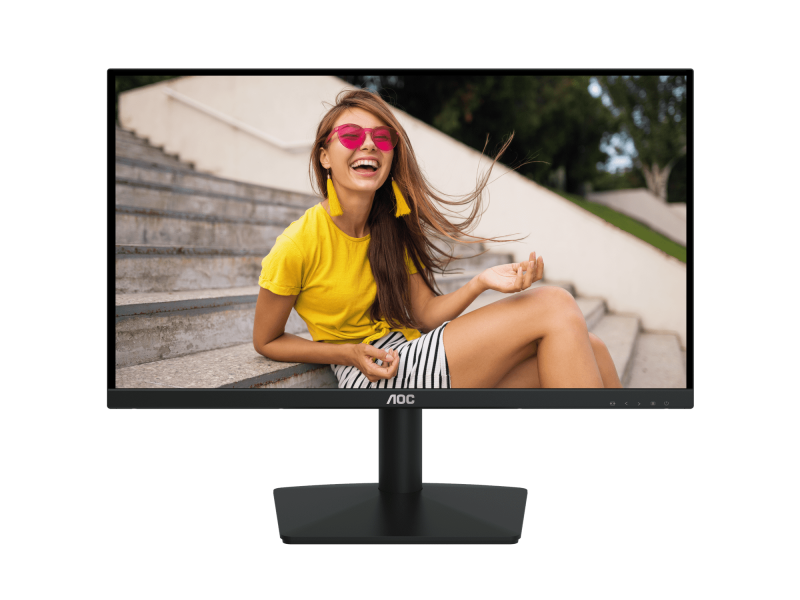

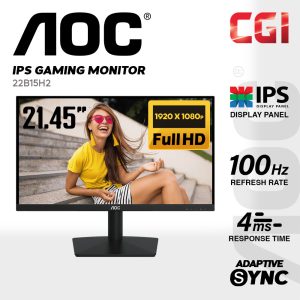

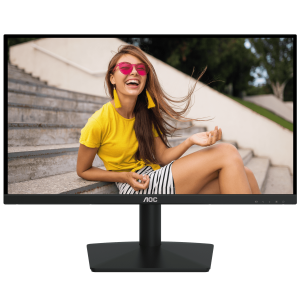

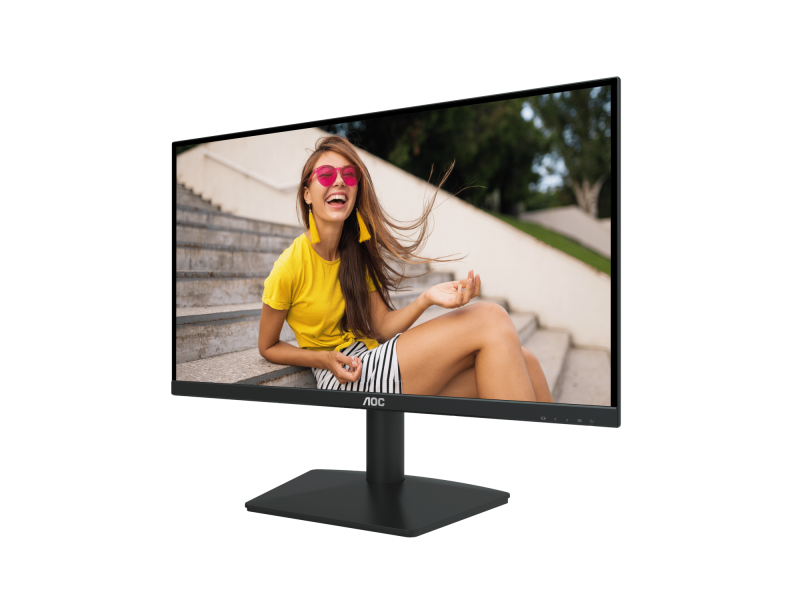

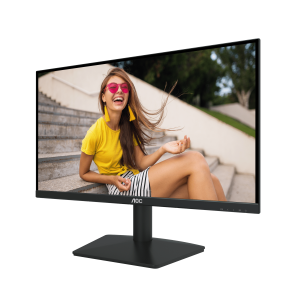

| Model name | 22B15H2 |
| Panel | 21.45" / IPS |
| Pixel Pitch (mm) | 0.2493 (H) × 0.241 (V) |
| Effective Viewing Area (mm) | 478.656 (H) × 260.28 (V) |
| Brightness (typical) | 250 cd/m² |
| Contrast Ratio | 1000 : 1 (typical) |
| Response Time | 4ms (GtG) |
| Viewing Angle | 178° (H) / 178° (V) (CR > 10) |
| Color Gamut | NTSC 92% (CIE1976) / sRGB 108% (CIE1931) |
| Color Accuracy | – |
| Optimum Resolution | 1920 × 1080 @ 100Hz – HDMI; 1920 × 1080 @ 75Hz – VGA |
| Display Colors | 16.7 Million |

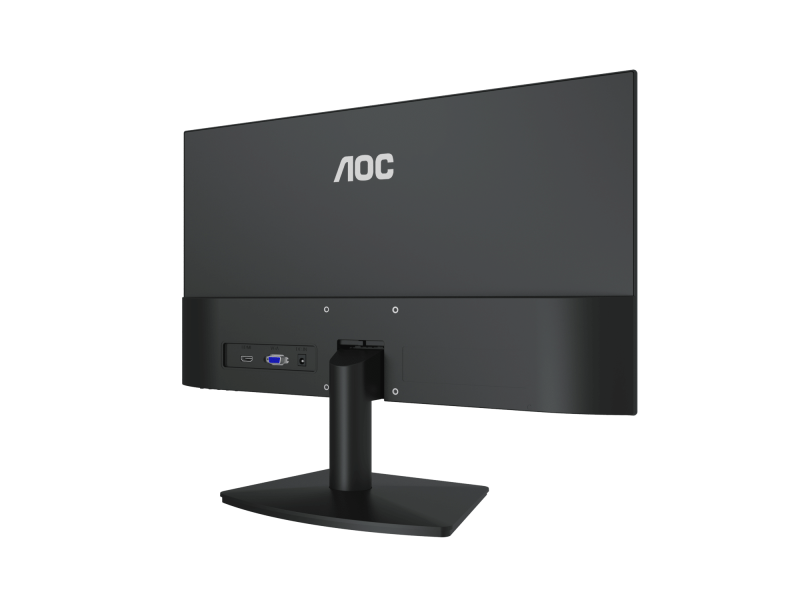

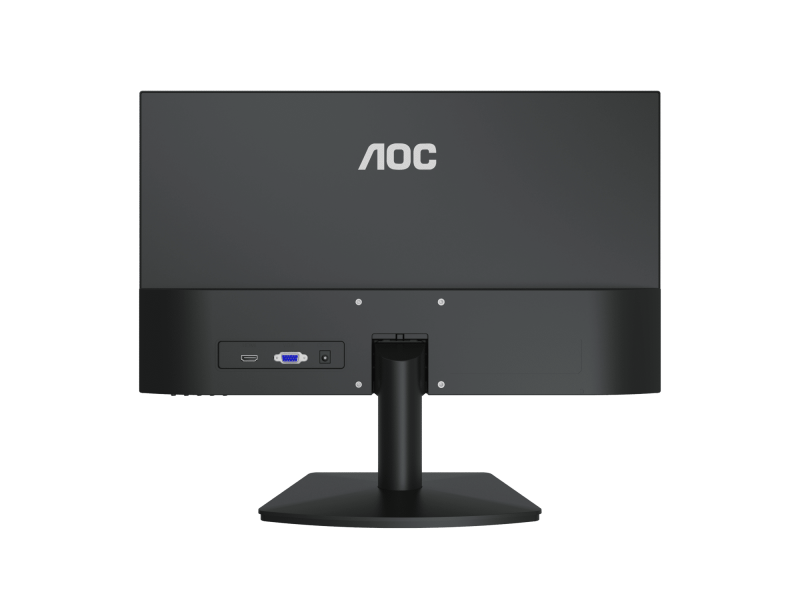

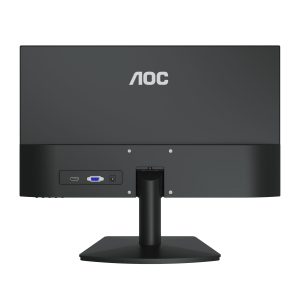

| Signal Input | VGA × 1, HDMI 1.4 × 1 |
| HDCP Version | – |
| USB Hub | No |
| Power Supply | External 12VDC, 2.0A |
| Power Consumption (typical) | 20.5W |
| Speakers | No |
| Line in & Earphone | No |
| Wall-Mount | 75mm x 75mm |

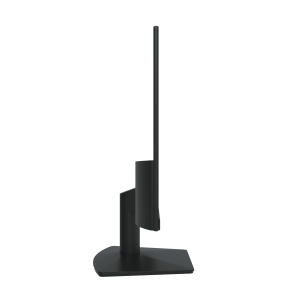

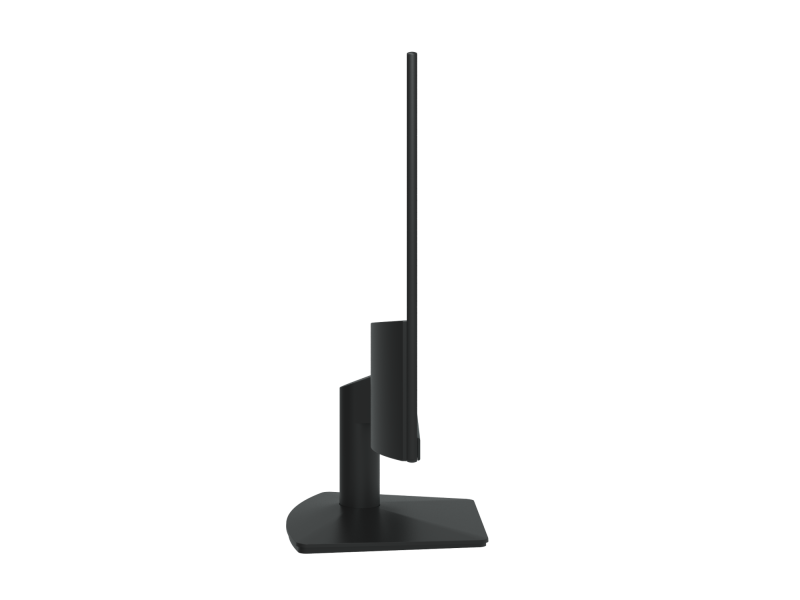

| Adjustable Stand | Tilt: -5° ~ 20° |
| Product without Stand (mm) | 492.3 (W) × 285.7 (H) × 35.3 (D) |
| Product with Stand (mm) | 492.3 (W) × 367.1 (H) × 184.8 (D) |
| Packaging (mm) | 565 (W) × 385 (H) × 115 (D) |
| Product without Stand (kg) | 1.8 |
| Product with Stand (kg) | 2.2 |
| Product with Packaging (kg) | 3.2 |
| Cabinet Color | Black |
| Regulatory Approvals | CE / RoHS |
