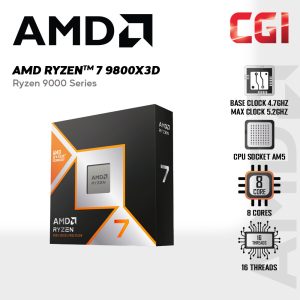

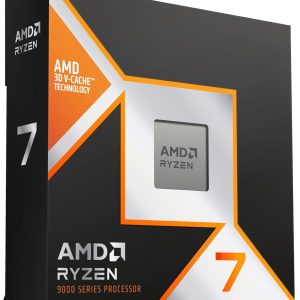

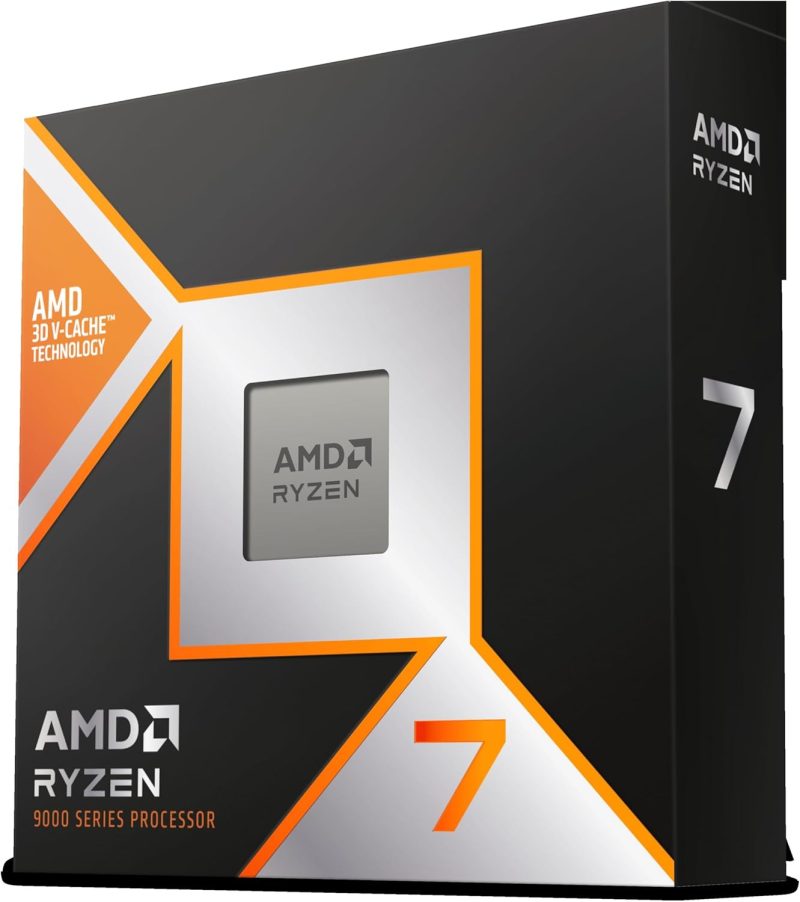

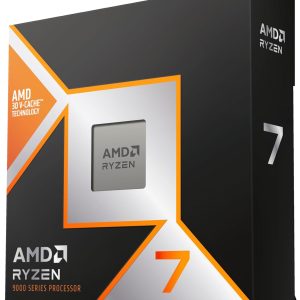

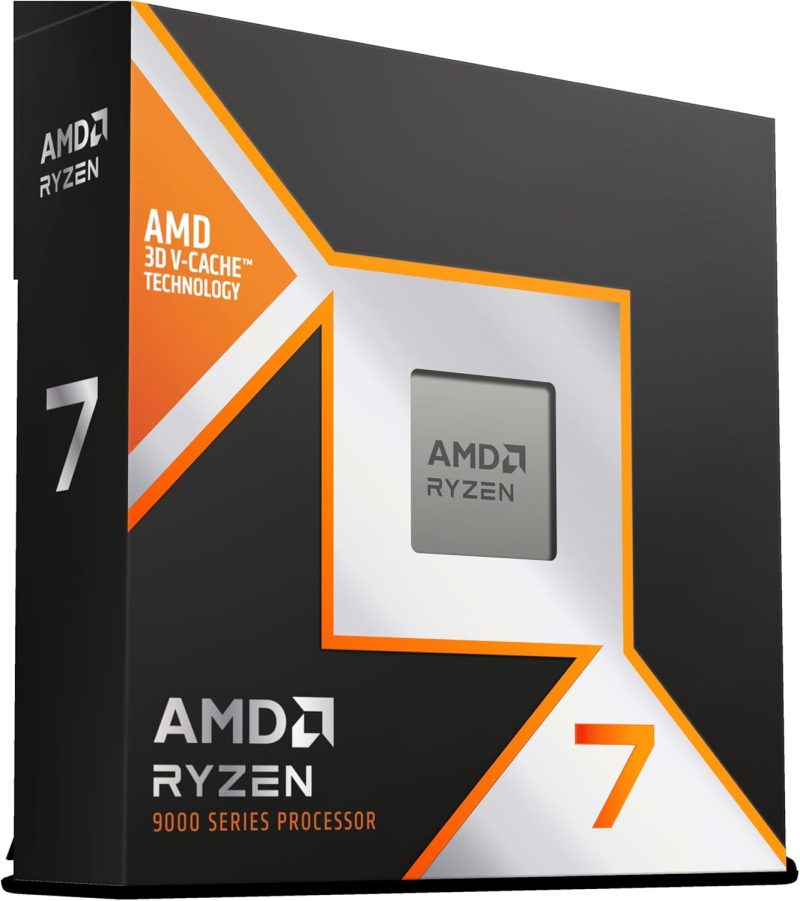

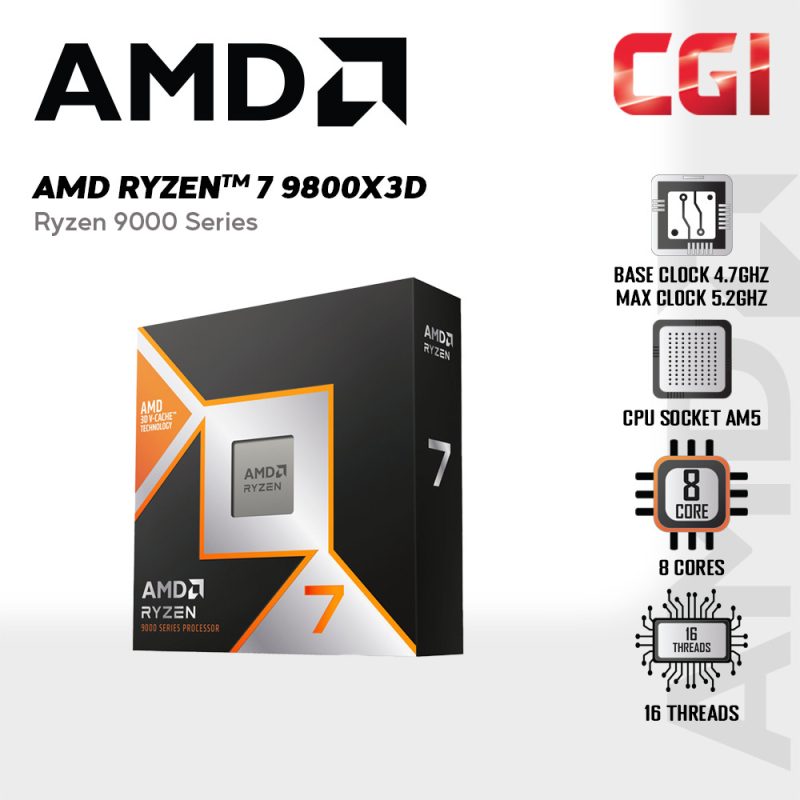

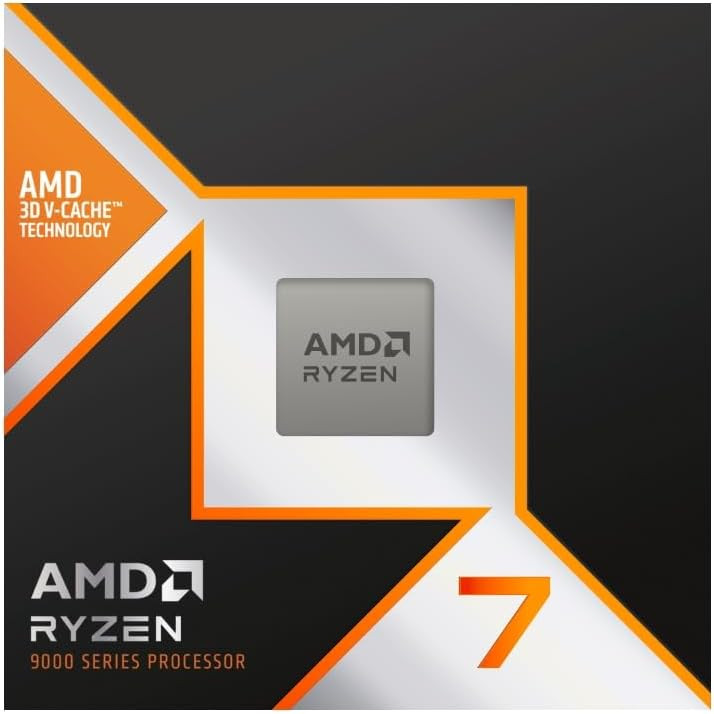

- Name : AMD Ryzen™ 7 9800X3D
- Family : Ryzen
- Series : Ryzen 9000 Series
- Form Factor : Desktops , Boxed Processor
- Market Segment : Enthusiast Desktop
- Regional Availability : Global
- Former Codename : Granite Ridge AM5
- Processor Architecture : Zen 5
- # of CPU Cores : 8
- Multithreading (SMT) : Yes
- # of Threads : 16
- Max. Boost Clock : Up to 5.2 GHz
- Base Clock : 4.7 GHz
- L1 Cache : 640 KB
- L2 Cache : 8 MB
- L3 Cache : 96 MB
- Default TDP : 120W
- Processor Technology for CPU Cores : TSMC 4nm FinFET
- Processor Technology for I/O Die : TSMC 6nm FinFET
- Package Die Count : 2
- Unlocked for Overclocking : Yes
- AMD EXPO™ Memory Overclocking Technology : Yes
- Precision Boost Overdrive : Yes
- Curve Optimizer Voltage Offsets : Yes
- AMD Ryzen™ Master Support : Yes
- CPU Socket : AM5
- Supporting Chipsets : A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850
- CPU Boost Technology : Precision Boost 2
- Instruction Set : x86-64
- Supported Extensions : AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
- Thermal Solution (PIB) : Not Included
- Recommended Cooler : Liquid cooler recommended for optimal performance
- Max. Operating Temperature (Tjmax) : 95°C
- Launch Date : 11/07/2024
- *OS Support : Windows 11 – 64-Bit Edition , Windows 10 – 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit
Connectivity
- Native USB 3.2 Gen 2 (10Gbps) : 4
- Native USB 2.0 (480Mbps) : 1
- PCI Express® Version : PCIe® 5.0
- Native PCIe® Lanes (Total/Usable) : 28 , 24
- NVMe Support : Boot , RAID0 , RAID1 , RAID5 , RAID10
- System Memory Type : DDR5
- Memory Channels : 2
- Max. Memory : 256 GB
- System Memory Subtype : UDIMM
- Max Memory Speed :
2x1R DDR5-5600
2x2R DDR5-5600
4x1R DDR5-3600
4x2R DDR5-3600 - ECC Support : Yes (Requires mobo support)
Graphic Capabilities
- Graphics Model : AMD Radeon™ Graphics
- Graphics Core Count : 2
- Graphics Frequency : 2200 MHz
- USB Type-C® DisplayPort™ Alternate Mode : Yes
