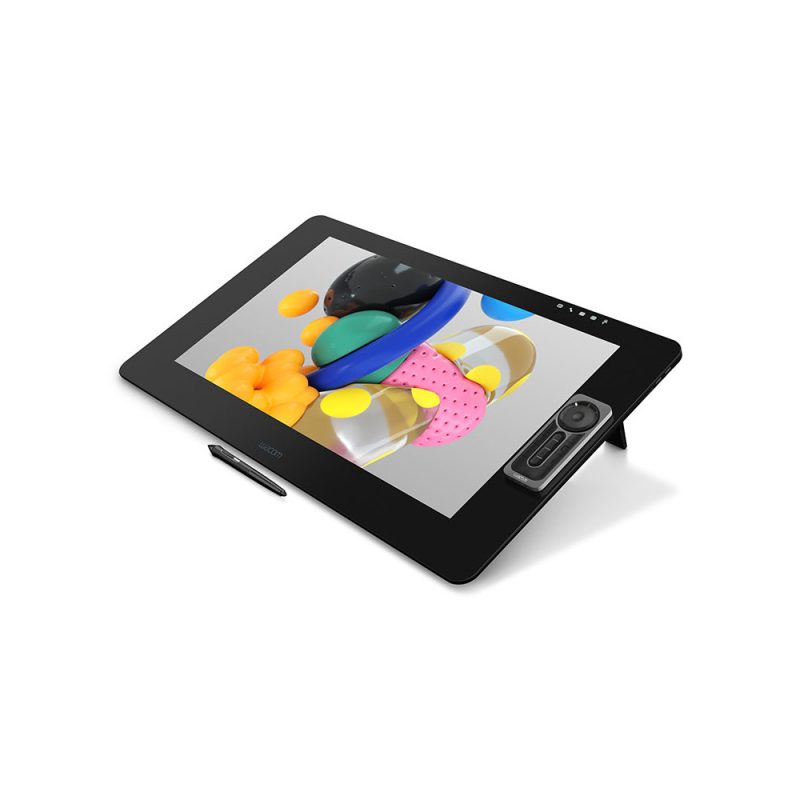

The Wacom Cintiq Pro 24 is an advanced creative pen display, designed to enhance every creative breakthrough.
Features
- Includes creative pen with tilt detection and 8,192 levels of pressure sensitivity.
- On-screen keypad, Radial Menu and the ExpressKey™ Remote for an intuitive experience.
- Virtually no jitter when using 4K screens with Adobe RGB 99% color performance.
- Etched glass screen reduces glare while providing a natural, pen on paper feel.
- Built-in legs raise your Wacom Cintiq Pro from 5° to 20°.
- Optional Wacom Ergo Stand lets you raise, tilt and rotate your Cintiq Pro to find the most natural position for you.
- Works with Wacom Flex Arm for flexible use across any desk.*
*Sold separately
Premium pen technology
Built for professionals
The creatives’ choice
What’s included
- Wacom Cintiq Pro 24 Pen Touch Only display
- Wacom Pro Pen 2 with color rings
- ExpressKey™ Remote (with USB-A RF dongle and 30cm micro-USB to USB charger cable)
- Pen stand with 10 replacement nibs (6 standard, 4 felt) and nib removal tool
- Pen holder
- 180W AC adaptor
- 1.8m power cable
- 1.8m USB-C to USB-C cable
- 3m DisplayPort to DisplayPort cable
- 3m HDMI2.0 to HDMI2.0 cable
- 3m standard USB-A to USB-A cable
- DisplayPort to Mini DisplayPort adapter
- Quick Start Guide
- Warranty card (Japan, Mainland China only)
- Regulation sheet
- Cleaning cloth
Compatibility
- PC: Windows® 7 or later (latest service pack/build) or Mac: OS X 10.11 or later (latest update)
- USB-C port with DisplayPort Alternate Mode (UHD), or Mini DisplayPort/DisplayPort (UHD) and USB-A, or HDMI 2.0 (UHD) and USB-A;
- Internet access for driver download
Full technical specifications
Tablet Information
Active area (mm)
522.432 x 293.868
Active area (inch)
20.55 X 11.57
Display Information
Screen size (approx.)
24"
Screen Resolution
4K
Color Depth
1.07 billion (10 bits)
Screen size
23.6"
Display resolution
4K Ultra HD: 3840 x 2160
Technology
AHVA UHD high brightness panel
Glass / surface
Edge-to-edge tempered glass with AG etching
Active area (mm)
522 X 294 mm
Active area (inch)
20.55 X 11.57 inch
Aspect ratio
16:9
Supported resolution
3840 x 2160
White luminance uniformity
95% (Min.) / 105%(Max). Condition: Uniformity compensation: Enable
Pixel pitch
0.136 (H) x 0.136 (V) mm
Viewing angle
Range Up to 88° from vertical 2° from horizontal
Color gamut coverage ratio
Adobe RGB at CIE1931Coverage Ratio: 99%
Contrast ratio
1000:1 (typ)
Response time (G2G)
14 ms (typ)
Pen Specification
Pen name
Wacom Pro Pen 2
Pen part number
KP-504E-00-DZX
Pen pressure levels
8192 (pen and eraser)
Pen type
Pressure-sensitive
Number of switches
2 side switches
Pen tilt supported
60 degrees
Pen resolution
5080 lpi
Pen technology
Electromagnetic resonance technology
Touch Specification
Multi-Touch
No
Connectivity
I/O Ports
4 x USB3 ports 1 x USB C port 1 x HDMI2.0 port 1 x DP port 2 USB-A Ports (one for ExpressKey Remote dongle)
Dimension And Weight
Product dimensions (L x W x H) (mm)
677 x 394 x 47 mm
Product dimensions (L x W x H) (inch)
26.65 x 15.5 x 1.9 inch
Product weight (kg)
7.2kg
