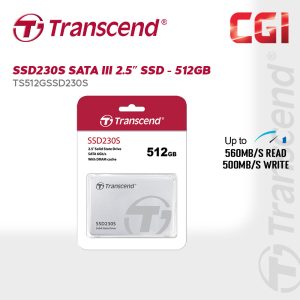

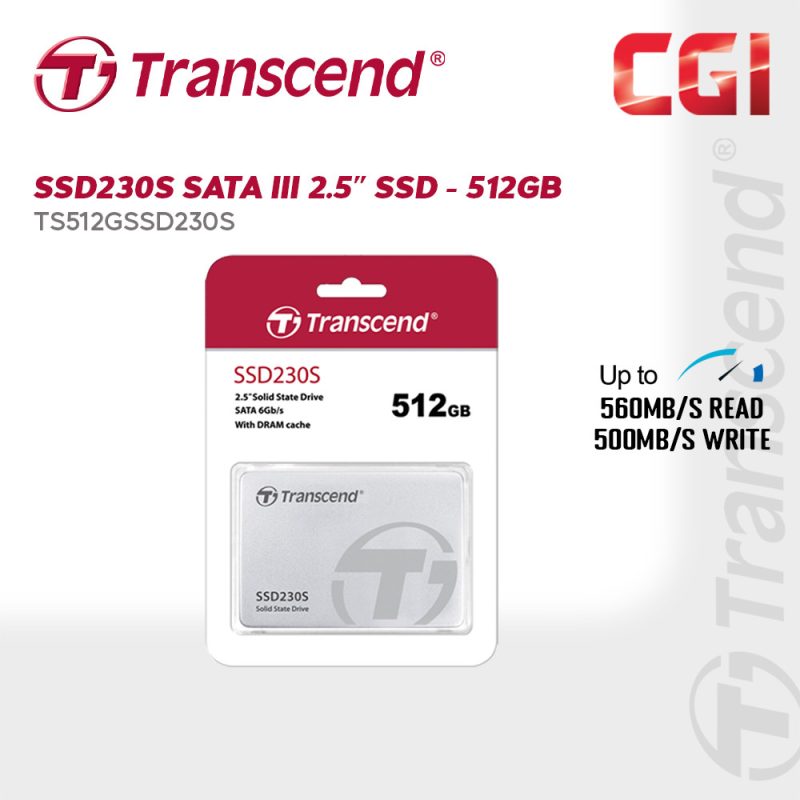

Transcend 2.5? 512GB SSD230S 3D NAND SATA III 6Gb/s SSD – TS512GSSD230S

Transcend's SATA III 6Gb/s SSD230S uses the latest 3D NAND technology that features vertical, stacked expansion of storage cells. By using high-quality flash memory and enhanced firmware algorithms, the SSD230S delivers greater performance and reliability.

• 3D expansion to break through limits

• Performance boost for everyday computing

• Guaranteed endurance and reliability

• A better choice than HDD

• SSD Scope software

• Guaranteed quality

Appearance

Dimensions100 mm x 69.85 mm x 6.8 mm (3.94" x 2.75" x 0.28")Weight53 g (1.87 oz)

Storage

Flash Type

• 3D NAND flash

Capacity

• 128 GB/
• 256 GB/
• 512 GB/
• 1 TB/
• 2 TB/
• 4 TB

Operating Environment

Operating Temperature0°C (32°F) ~ 70°C (158°F)Operating Voltage

• 5V±5%

Performance

Sequential Read/Write (CrystalDiskMark)

• 4 TB

  up to 560/520 MB/s

•

• 2 TB

  up to 560/520 MB/s

•

• 1 TB

  up to 560/500 MB/s

•

• 512 GB

  up to 560/500 MB/s

•

• 256 GB

  up to 530/400 MB/s

•

• 128 GB

  up to 560/380 MB/s

4K Random Read/Write (IOmeter)

• 4 TB

  up to 90,000/85,000 IOPS

•

• 2 TB

  up to 85,000/89,000 IOPS

•

• 1 TB

  up to 85,000/85,000 IOPS

•

• 512 GB

  up to 65,000/85,000 IOPS

•

• 256 GB

  up to 65,000/85,000 IOPS

•

• 128 GB

  up to 35,000/70,000 IOPS

Terabytes Written (TBW)

• 4 TB

  2,240 TBW

•

• 2 TB

  1,120 TBW

•

• 1 TB

  560 TBW

•

• 512 GB

  280 TBW

•

• 256 GB

  140 TBW

•

• 128 GB

  70 TBW

Mean Time Between Failures (MTBF)2,000,000 hour(s)Drive Writes Per Day (DWPD)0.3 (5 yrs)Note

• Speed may vary due to host hardware, software, usage, and storage capacity.
• The workload used to rate DWPD may be different from your actual workload, which may vary due to host hardware, software, usage, and storage capacity.
• Terabytes Written (TBW) expresses the endurance under the highest capacity.
• For Mac users please visit our Apple Solutions here.

Warranty

Certificate

• CE/
• FCC/
• BSMI/
• KC/
• RCM/
• UKCA

Warranty

• Five-year Limited Warranty

Warranty Policy

• Please click here for more information about the Transcend Warranty Policy.
• Warranty does not apply when SSD Scope's lifetime indicator displays 0% within the warranty coverage.

Package

Package Contents

• Full unit

System Requirement

Operating System

• Microsoft Windows 7 or later
• Linux Kernel 2.6.31 or later

Technology

TRIM & NCQ Command

S.M.A.R.T.

DDR3 DRAM Cache

Advanced Garbage Collection

DevSleep Mode

RAID Engine

LDPC Coding
