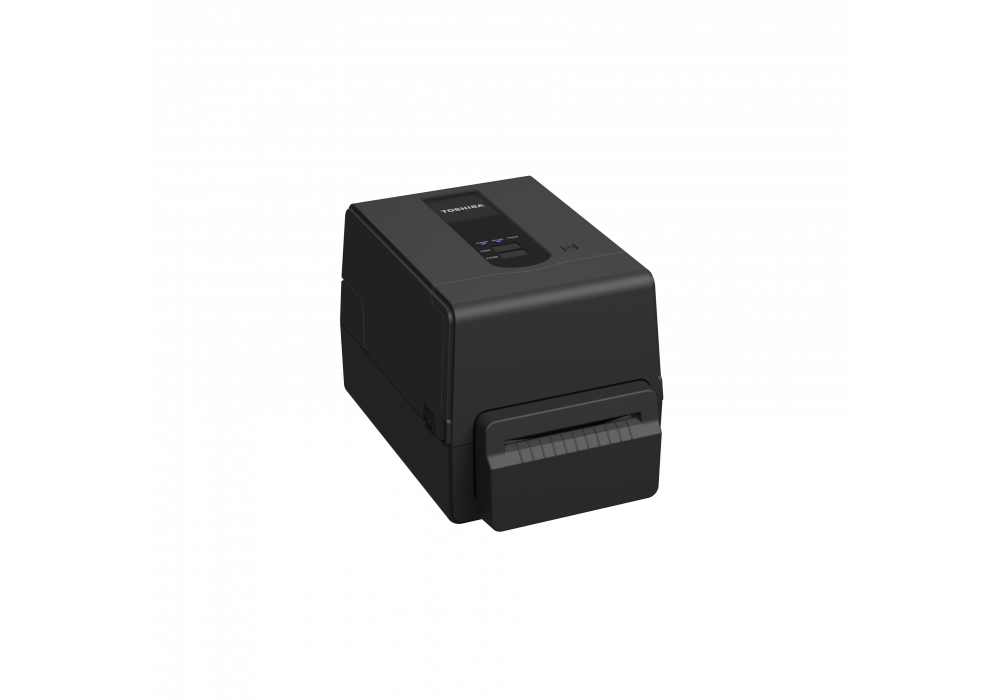

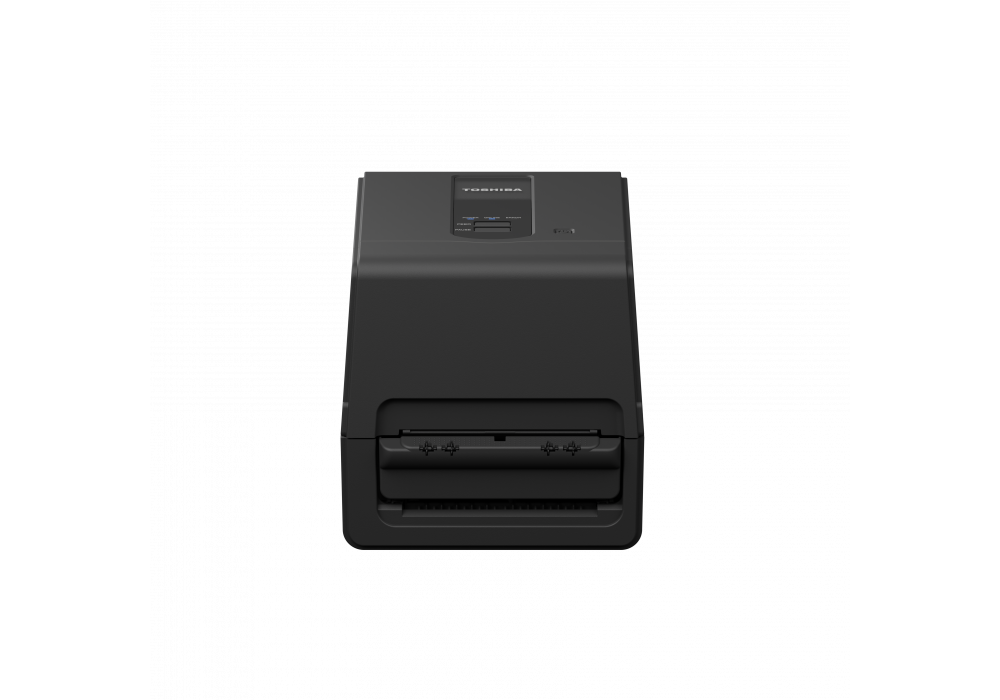

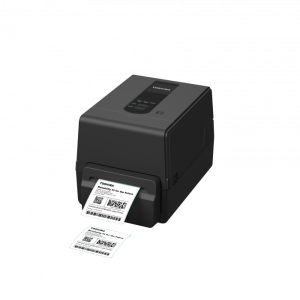

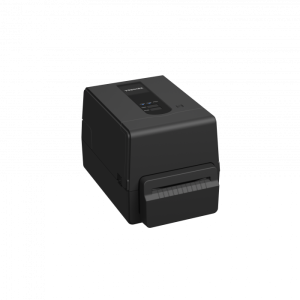

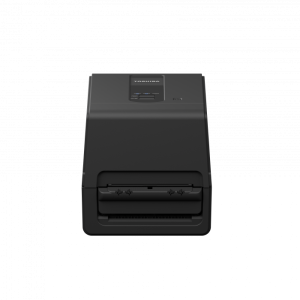

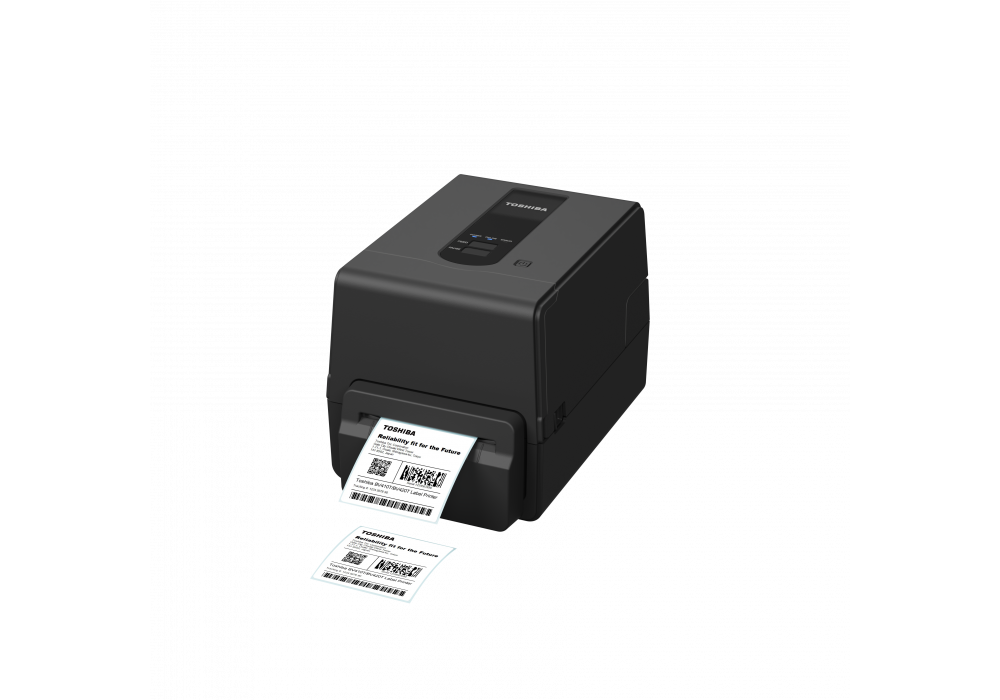

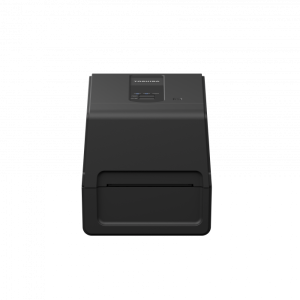

BV420T
The latest print technology incorporated into a sleek case design for ultimate user experience.
Coming with a new powerful and scalable system architecture the BV420T models are future-proove. With its ergonomic style and sleek casing these printers suit retail shops, offices or any type of workplace where space is at a premium. The BV420T thermal transfer printers support a wide range of ribbons from wax to resin.
- Market leading throughput with up to 7 ips
- Compact & sleek design with a small footprint
- Intuitive & clear user experience
- Vast print languages & emulations
- SOTI Connect certified for IoT device management
Specifications: BV420T
General
Print Method : Thermal transfer, direct thermal
Printhead : Flat head

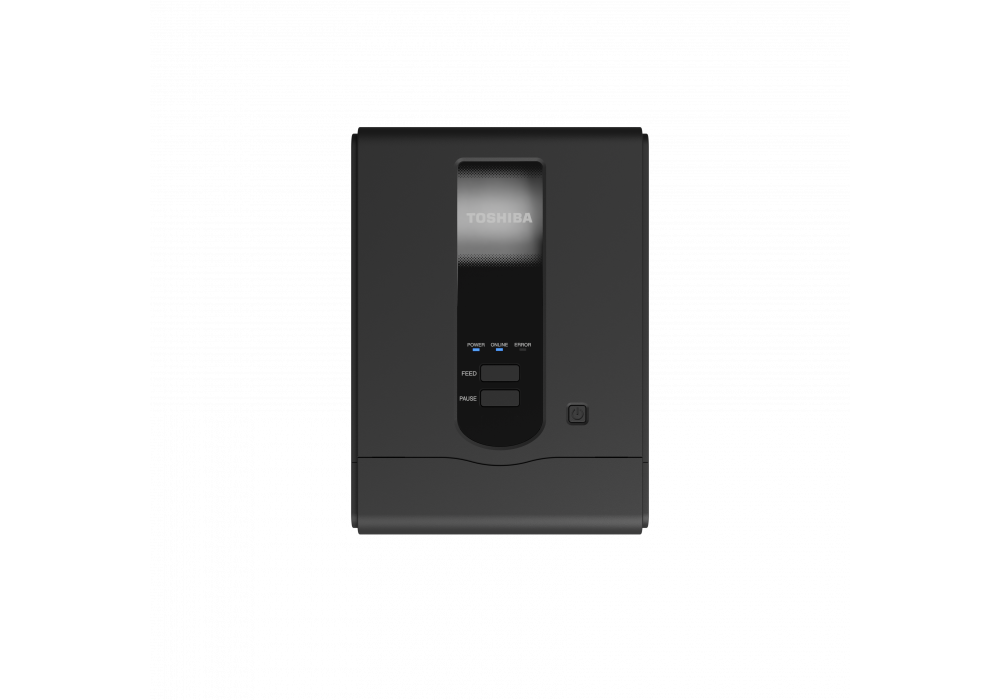

User Interface : 3x LED, 2x key
Dimensions (W x D x H) : 200 x 267 x 198.3 mm
Weight : 2.9 kg
Memory : 128 MB (FROM), 128 MB (SRAM)
Operating Temperature/Humidity : 5°-40°C (41°-104°F) / 25-85% non-condensing relative humidity (RH)
Storage Temperature/Humidity : -40°-60°C (-40°-140°F) / 10-90% non-condensing relative humidity (RH)
Power Supply : AC 100-240 V, 50/60 Hz
Sensor : Reflective, transmissive
Resolution : GS02: 203 dpi, TS02 300 dpi
Max. Print Speed : GS02: 7 ips (177.8 mm/s), TS02: 5 ips (127 mm/s)
Max. Print Width : GS02: 108 mm, TS02: 105.7 mm
Print length : Batch: 6-997.9 mm, Cut: 20.4-997.9 mm*, Peel-off: 21.4-148.4 mm*
Barcodes : UPC/EAN/JAN, Code 39, Code 93, Code 128, EAN 128, NW7, MSI, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, POSTNET, RM4SCC, KIX Code, Customer Barcode, GS1 DataBar, USPS Intelligent Mail Barcode
2D Codes : Data Matrix, PDF 417, MaxiCode, QR Code, Micro PDF 417, Micro QR, GS1 Data Matrix, GS1 QR Code, Aztec Code
Fonts : Bitmap font, outline font, price font, optional TTF, writable characters
Ribbons
Ribbon width : 40 – 110 mm
Ribbon Core Size : 25.4 mm (1"), 12.7 mm (0.5")
Max Ribbon Length : 300 m
Max ribbon roll diameter: 65 mm
Media
Alignment : Centred
Backing Paper Width : 25.4-118 mm
Label Thickness : 0.06-0.19 mm
Inner Media Core Diameter : Standard: 25.4, 38.1, 42 mm, Optional: 76.2 mm
Outer Media Roll Diameter : Standard: Max. 127.0 mm, Optional: Max. 214 mm
Media Format : Roll, fanfold
Software & Connectivity
Emulation : ZPL II, DPL, SBPL, EPL2, IPL
Printer Drivers : Windows 11/10, Windows Server 2019/2016/2012 R2/2012, SAP, Linux, macOS
SDK : iOS, Android, .NET
Interface : USB 2.0, USB Host, Ethernet 10/100 Base T (IPv4 & IPv6), WLAN 802,11a/b/g/n (dual band for 2.4 GHz/5 GHz)*/**, Bluetooth V5.2 BR/EDR with MFi certified*/**, serial port*
Language mode : TPCL, Basic Command Interpreter (BCI)
Label Software : BarTender UltraLite, NiceLabel Free
IoT Device Management : SOTI Connect
