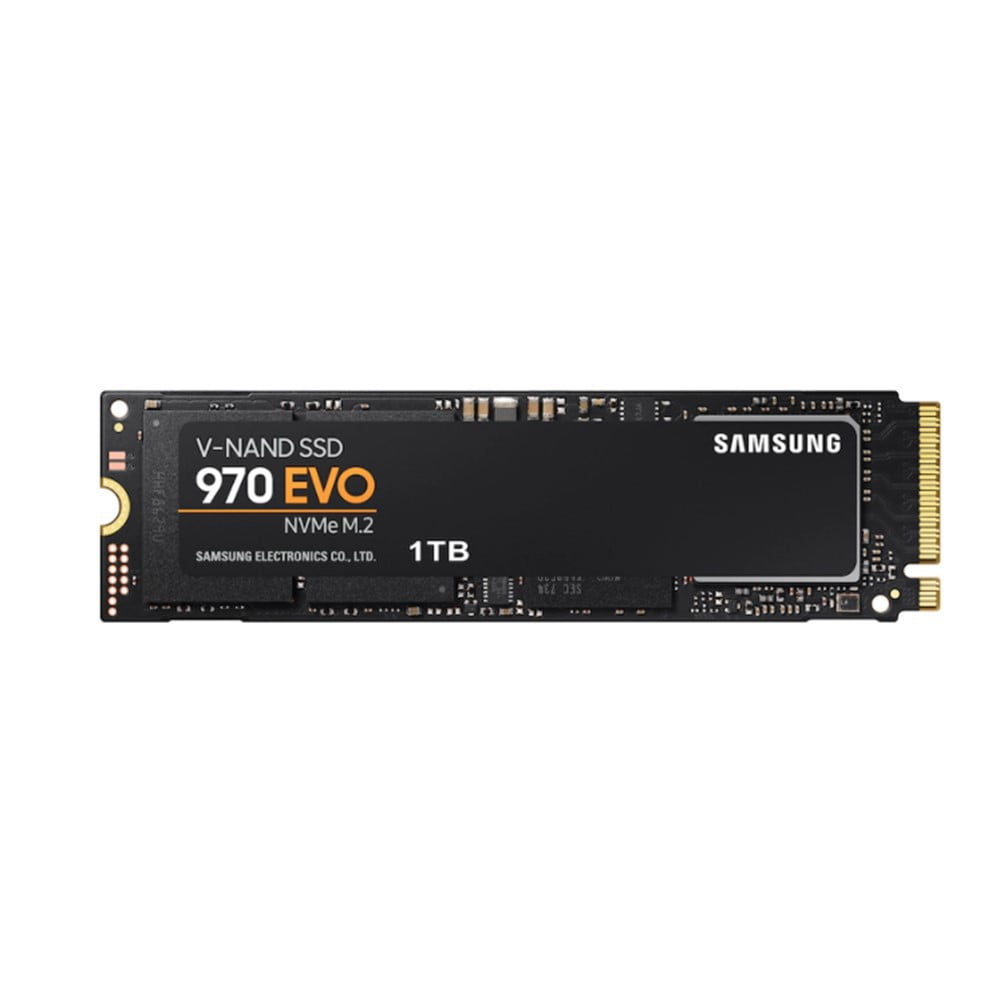

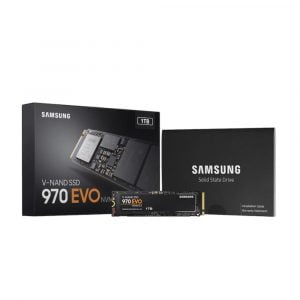

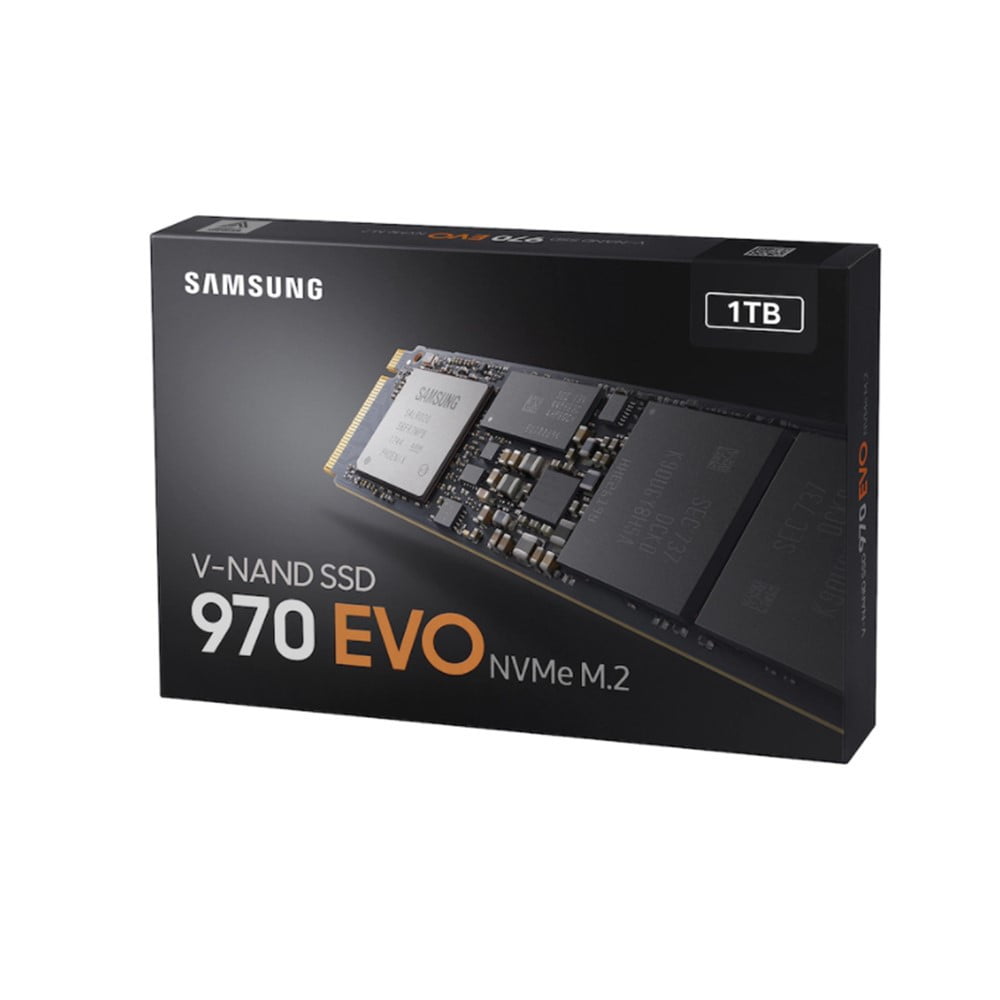

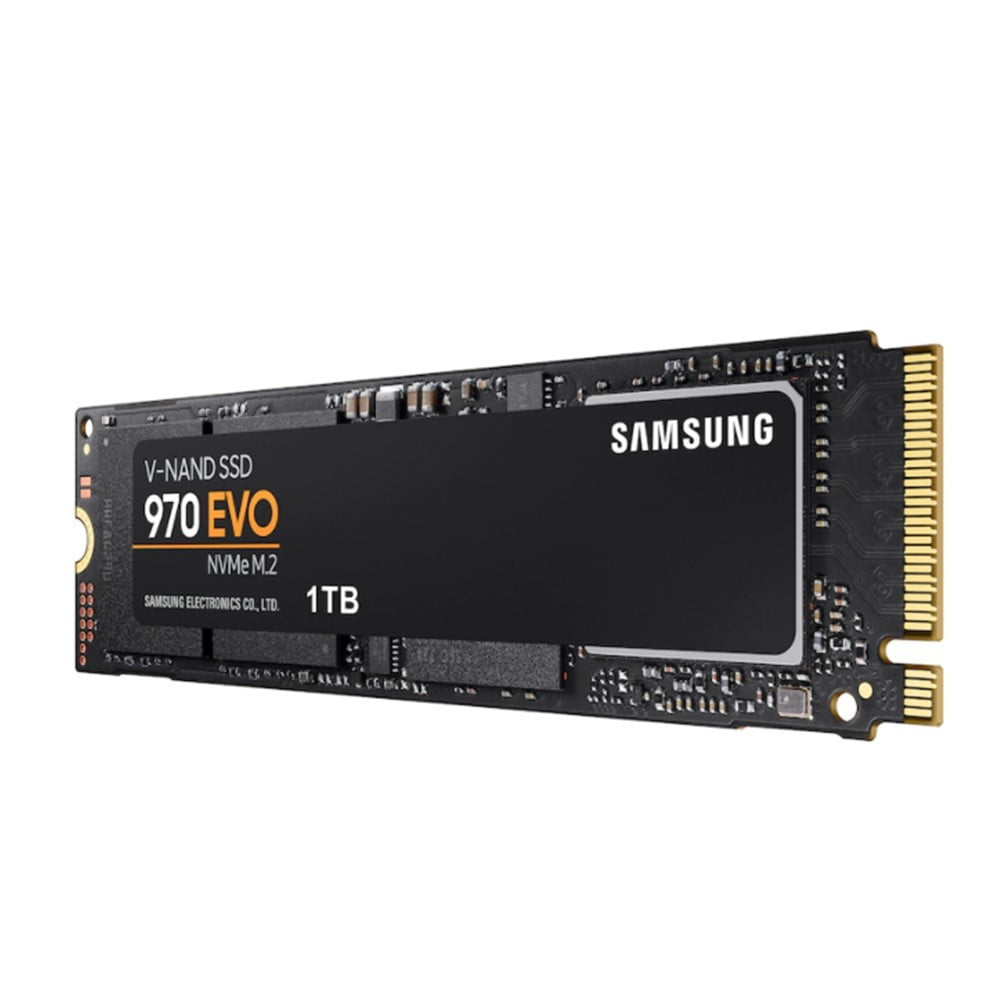

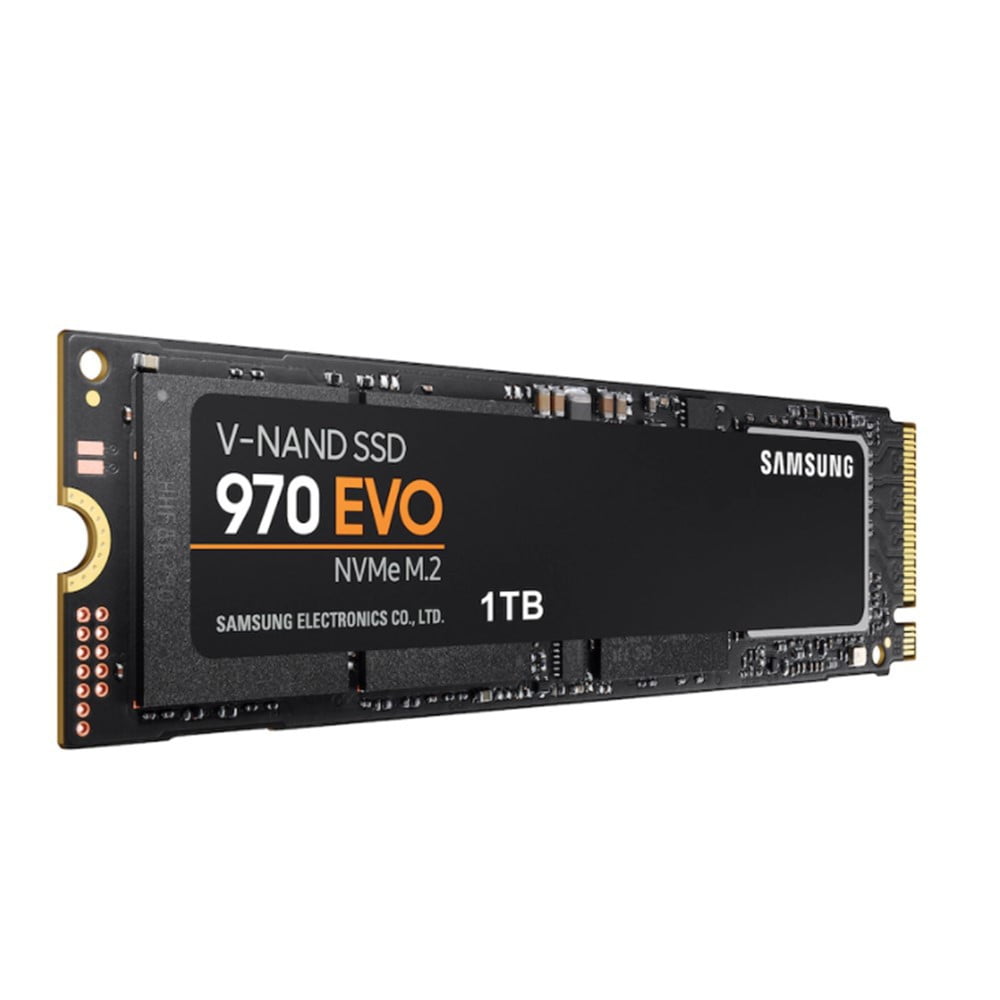

Samsung 970 EVO NVMe M.2 1TB SSD (MZ-V7E1T0BW)

Type
Storage
Key Features
General
Environmental Specs
Form Factor
Dimensions (W x H x D)
Weight
Software
Warranty

• Product Type

  NVMe SSD

  Storage Type

  Internal

  Interface

  PCIe Gen 3.0 x4, NVMe 1.3

  Read/Write Speeds

  3,400/2,500 MB/s

  Usage Application

  Client PCs

  Series

  SSD 970 EVO

• Capacity

  1TB

• Sequential Read Speed

  Up to 3,400 MB/s * Performance may vary based on system hardware & configuration

  Sequential Write Speed

  Up to 2,500 MB/s * Performance may vary based on system hardware & configuration

  Random Read Speed

  Random Read (4KB, QD32): Up to 500,000 IOPS Random Read
  Random Read (4KB, QD1): Up to 15,000 IOPS Random Read
  * Performance may vary based on system hardware & configuration

  Random Write Speed

  Random Write (4KB, QD32): Up to 450,000 IOPS Random Write
  Random Write (4KB, QD1): Up to 50,000 IOPS Random Write
  * Performance may vary based on system hardware & configuration

  Controller

  Samsung Phoenix Controller

  NAND Flash

  Samsung V-NAND 3-bit MLC

  Trim Support

  Supported

  AES Encryption

  AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)

  Security

  AES 256-bit Full Disk Encryption, TCG/Opal V2.0, Encrypted Drive (IEEE1667)

  S.M.A.R.T. Support

  Supported

  GC (Garbage Collection)

  Auto Garbage Collection Algorithm

  Device Sleep Mode Support

  Yes

  Internal Storage

  Yes

  Temperature proof

  Yes

  NVMe

  Yes

  Gaming SSDs

  Yes

• Average Power Consumption (system level)

  * Average: 6 W * Maximum: 10 W (Burst mode)
  * Actual power consumption may vary depending on system hardware & configuration

  Power consumption (Idle)

  Max. 30 mW
  * Actual power consumption may vary depending on system hardware & configuration

  Voltage

  3.3 V ± 5 % Allowable voltage

  Reliability (MTBF)

  1.5 Million Hours Reliability (MTBF)

• Operating Temperature

  0 – 70 ? Operating Temperature

  Shock

  1,500 G & 0.5 ms (Half sine)

• Product

  M.2 (2280)

• Product

  3.16" x 0.87" x 0.09"

• Product

  0.28oz.

• Management SW

  Magician Software for SSD management

• Product

  5-Year Limited Warranty or 600 TBW Limited Warranty
