Key Advantages

LED Indicator
– When the UPS is operational, the LED illuminates.
Compact Size
– Compact and light weight design, a perfect t to limited working space

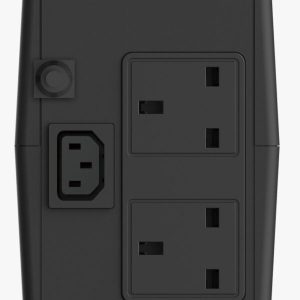

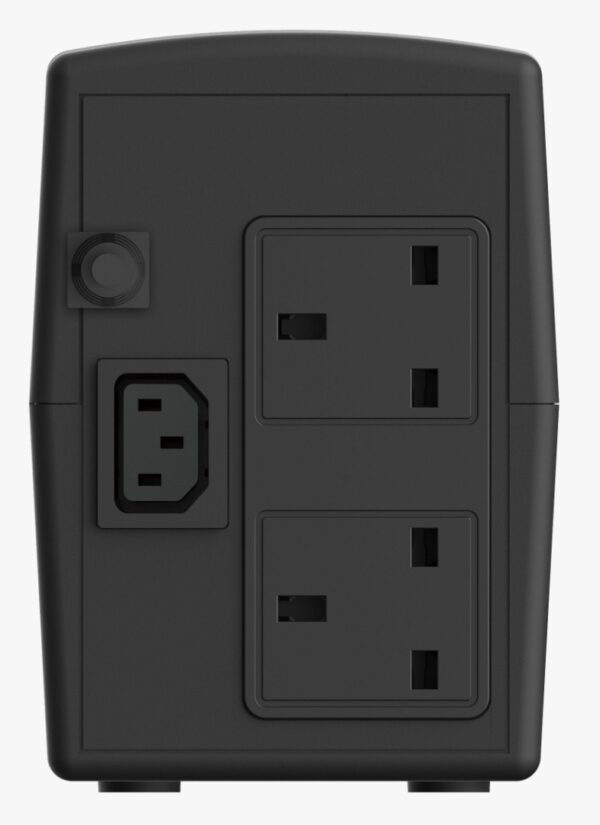

Output Socket
– Standard 2 x 13Amp British Socket come with Safety Window + 1 x IEC Output Socket
Built-in AVR
– Built-in AVR for voltage stabilization to provide clean and stable power to connected equipment. AVR
features help to correct high and low voltage without using battery power
Built-in EMI/RFI Noise Filter
– Built-in EMI/RFI noise lter for noise ltering and electromagnetic interference.
Lightning, Spike & Surge Protection
– Lightning, spike & surge protection during AC power surge or power spike to prevent damage

Technical Specication:
MODEL MiniCube 800
CAPACITY (VA) 800VA
INPUT VOLTAGE 220V / 230V / 240V
VOLTAGE RANGE 140 – 300VAC
FREQUENCY RANGE 50 or 60Hz (Auto-sensing)
OUTPUT VOLTAGE 220V / 230V / 240V ±10%
OUTPUT FREQUENCY 50 Hz or 60 Hz ±1Hz
WAVEFORM Simulated Sinewave
TRANSFER TIME (Typical) 2ms – 6ms
OUTPUT SOCKET 2 x 13Amp British Socket c/w Safety Window + 1 x IEC Output
OVERLOAD PROTECTION Internal Current Limit
SEALED LEAD ACID MAINTENANCE FREE BATTERY 12V 7AH x 1pc
BACK UP TIME (Depending on Load) 20 to 30 minutes
RECHARGE TIME 8 Hours to 90% After Complete Discharge
L.E.D INDICATOR Power On, Battery Mode
AUDIBLE ALARM Battery Mode, Low Battery, Overload, Fault
SPIKE, SURGE & LIGHTNING PROTECTION Yes
OVERLOAD, SHORT CIRCUIT PROTECTION Yes
OPERATING ENVIRONMENT 0-40°C, 0-90% Relative Humidity (Non-Condensing)
NOISE LEVEL Less Than 40dB
DIMENSION (D x W x H) mm 286 x 96 x 138
WEIGHT (KG) 4.3
UPS Warranty
3 Years Full Warranty Include Parts & Labour
2 Years Warranty for Battery
