Specifications
Picture/Display
Panel Size: 24.5 inch / 62.23 cm
Aspect ratio: 16:9
LCD panel type: IPS technology
Backlight type: W-LED system
Pixel pitch: 0.0944mm (H) X 0.2802mm (V)
Brightness: 350 cd/m2
Display colors: 16.7 M (RGB 8 bit)
Color gamut (typical): DCI-P3 92%, AdobeRGB
89%, sRGB 120%, NTSC 100% *
Contrast ratio (typical): 1000:1
SmartContrast: Mega Infinity DCR
Response time (typical): 1 ms (Gray to Gray)*
Viewing angle: 178o (H) / 178o (V), @ C/R > 10
Picture enhancement: SmartImage game
Maximum resolution: HDMI: 1920 x 1080 @ 240
Hz; DP: 1920 x 1080 @ 280 Hz (Overclock )*,
8bits, RGB/444
Effective viewing area: 543.744mm(H) x
302.616mm(V)
Scanning Frequency: HDMI: 30 – 270 kHz (H) / 23
– 240 Hz (V); DP: 30 – 270 kHz (H) / 48 – 280 Hz (V)
sRGB
Delta E: < 2 (sRGB)
Flicker-free
Pixel Density: 89 PPI
LowBlue Mode
Display Screen Coating: Anti-Glare, 3H, Haze
25%
Low Input Lag
EasyRead
Adaptive sync
HDR: HDR 400
Smart Crosshair
Shadow Boost

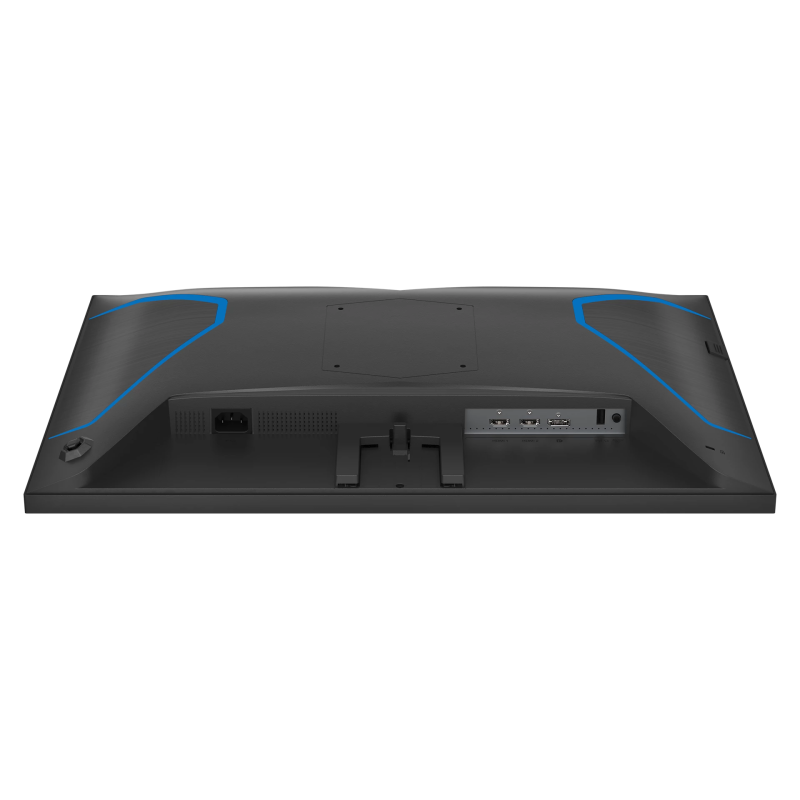

Connectivity
Signal Input: HDMI 2.0 x 2, DisplayPort 1.4 x 1
Sync Input: Separate Sync
Audio (In/Out): Headphone out
HDCP: HDCP 1.4 (HDMI / DisplayPort), HDCP 2.2
(HDMI / DisplayPort)
USB Hub: USB-A only to the FW update

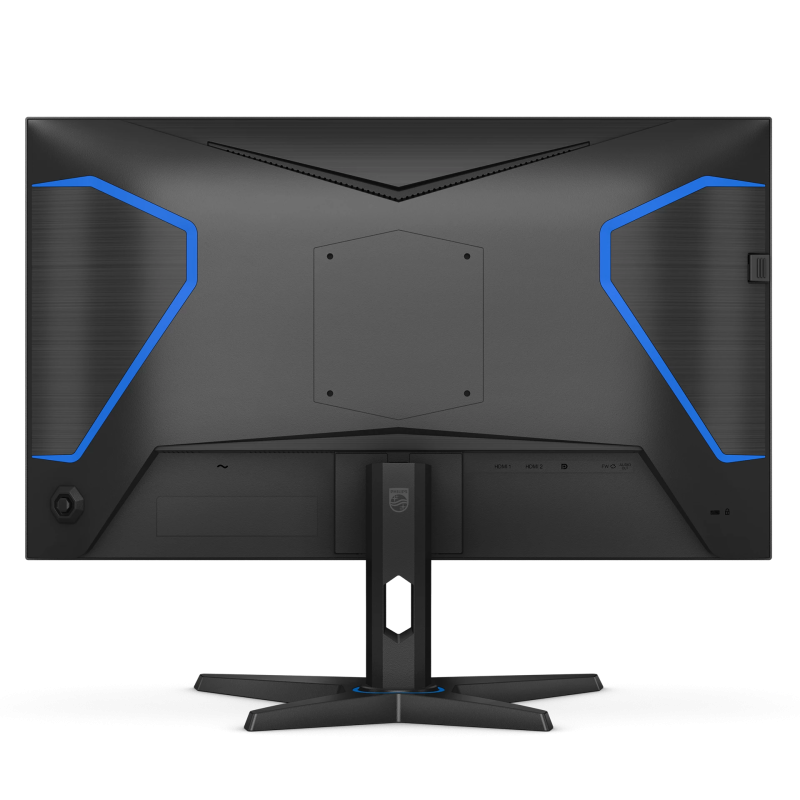

Other convenience: Kensington lock, VESA
mount (100x100mm)

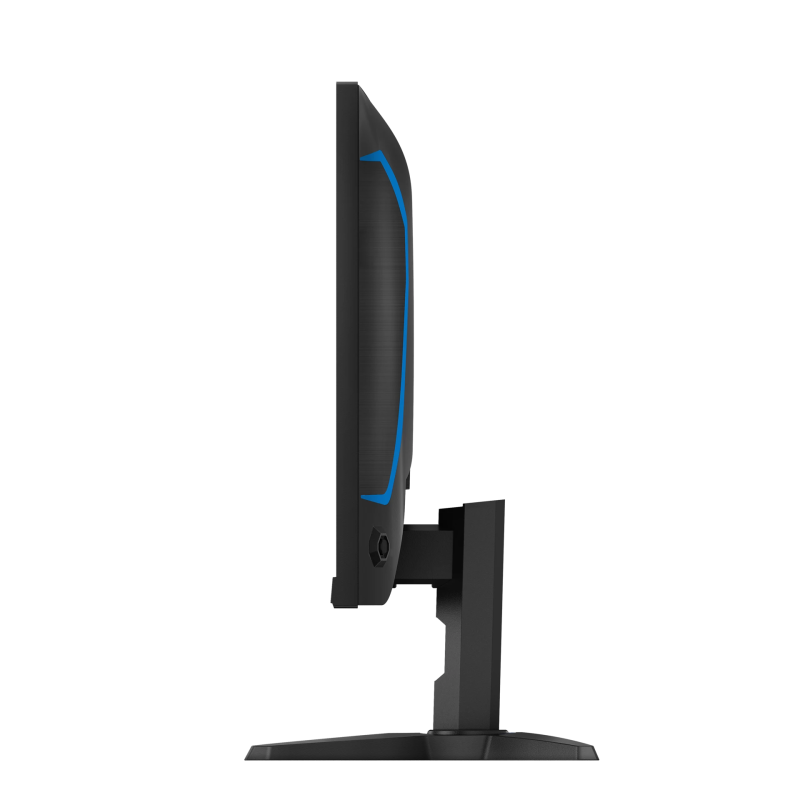

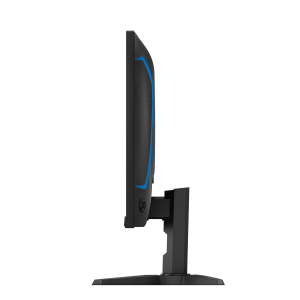

Stand
Tilt: -5/20 degree
Power
Power supply: Internal, 100-240VAC, 50-60Hz
Off mode: 0.3 W (typ.)
On mode: 27.5 W (typ.)
Standby mode: 0.5 W (typ.)
Power LED indicator: Operation – White, Standby
mode- White (blinking)
Dimensions
Packaging in mm (WxHxD): 696 x 444 x 177 mm
Product without stand (mm): 556.8 x 330.7 x
57.9 mm
Product with stand(max height): 556.8 x 438.4 x
244.8 mm
Weight
Product with packaging (kg): 7.6 kg
Product with stand (kg): 4.4 kg
Product without stand (kg): 3.7 kg
Operating conditions
Altitude: Operation: +12,000ft (3,658m), Non-
operation: +40,000ft (12,192m)
Temperature range (operation): 0°C to 40 °C
MTBF: 30,000 (Excluded backlight) hour(s)
Relative humidity: 20%-80 %
Temperature range (storage): -20°C to 60 °C
Sustainability
Environmental and energy: China RoHS
Recyclable packaging material: 100 %
Specific Substances: PVC / BFR free housing
Compliance and standards
Regulatory Approvals: CCC, CECP, CEL
Cabinet
Color: Black
Finish: Textured
