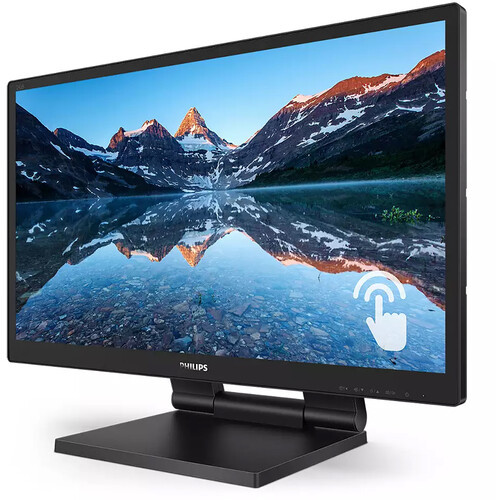

Picture/Display
• Panel Size: 23.8 inch / 60.5 cm
• Aspect ratio: 16:9
• LCD panel type: IPS technology
• Backlight type: W-LED system
• Pixel pitch: 0.275 x 0.275 mm
• Optimum resolution: 1920 x 1080 @ 60Hz
• Brightness: 250 cd/m²
• Display colors: 16.7 M
• Color gamut (typical): NTSC 72% (CIE 1931)
• Contrast ratio (typical): 1000:1
• SmartContrast: 50,000,000:1
• Response time (typical): 5 ms (Gray to Gray)*
• Viewing angle: 178º (H) / 178º (V), @ C/R > 10
• Picture enhancement: SmartImage
• Effective viewing area: 527 (H) x 296.5 (V)
• Scanning Frequency: 30 – 85 kHz (H) / 48 – 75 Hz
(V)
• sRGB
• Flicker-free
• Pixel Density: 93 PPI
• LowBlue Mode
• EasyRead

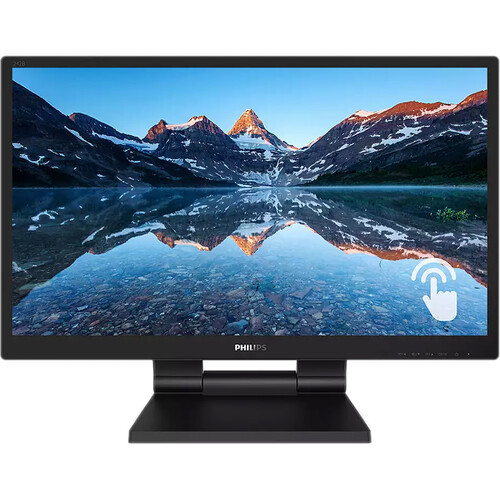

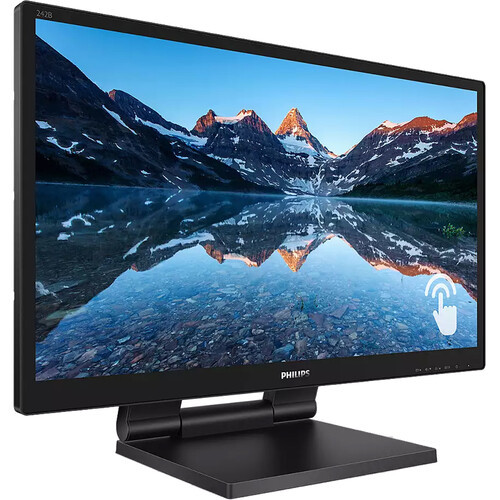

Touch
• Ingress protection: IP65 – front only
• Operating system: Windows 10 / 8.1 / 8 / 7;
Android 7.1 / 7.0 / 6.0 / 5.0 / 4.4; certain Linux
versions*
• Sealability: Touchscreen sealed to bezel;
Touchscreen sealed to LCD
• Touch active area: 527 mm (H) x 296.5 mm (V)
• Touch glass hardness: 7 H
• Touch interface: USB
• Touch method: Stylus, Finger, Glove*
• Touch points: 10 point
• Touch technology: Projected capacitive
• Palm rejection area: >= 30 x 30 mm
• Touch glass coating: Glare

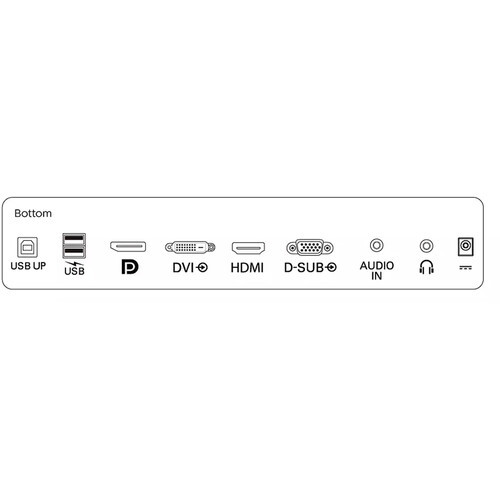

Connectivity
• Signal Input: VGA (Analog ), DVI-D (digital,
HDCP), DisplayPort 1.2, HDMI 1.4
• USB: USB 3.1×2 (1 w/fast charging)*
• Sync Input: Separate Sync, Sync on Green
• Audio (In/Out): PC audio-in, Headphone out
• HDCP: HDCP: HDCP 1.4 (HDMI / DP / DVI)
Convenience
• Built-in Speakers: 2 W x 2
• Plug & Play Compatibility: DDC/CI, sRGB,

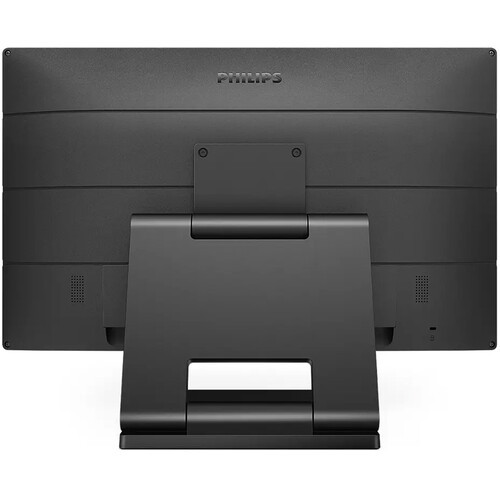

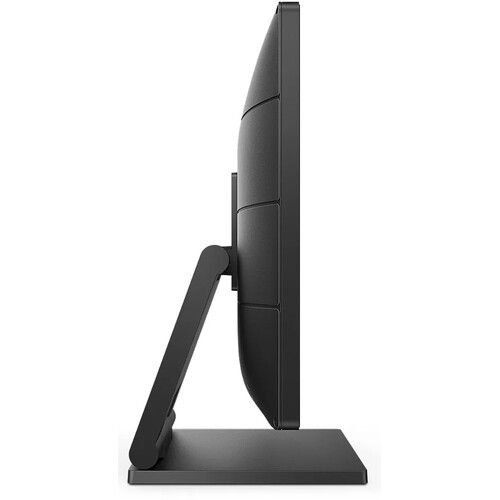

Stand
• Height adjustment: 184 (Horizontal), 75
(Vertical) mm
• Tilt: -5 ~ 90 degree
• Folding angle: 0 ~ 70 degree
Dimensions
• Packaging in mm (WxHxD): 620 x 433 x 168 mm
• Product without stand (mm): 554 x 338 x 50 mm
• Product with stand(max height): 554 x 413 x
227 mm
Weight
• Product with packaging (kg): 11.06 kg
• Product with stand (kg): 8.15 kg
• Product without stand (kg): 4.86 kg
