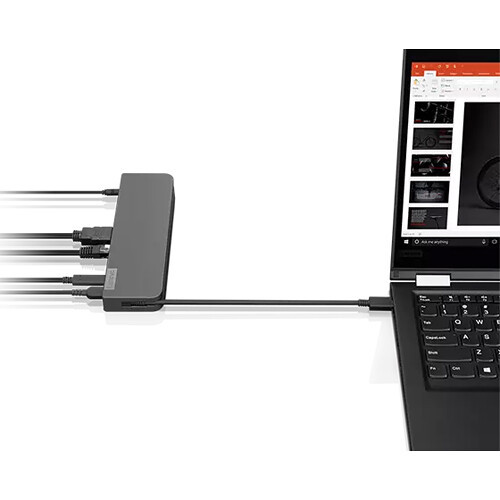

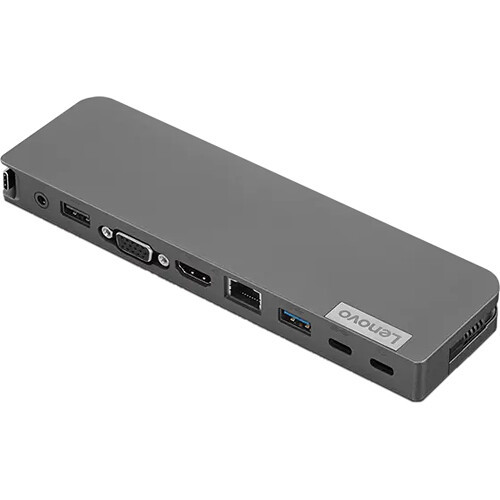

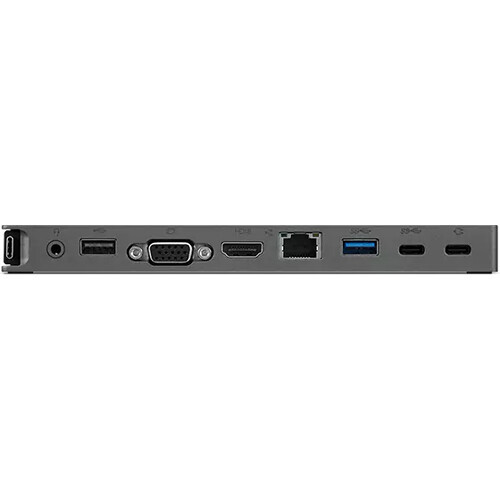

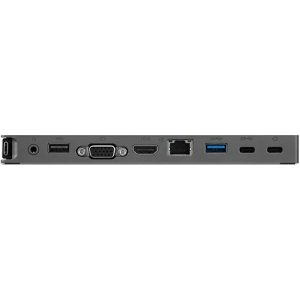

Expand the capabilities of your USB Type-C compatible laptop with the 8-in-1 USB Type-C Mini Dock from Lenovo. Designed with high versatility in mind, this plug-and-play dock is built to work with most USB 3.1 Type-C computer systems, regardless of the operating system. Connecting it adds one USB 3.1 Type-A port and a USB Type-C port, both of which can transfer data at up to 5 Gb/s with compatible devices. This mini dock also supports one external monitor to provide a larger viewing space for presentations or enhanced multitasking. A 3840 x 2160 resolution 4K display may be connected to the HDMI 2.0 port, or you can use a 1920 x 1080 screen with the VGA output. There's also a USB Type-C power passthrough port that delivers up to 45W of power using the included power adapter to help keep your compatible laptop charged. Other features include a 3.5mm headset jack, a USB 2.0 Type-A port, and a Gigabit Ethernet port that allows you to connect to compatible wired networks.
Plug-and-Play
Simply plug the integrated cable into your laptop's USB 3.1 Gen 1 Type-C port to get started. No specialized software or drivers are required.
Enterprise Networking and Security
The Lenovo USB Type-C mini dock supports advanced network manageability features such as PXE and Wake-On LAN. Using it with select Lenovo ThinkPad systems with MAC address passthrough support helps IT administrators to quickly identify the system in large networks.
Portable Design

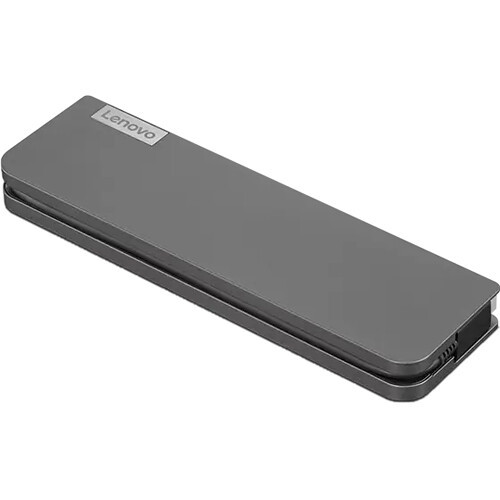

The mini dock's integrated connector cable securely locks into a built-in holder, allowing you to quickly pack it away in a bag or pocket for easy travel.
| USB I/O |
1x USB-C 3.0 / 3.1/3.2 Gen 1 |
| Network I/O |
1x RJ45 (10/100/1000 Mb/s) |
| Video I/O |
1x HDMI 2.0 |
| Audio I/O |
1x 1/8" / 3.5 mm Headphone/Microphone Combo Jack |
| Media Card Reader |
No |
Host Connections
| System Connection |
USB-C 3.0 / 3.1/3.2 Gen 1 |
| Connection Type |
Integrated Cable |
| Powered Connection |
45 W |
General
| Number of Displays Supported |
1 |
| Maximum Resolution Supported |
3840 x 2160 at 60 Hz |
| UASP Support |
Yes |
Power
| Power Source |
AC Adapter, Bus Powered |
| Power I/O |
USB-C (Input) |
Environmental
| Operating Temperature |
23 to 104°F / -5 to 40°C |
| Operating Humidity |
20 to 95% |
Physical
| LED Indicator |
No |
| Lock Slot |
No |
| Dimensions |
7.1 x 2.1 x 0.7" / 180 x 53 x 17 mm |
| Weight |
5.5 oz / 156 g |
Packaging Info
| Package Weight |
1.25 lb |
| Box Dimensions (LxWxH) |
8.5 x 4.5 x 2.4" |
