Specifications :
CL(IDD) : 46 Cycles
Row Cycle Time (tRCmin) : 48ns(min.)
Refresh to Active/Refresh :295ns(min.)
Command Time (tRFCmin)
Row Active Time (tRASmin) : 32ns(min.)
UL Rating : 94 V – 0
Operating Temperature : 0o C to +85oC
Storage Temperature : -55oC to +100oC

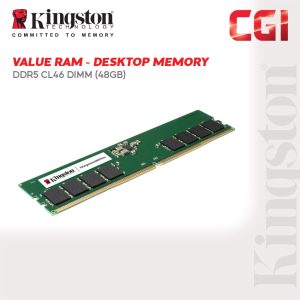

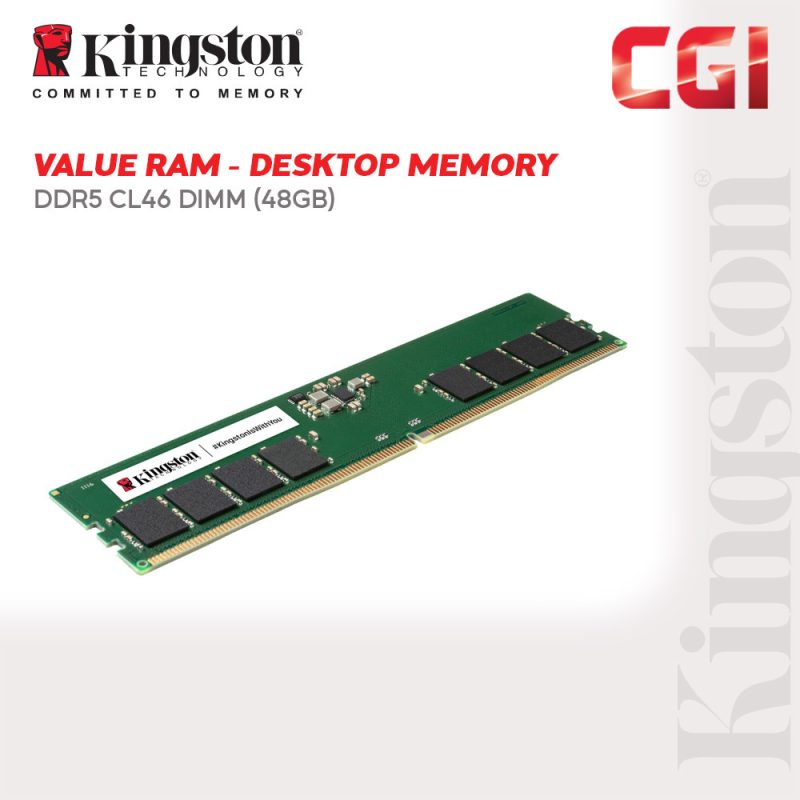

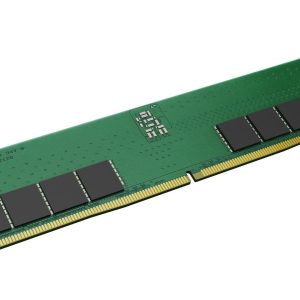

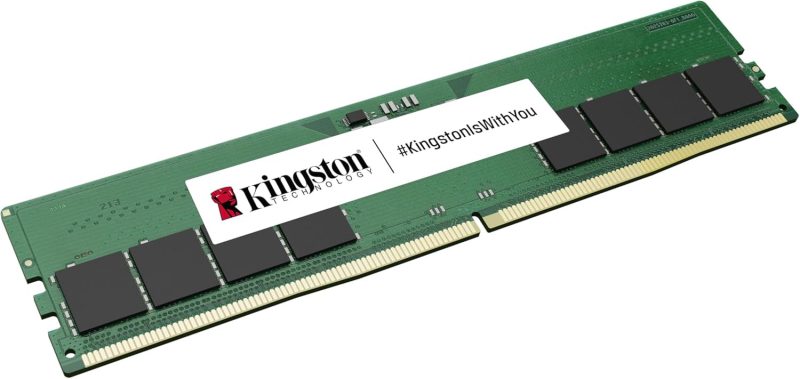

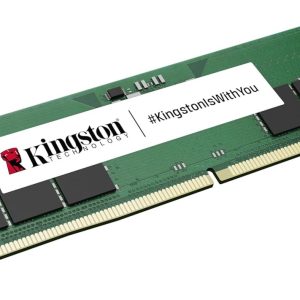

Kingston KVR56U46BD8-48 48GB DDR5-5600 CL46 288-Pin DIMM
Original price was: RM699.RM659Current price is: RM659.This document describes ValueRAM's KVR56U46BD8-48 is a 6G x 64-bit (48GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 2Rx8, memory module, based on sixteen 3G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:
• Power Supply: VDD = 1.1V Typical
• VDDQ = 1.1V Typical
• VPP = 1.8V Typical
• VDDSPD = 1.8V to 2.0V
• On-Die ECC
• PCB: Height 1.23” (31.25mm)
• RoHS Compliant and Halogen-Free
10 in stock
| Weight | 0.3 kg |
|---|---|
| Dimensions | 15 × 5 × 3 cm |
