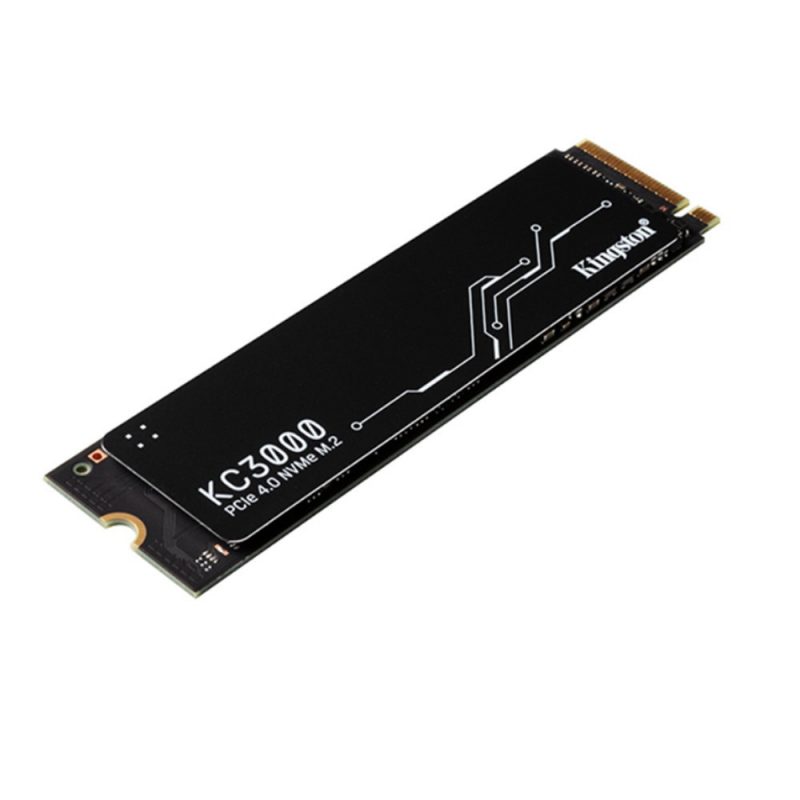

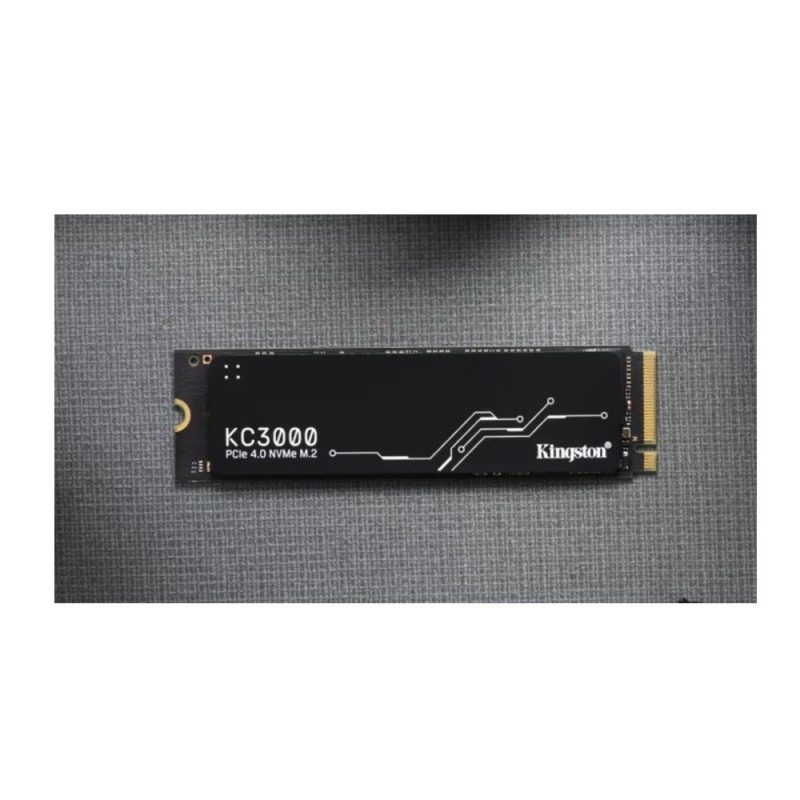

[Kingston KC3000 PCIe 4.0 NVMe M.2 SSD] delivers next-level performance using the latest Gen 4×4 NVMe controller and 3D TLC NAND. Upgrade the storage and reliability of your system to keep up with demanding workloads and experience better performance with software applications such as 3D rendering and 4K+ content creation. With formidable speeds up to 7,000MB/s* read/write, it ensures improved workflow in high-performance desktop and laptop PCs making it ideal for power users who require the fastest speeds on the market.
The compact M.2 2280 design fits seamlessly into motherboards and gives greater flexibility where high-power users appreciate responsiveness and superior loading times.
Full capacities available from 512GB–4096GB** to meet your data storage requirements.
* Based on “out-of-box performance” using a PCIe 4.0 motherboard. Speed may vary due to host hardware, software, and usage.
** Some of the listed capacity on a flash storage device is used for formatting and other functions and thus is not available for data storage. As such, the actual available capacity for data storage is less than what is listed on the products. For more information, go to Kingston’s Flash Memory Guide at kingston.com/flashguide.
FEATURES
• PCIe 4.0 NVMe high-performance
• Upgrade with full capacities up to 4096GB**
• Compact M.2 2280 form factor
• Low profile graphene aluminum heat spreader
** Some of the listed capacity on a flash storage device is used for formatting and other functions and thus is not available for data storage. As such, the actual available capacity for data storage is less than what is listed on the products. For more information, go to Kingston’s Flash Memory Guide at kingston.com/flashguide.
SPECIFICATIONS
Form Factor M.2 2280
Interface PCIe 4.0 NVMe
Capacities** 512GB, 1024GB, 2048GB, 4096GB
Controller Phison E18
NAND 512GB – 7,000/3,900MB/s
1024GB – 7,000/6,000MB/s
2048GB – 7,000/7,000MB/s
4096GB – 7,000/7,000MB/s
Random 4K Read/Write* 512GB – up to 450,000/900,000 IOPS
1024GB – up to 900,000/1,000,000 IOPS
2048GB – up to 1,000,000/1,000,000 IOPS
4096GB – up to 1,000,000/1,000,000 IOPS
Total Bytes Written (TBW)* 512GB – 400TBW
1024GB – 800TBW
2048GB – 1.6PBW
4096GB – 3.2PBW
Power Consumption 512GB – 5mW Idle / 0.34W Avg / 2.7W (MAX) Read / 4.1W (MAX) Write
1024GB – 5mW Idle / 0.33W Avg / 2.8W (MAX) Read / 6.3W (MAX) Write
2048GB – 5mW Idle / 0.36W Avg / 2.8W (MAX) Read / 9.9W (MAX) Write
4096GB – 5mW Idle / 0.36W Avg / 2.7W (MAX) Read / 10.2W (MAX) Write
Storage Temperature -40°C~85°C
Operating Temperature 0°C~70°C
Dimensions 80mm x 22mm x 2.21mm (512GB-1024GB)
80mm x 22mm x 3.5mm (2048GB-4096GB)
Weight 512GB-1024GB – 7g
2048GB-4096GB – 9.7g
Vibration Operating 2.17G Peak (7-800Hz)
Vibration Non-operating 20G Peak (20-1000Hz)
MTBF 1,800,000 hours
Warranty/Support** Limited 5-year warranty with free technical support
This SSD is designed for use in desktop and notebook computer workloads and is not intended for server environments.
* Based on “out-of-box performance” using a PCIe 4.0 motherboard. Speed may vary due to host hardware, software, and usage.
** Some of the listed capacity on a flash storage device is used for formatting and other functions and thus is not available for data storage. As such, the actual available capacity for data storage is less than what is listed on the products. For more information, go to Kingston’s Flash Memory Guide at kingston.com/flashguide.
* Total Bytes Written (TBW) is derived from the JEDEC Client Workload (JESD219A).
