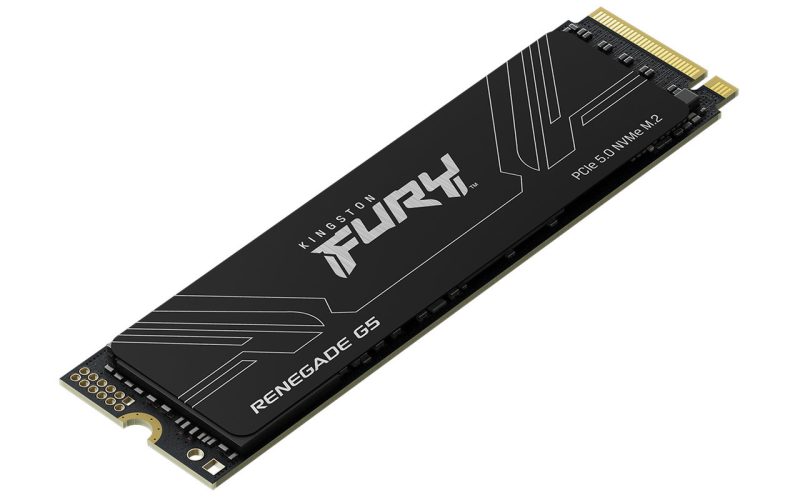

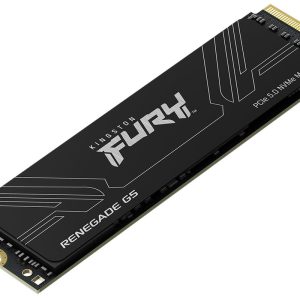

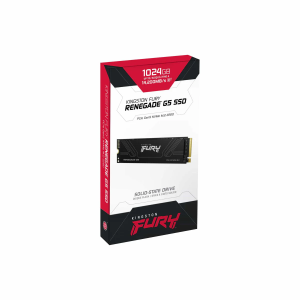

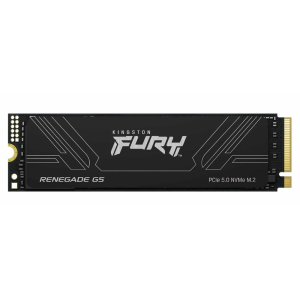

Kingston FURY Renegade 1024GB G5 PCIe 5.0 NVMe M.2 SSD – SFYR2S/1T0

Specifications

Form Factor M.2 2280

Interface PCIe 5.0 x4 NVMe

Capacities1 Controller SM2508

1024GB, 2048GB, 4096GB

NAND 3D TLC

DRAM Cache Yes

DirectStorage Supported Sequential Read/Write2 Random 4K Read/Write2 Endurance (Total bytes written)3 Yes

1024GB – up to 14,200/11,000MB/s

2048GB – up to 14,700/14,000MB/s

4096GB – up to 14,800/14,000MB/s

1024GB – up to 2,200,000/2,150,000 IOPS

2048GB – 4096GB – up to 2,200,000/2,200,000 IOPS

1024GB – 1.0PB

2048GB – 2.0PB

4096GB – 4.0PB

1024GB – 0.27W Avg / 6.6W @ 14.2G / 6.6W (MAX)

2048GB – 0.27W Avg / 7.0W @ 14.7G / 7.0W (MAX)

4096GB – 0.27W Avg / 7.1W @ 14.8G / 9.5W (MAX)

Storage Temperature -40°C~85°C

Operating Temperature 0°C~70°C

Dimensions 80mm x 22mm x 2.3mm

Power Consumption4 Weight 1024GB – 7.3g

2048GB-4096GB – 7.7g

Vibration Operating 2.17G Peak (7-800Hz)

Vibration Non-operating 20G Peak (20-1000Hz)

MTBF 2,000,000 hours

Warranty/Support : Limited 5-year warranty with free technical support

Part Numbers SFYR2S

SFYR2S/1T0 SFYR2S/2T0 SFYR2S/4T0

This SSD is designed for use in desktop and notebook computer workloads and is not intended for Server environments.

1. Some of the listed capacity on a Flash storage device is used for formatting and other functions and thus is not available for data storage. As such,

the actual available capacity for data storage is less than what is listed on the products. For more information, go to Kingston's Flash Memory Guide.

2. Based on “Fresh out-of-box performance”, Sequential R/W using PCIe 5.0 Ryzen5 7600X CPU and X670E Motherboard, Random R/W using Intel

Ultra7 and Z890 Motherboard. Speed may vary due to host hardware, software, and usage.

3. Total Bytes Written (TBW) is derived from the JEDEC Client Workload (JESD219A).

4. Average power consumption is based on Mobilemark™ workload. Max power consumption is based on typical value.

5. Limited warranty based on 5 years or “Percentage Used” which can be found using the Kingston SSD Manager (kingston.com/ssdmanager). For

NVMe SSDs, a new unused product will show a Percentage Used value of 0, whereas a product that reaches its warranty limit will show a

Percentage Used value of greater than or equal to one hundred (100). See kingston.com/wa for details.
