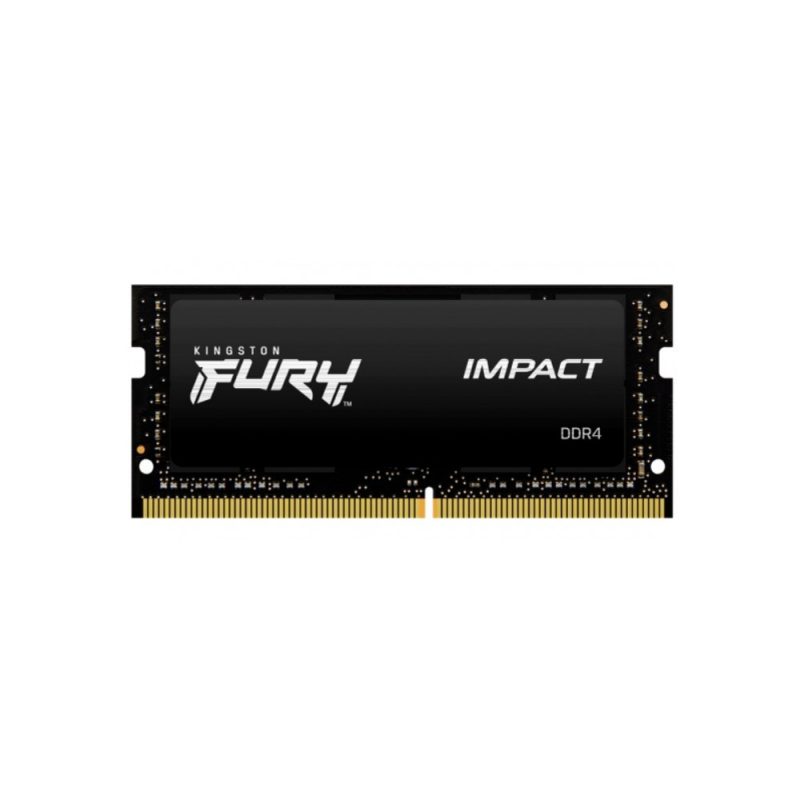

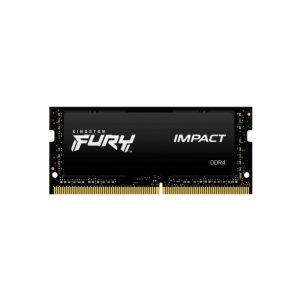

Kingston FURY Impact 16GB 2666MHz DDR4 DIMM (KF426S15IB1/16)

FURY KF426S15IB1/16 is a 2G x 64-bit (16GB) DDR4-2666 CL15 SDRAM (Synchronous DRAM) 2Rx8, memory module, based on sixteen 1G x 8-bit FBGA components per module. Each module kit supports Intel® Extreme Memory Profiles (Intel® XMP) 2.0. Each module has been tested to run at DDR4-2666 at a low latency timing of 15-17-17 at 1.2V. Additional timing parameters are shown in the Plug-N-Play (PnP) Timing Parameters section below. The JEDEC standard electrical and mechanical specifications are as follows:

FACTORY TIMING PARAMETERS
• Default (Plug N Play):
DDR4-2666 [email protected]
DDR4-2400 [email protected]
DDR4-2133 [email protected]
• XMP Profile #1:
DDR4-2666 CL15-17-17 @1.2V

SPECIFICATIONS
CL(IDD)  15 cycles
Row Cycle Time (tRCmin)   45ns(min.)
Refresh to Active/Refresh
Command Time (tRFCmin)   350ns(min.)
Row Active Time (tRASmin)   26.25ns(min.)
UL Rating   94 V – 0
Operating Temperature   0o C to +85o C
Storage Temperature    55o C to +100o C

FEATURES
• Power Supply: VDD = 1.2V Typical
• VDDQ = 1.2V Typical
• VPP = 2.5V Typical
• VDDSPD = 2.2V to 3.6V
• On-Die termination (ODT)
• 16 internal banks; 4 groups of 4 banks each
• Bi-Directional Differential Data Strobe
• 8 bit pre-fetch
• Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)
• Height 1.18” (30.00mm)
