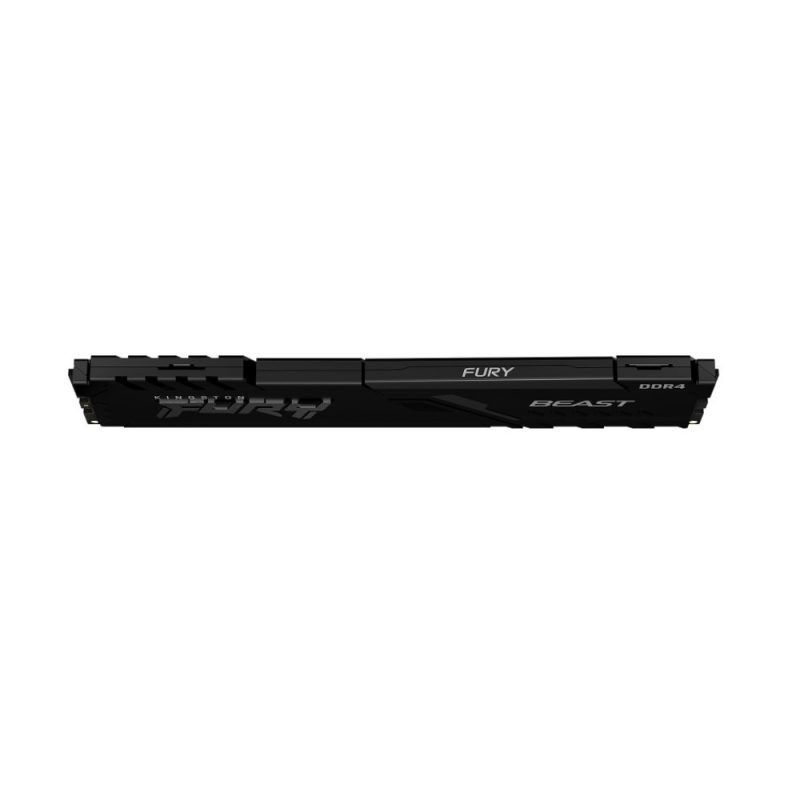

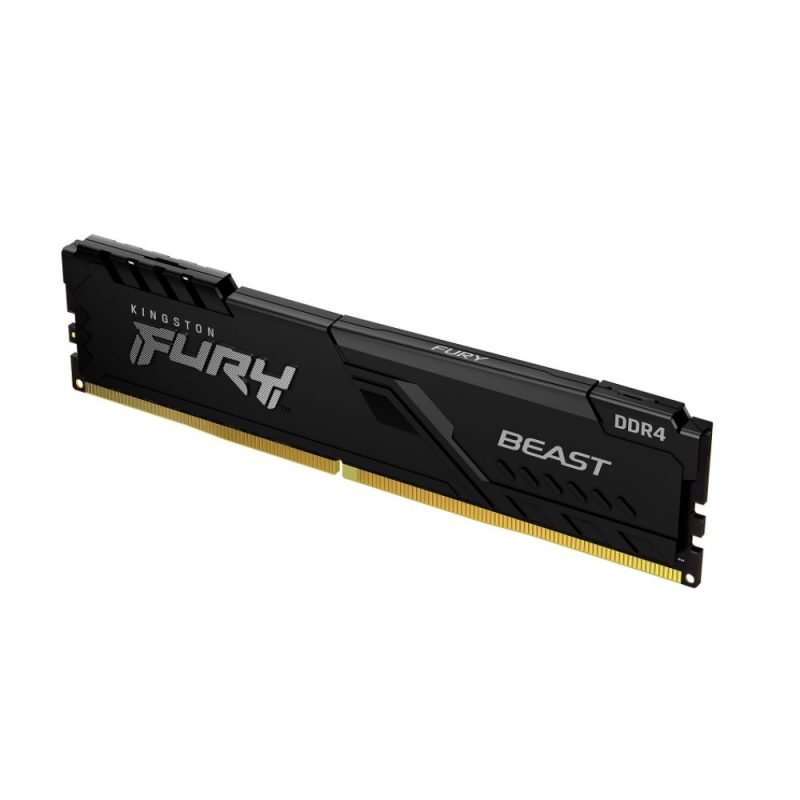

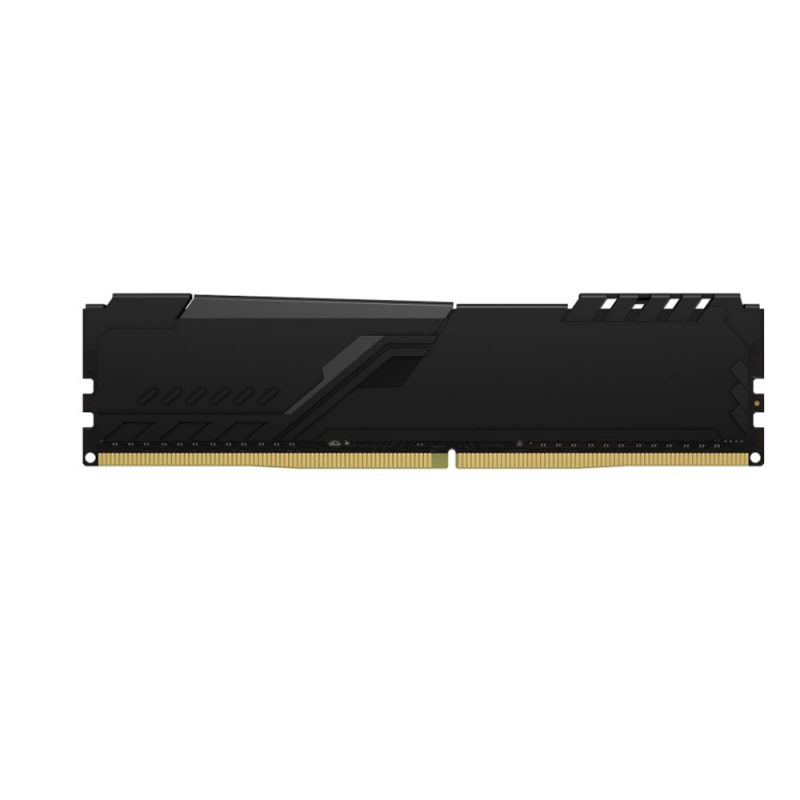

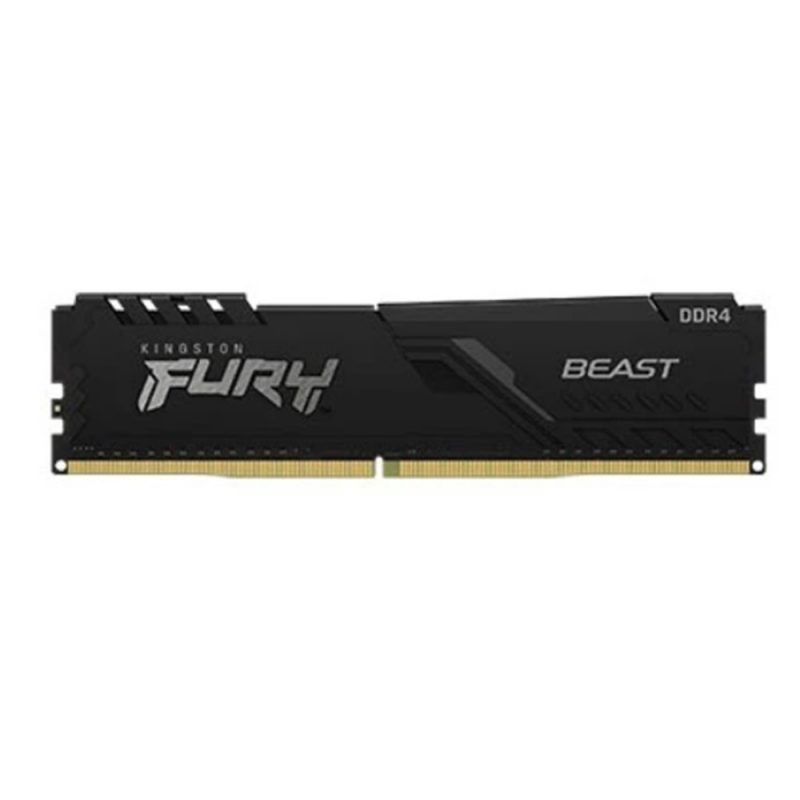

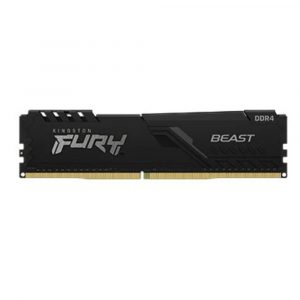

Kingston FURY Beast 16GB 2666MHz DDR4 DIMM (KF426C16BB1/16)

FURY KF426C16BB1/16 is a 2G x 64-bit (16GB) DDR4-2666 CL16 SDRAM (Synchronous DRAM) 2Rx8, memory module, based on sixteen 512M x 8-bit FBGA components per module. Each module kit supports Intel® Extreme Memory Profiles (Intel® XMP) 2.0. Each module has been tested to run at DDR4-2666 at a low latency timing of 16-18-18 at 1.2V. Additional timing parameters are shown in the Plug-N-Play (PnP) Timing Parameters section below. Each 288-pin DIMM uses gold contact fingers.

The JEDEC standard electrical and mechanical specifications are as follows:

FACTORY TIMING PARAMETERS
• Default (Plug N Play): DDR4-2666 CL16-18-18 @ 1.2V
• XMP Profile #1: DDR4-2666 CL16-18-18 @ 1.2V

SPECIFICATIONS
CL(IDD)  : 16 cycles
Row Cycle Time (tRCmin)  :  45.75ns(min.)
Refresh to Active/Refresh  :  260ns(min.)
Command Time (tRFCmin)
Row Active Time (tRASmin)   :  29.25ns(min.)
UL Rating  : 94 V – 0
Operating Temperature   :   0o C to +85o C
Storage Temperature  :   -55o C to +100o C

FEATURES
• Power Supply: VDD = 1.2V Typical
• VDDQ = 1.2V Typical
• VPP = 2.5V Typical
• VDDSPD = 2.2V to 3.6V
• On-Die termination (ODT)
• 16 internal banks; 4 groups of 4 banks each
• Bi-Directional Differential Data Strobe
• 8 bit pre-fetch
• Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)
• Height 1.34” (34mm), w/heatsink
