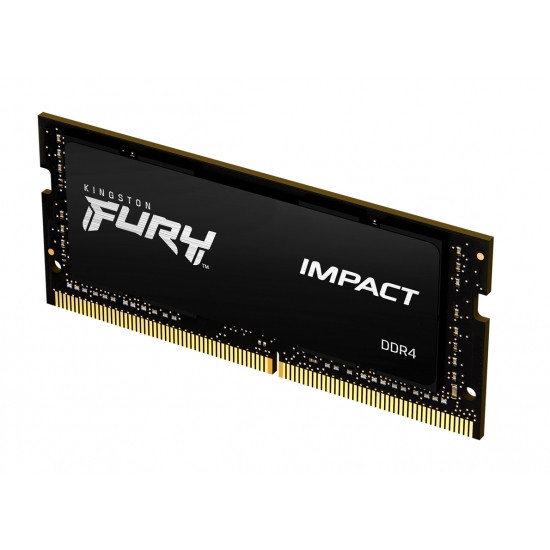

Kingston FURY 8GB 2666MHz DDR4 CL15 260-Pin SODIMM (KF426S15IB/8)

DESCRIPTION

FURY KF426S15IB/8 is a 1G x 64-bit (8GB) DDR4-2666 CL15 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 1G x 8-bit FBGA components per module. Each module kit supports Intel® Extreme Memory Profiles (Intel® XMP) 2.0. Each module has been tested to run at DDR4-2666 at a low latency timing of 15-17-17 at 1.2V. Additional timing parameters are shown in the Plug-N-Play (PnP) Timing Parameters section below. The JEDEC standard electrical and mechanical specifications are as follows:

*Note: The PnP feature offers a range of speed and timing options to support the widest variety of processors and chipsets. Your maximum speed will be determined by your BIOS.

FACTORY TIMING PARAMETERS

• Default (Plug N Play): DDR4-2666 CL15-17-17 @1.2V DDR4-2400 CL14-16-16 @1.2V DDR4-2133 CL12-14-14 @1.2V

• XMP Profile #1: DDR4-2666 CL15-17-17 @1.2V

SPECIFICATIONS

CL(IDD) : 15 Cycles

Row Cycle Time (tRCmin) : 45ns(min)

Refresh to Active/Refresh Command Time (tRFCmin) : 350ns(min)

Row Active Time (tRASmin) : 26.25ns(min)

UL Rating : 94 V – 0

Operating Temperature : 0o C to +85o C

Storage Temperature : -55o C to +100o C

FEATURES

• Power Supply: VDD = 1.2V Typical

• VDDQ = 1.2V Typical

• VPP = 2.5V Typical

• VDDSPD = 2.2V to 3.6V

• On-Die termination (ODT)

• 16 internal banks; 4 groups of 4 banks each

• Bi-Directional Differential Data Strobe

• 8 bit pre-fetch • Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)

• Height 1.18” (30.00mm)
