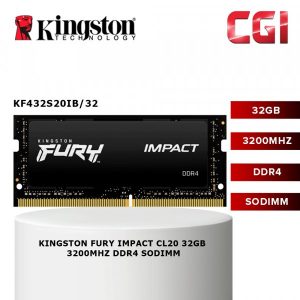

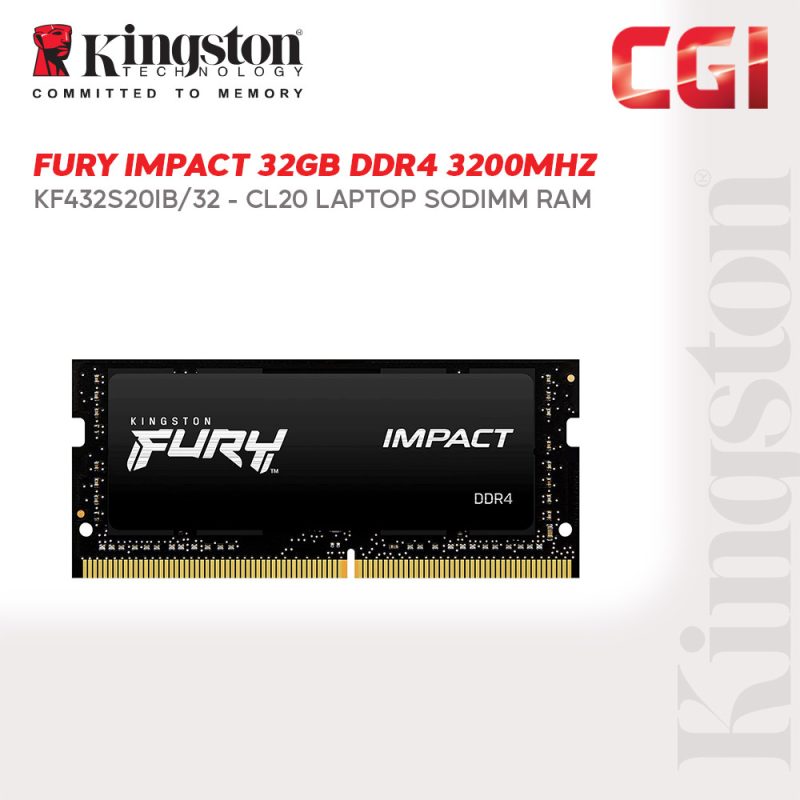

Kingston FURY 32GB 3200MHz DDR4 CL20 260-Pin SODIMM (KF432S20IB/32)

DESCRIPTION KF432S20IB/32 32GB 4G x 64-Bit DDR4-3200 CL20 260-Pin SODIMM Continued >> FEATURES FURY KF432S20IB/32 is a 4G x 64-bit (32GB) DDR4-3200 CL20 SDRAM (Synchronous DRAM) 2Rx8, memory module, based on sixteen 2G x 8-bit FBGA components per module. Each module kit supports Intel® Extreme Memory Profiles (Intel® XMP) 2.0. Each module has been tested to run at DDR4-3200 at a low latency timing of 20-22-22 at 1.2V. Additional timing parameters are shown in the Plug-N-Play (PnP) Timing Parameters section below. The JEDEC standard electrical and mechanical specifications are as follows:

• Power Supply: VDD = 1.2V Typical

• VDDQ = 1.2V Typical

• VPP = 2.5V Typical

• VDDSPD = 2.2V to 3.6V

• On-Die termination (ODT)

• 16 internal banks; 4 groups of 4 banks each

• Bi-Directional Differential Data Strobe

• 8 bit pre-fetch

• Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)

• Height 1.18” (30.00mm)

CL(IDD) : 20 cycles

Row Cycle Time (tRCmin) : 45.75ns(min.)

Refresh to Active/Refresh Command Time (tRFCmin) :350ns(min.)

Row Active Time (tRASmin) : 26.25ns(min.)

UL Rating : 94 V – 0

Operating Temperature : 0o C to +85o C

Storage Temperature :  -55o C to +100o C
