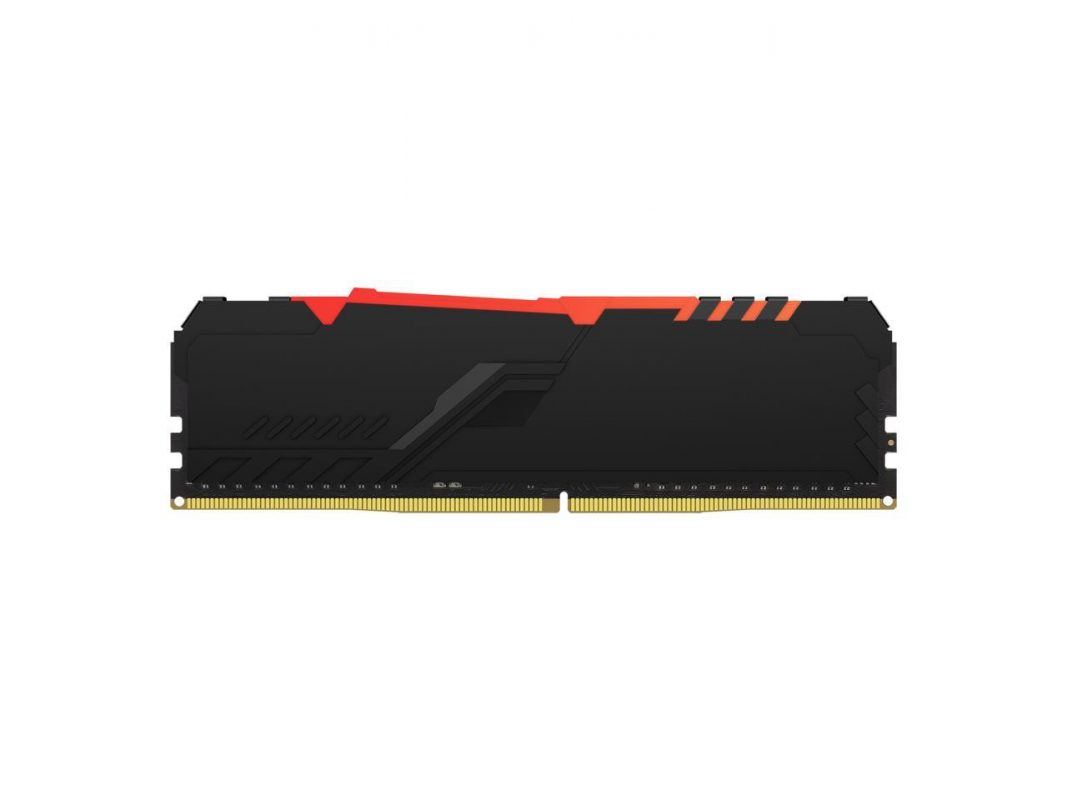

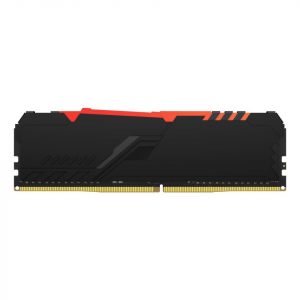

Kingston FURY 16GB 3200MHz DDR4 CL16 288-Pin DIMM (KF432C16BB1A/16)

DESCRIPTION

FURY KF432C16BB1A/16 is a 2G x 64-bit (16GB) DDR4-3200 CL16 SDRAM (Synchronous DRAM) 2Rx8, memory module, based on sixteen 1G x 8-bit FBGA components per module. Each module kit supports Intel® Extreme Memory Profiles (Intel® XMP) 2.0. Each module has been tested to run at DDR4-3200 at a low latency timing of 16-18-18 at 1.35V. The SPDs are programmed to JEDEC standard latency DDR4-2400 timing of 17-17-17 at 1.2V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:

FACTORY TIMING PARAMETERS

• Default (JEDEC): DDR4-2400 CL17-17-17 @ 1.2V

• XMP Profile #1: DDR4-3200 CL16-18-18 @ 1.35V

• XMP Profile #2: DDR4-3000 CL15-17-17 @ 1.35V

SPECIFICATIONS

CL(IDD) : 17 Cycles

Row Cycle Time (tRCmin) : 45.75ns(min)

Refresh to Active/Refresh Command Time (tRFCmin) : 350ns(min)

Row Active Time (tRASmin) : 32ns(min)

UL Rating : 94 V – 0

Operating Temperature : 0o C to +70o C

Storage Temperature : -40o C to +85o C

FEATURES

• Power Supply: VDD = 1.2V Typical

• VDDQ = 1.2V Typical

• VPP = 2.5V Typical

• VDDSPD = 2.2V to 3.6V

• On-Die termination (ODT)

• 16 internal banks; 4 groups of 4 banks each

• Bi-Directional Differential Data Strobe

• 8 bit pre-fetch

• Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)

• Height 1.62” (41.2mm), w/heatsink
