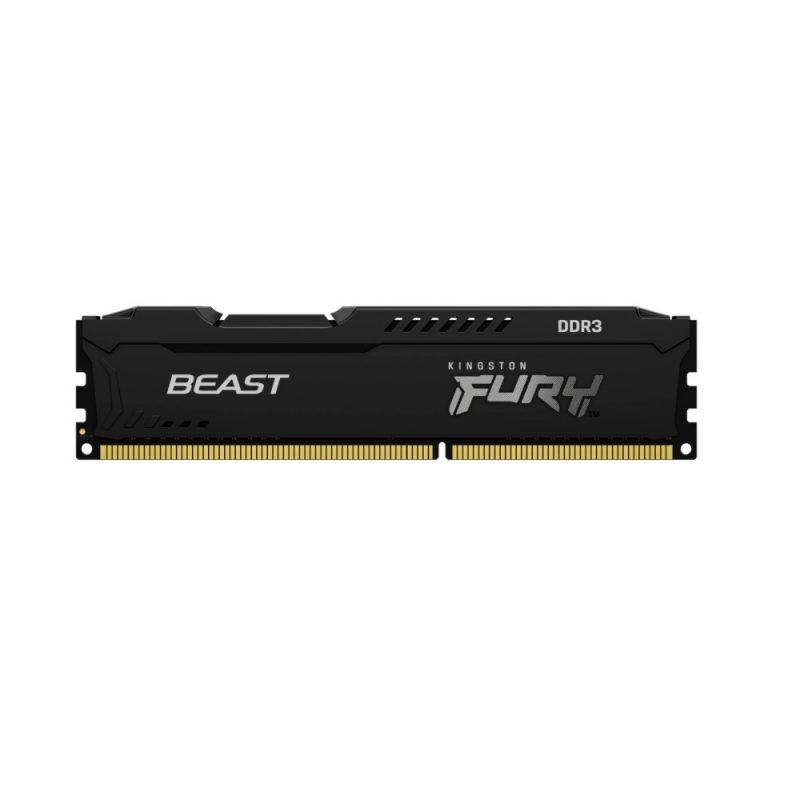

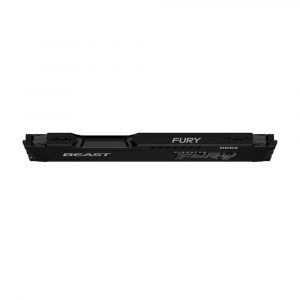

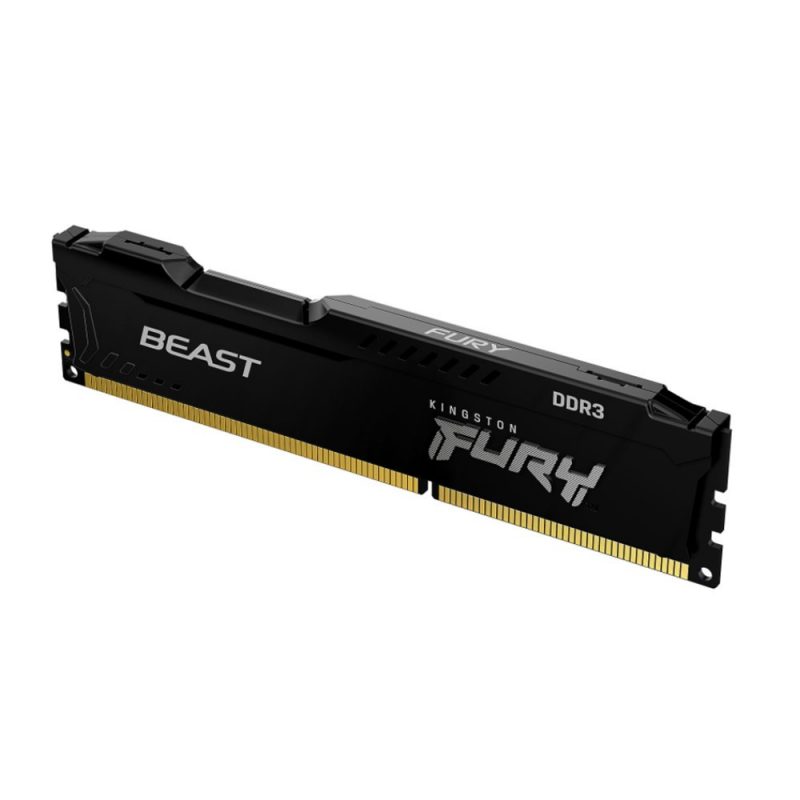

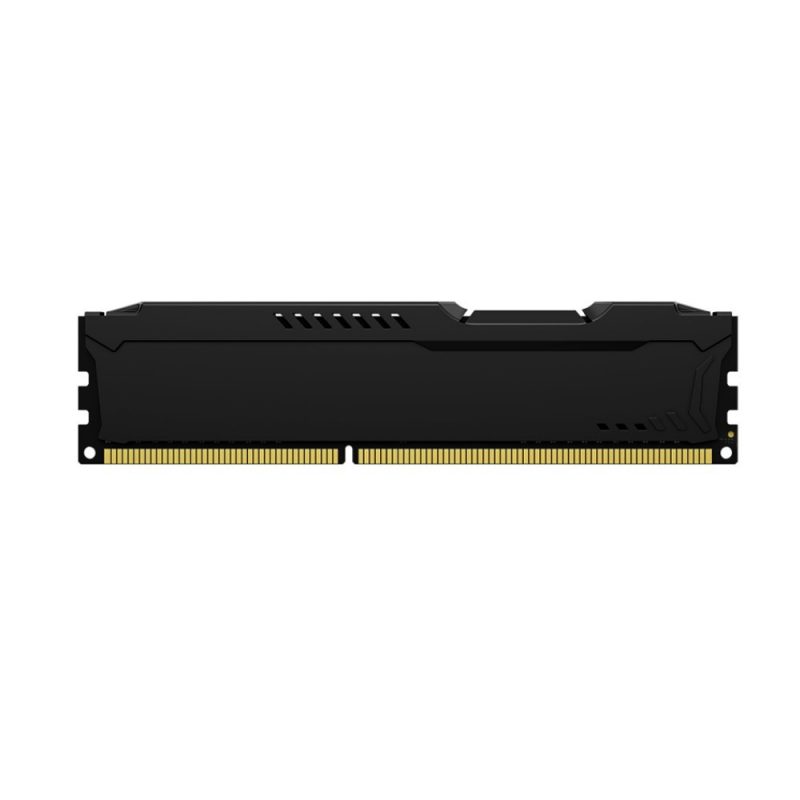

Kingston Beast FURY 4GB 1600MHz DDR3 DIMM – Black (KF316C10BB/4)

FURY KF316C10BB/4 is a 512M x 64-bit (4GB) DDR3-1600 CL10 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 512M x 8-bit FBGA components per module. Each module has been tested to run at DDR3-1600 at a low latency timing of 10-10-10 at 1.5V. Additional timing parameters are shown in the Plug-N-Play (PnP) Timing Parameters section below. Each 240-pin DIMM uses gold contact fingers.

The JEDEC standard electrical and mechanical specifications are as follows:

FACTORY TIMING PARAMETERS
• Default (Plug N Play):
DDR3-1600 CL10-10-10@ 1.5V
DDR3-1333 CL9-9-9@ 1.5V
DDR3-1066 CL7-7-7 @ 1.5V

SPECIFICATIONS
CL(IDD)  : 10 cycles
Row Cycle Time (tRCmin)  :  48.125ns(min.)
Refresh to Active/Refresh  :  260ns(min.)
Command Time (tRFCmin)
Row Active Time (tRASmin)   :  37.5ns(min.)
UL Rating  : 94 V – 0
Operating Temperature   :   0o C to +85o C
Storage Temperature  :   -55o C to +100o C

FEATURES
• JEDEC standard 1.5V Power Supply
• VDDQ = 1.5V
• 800MHz fCK for 1600Mb/sec/pin
• 8 independent internal bank
• Programmable CAS Latency: 11, 10, 9, 8, 7, 6
• Programmable Additive Latency: 0, CL – 2, or CL – 1 clock
• 8-bit pre-fetch • Burst Length: 8 (Interleave without any limit, sequential with starting address “000” only), 4 with tCCD = 4 which does not allow seamless read or write [either on the fly using A12 or MRS]
• Bi-directional Differential Data Strobe
• Internal(self) calibration : Internal self calibration through ZQ pin (RZQ : 240 ohm ± 1%)
• On Die Termination using ODT pin
• Average Refresh Period 7.8us at lower than TCASE 85°C, 3.9us at 85°C < TCASE < 95°C
• Asynchronous Reset • Height 1.338” (34mm) w/heatsink
