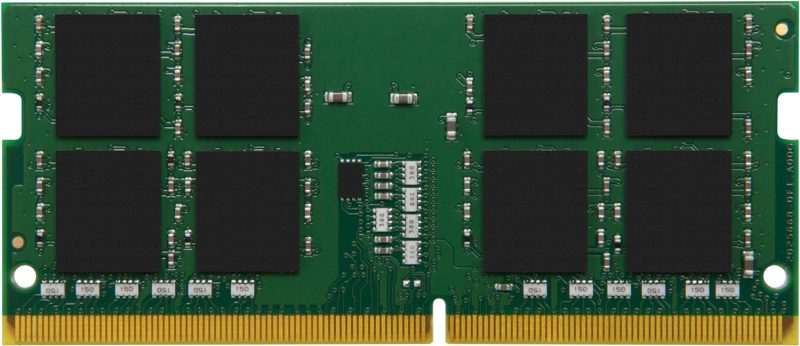

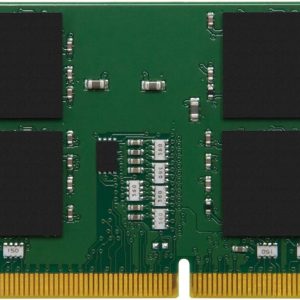

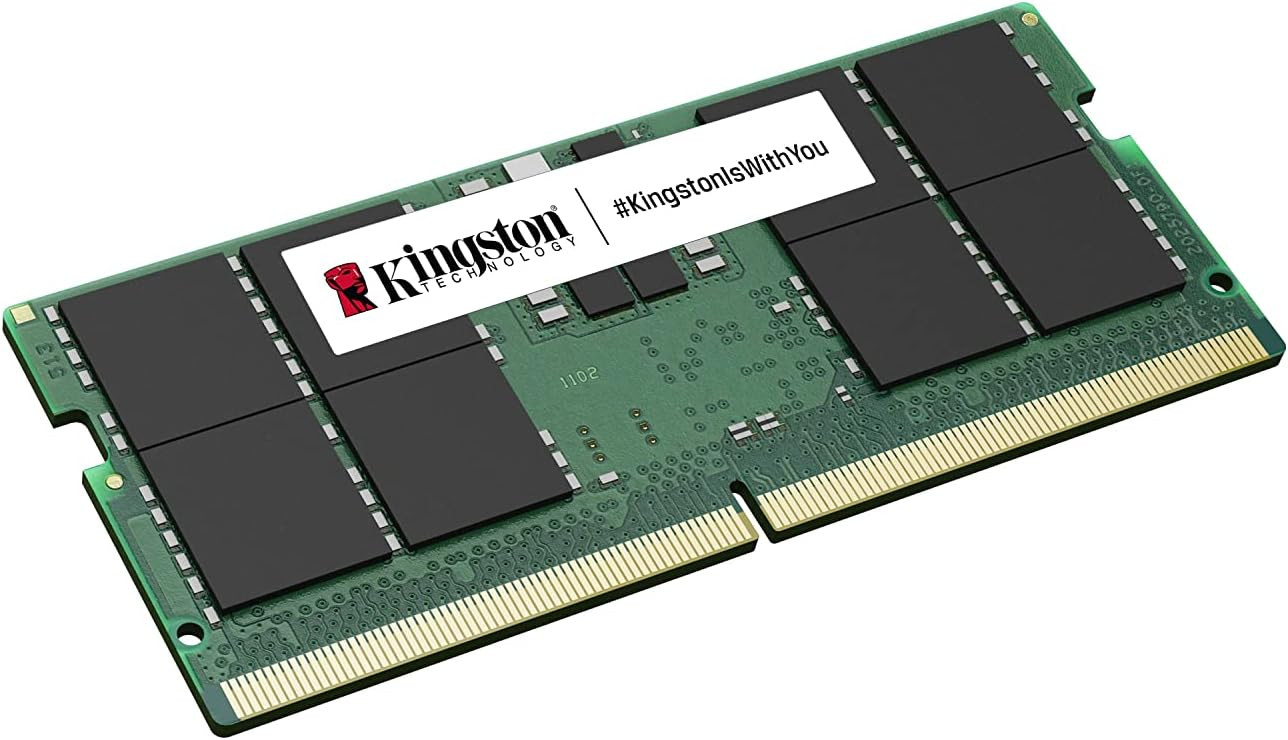

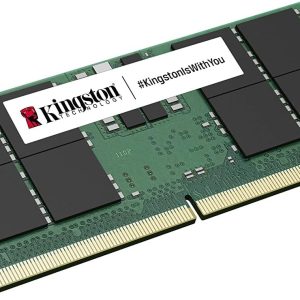

Kingston 8GB DDR5-5200MHz CL42 262-Pin SODIMM Value RAM – KVR52S42BS6-8

This document describes ValueRAM's KVR52S42BS6-8 is a 1G x 64-bit (8GB) DDR5-5200 CL42 SDRAM (Synchronous DRAM), 1Rx16, memory module, based on four 1G x 16-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5200 timing of 42-42-42 at 1.1V. Each 262-pin SODIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:

• Power Supply: VDD = 1.1V Typical

• VDDQ = 1.1V Typical

• VPP = 1.8V Typical

• VDDSPD = 1.8V to 2.0V

• On-Die ECC

• PCB: Height 1.18” (30.00mm)

• RoHS Compliant and Halogen-Free

SPECIFICATIONS

CL(IDD) : 42 cycles
Row Cycle Time (tRCmin) : 48ns(min.)
Refresh to Active/Refresh – Command Time (tRFCmin) : 295ns(min.)
Row Active Time (tRASmin) : 32ns(min.)
UL Rating : 94 V – 0
Operating Temperature : 0oC to +85oC
Storage Temperature : -55oC to +100oC
