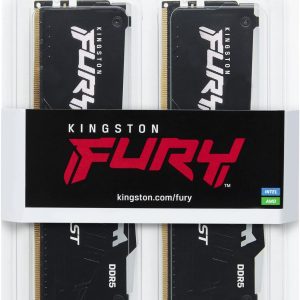

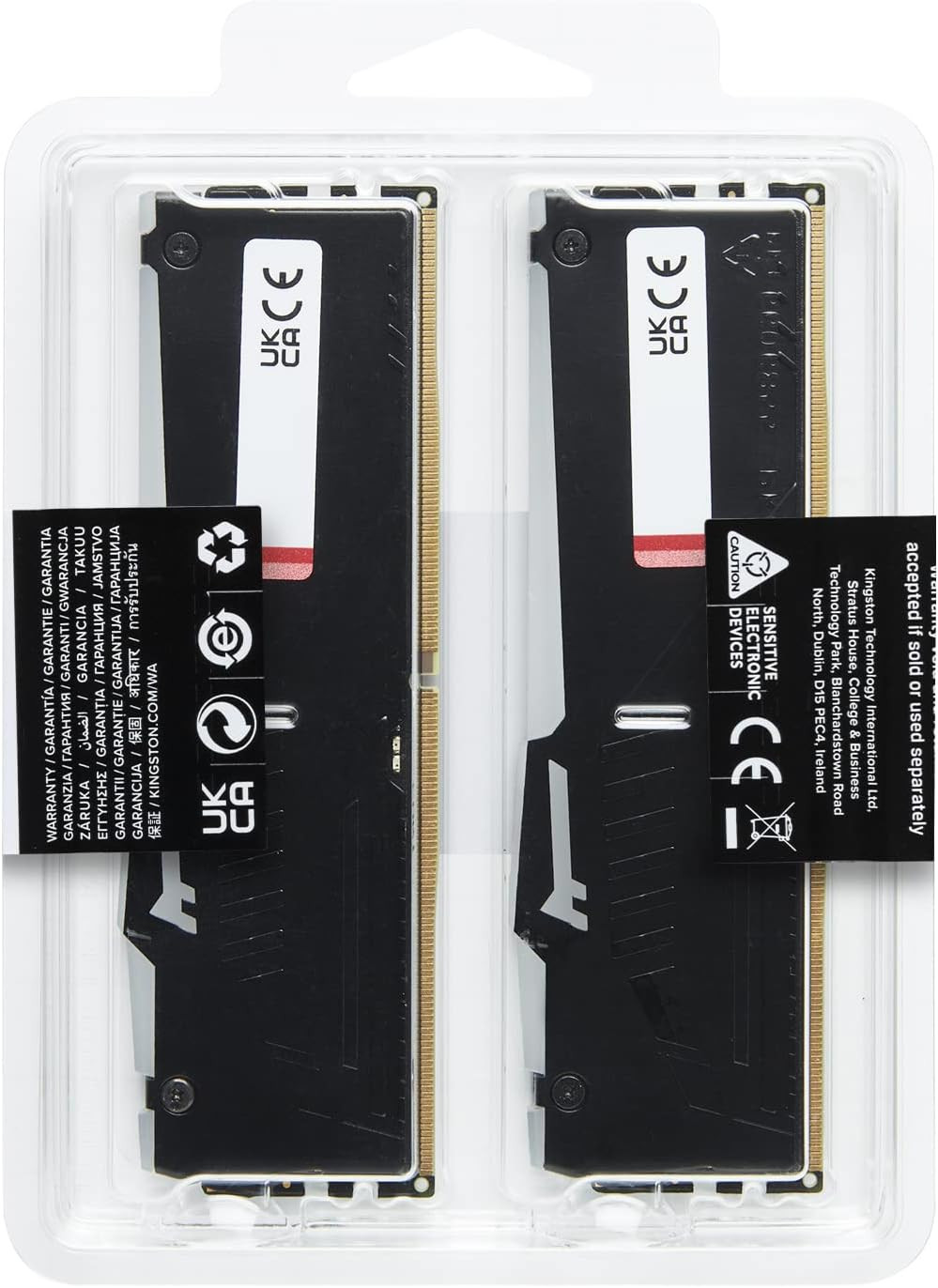

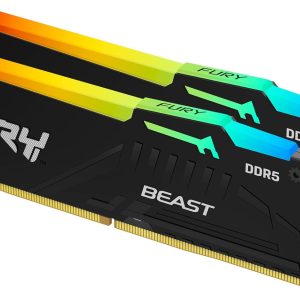

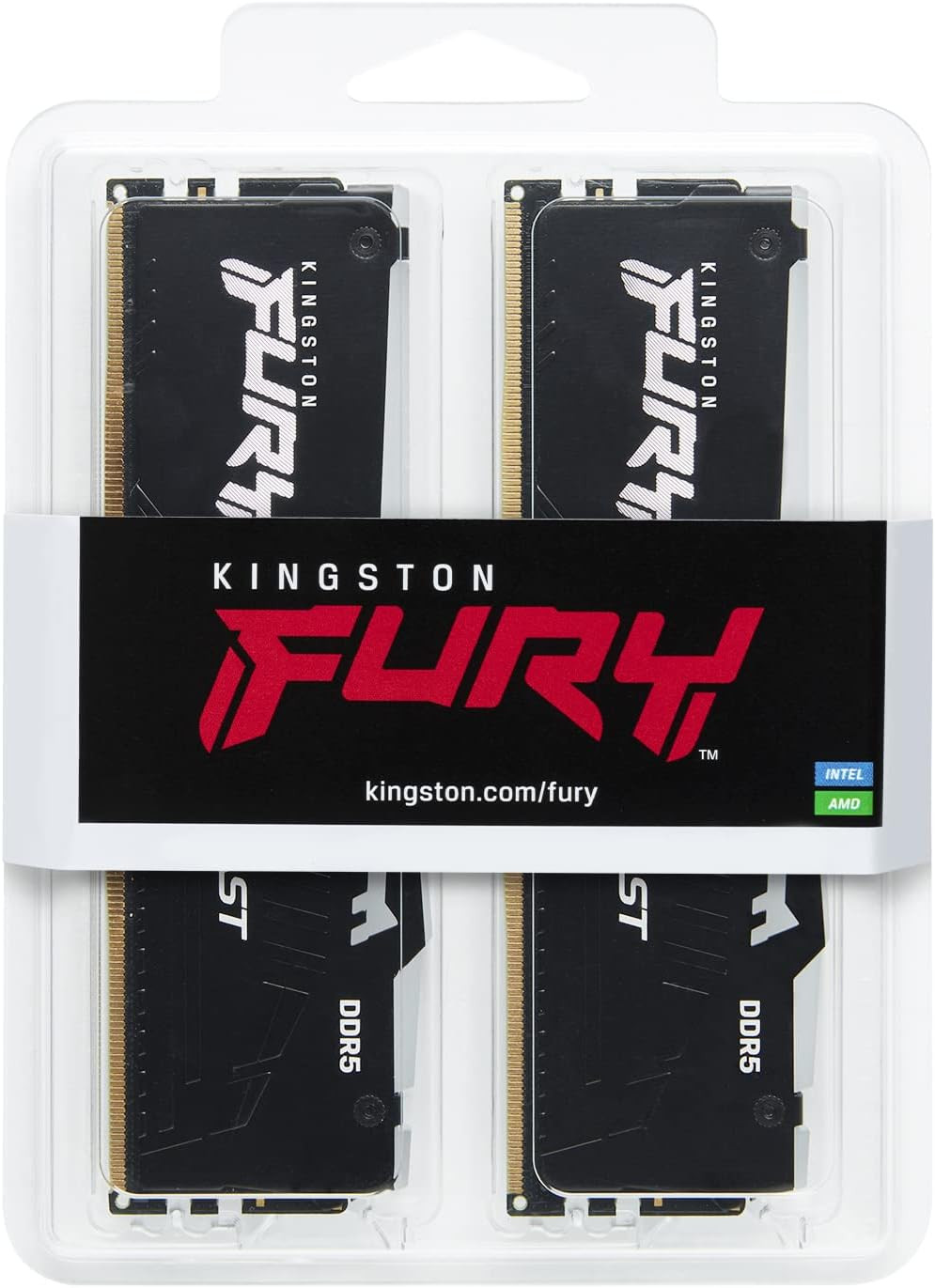

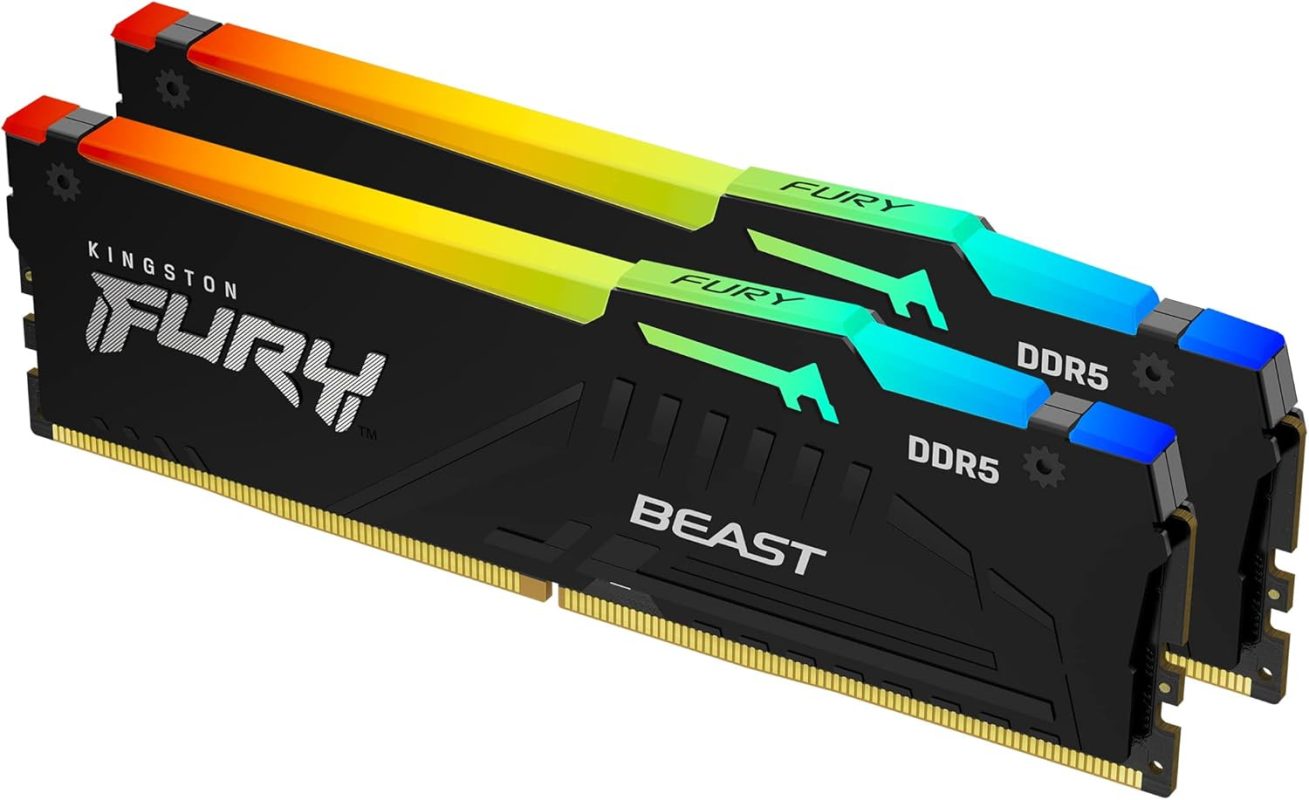

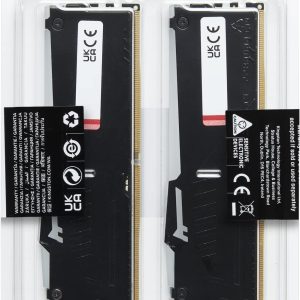

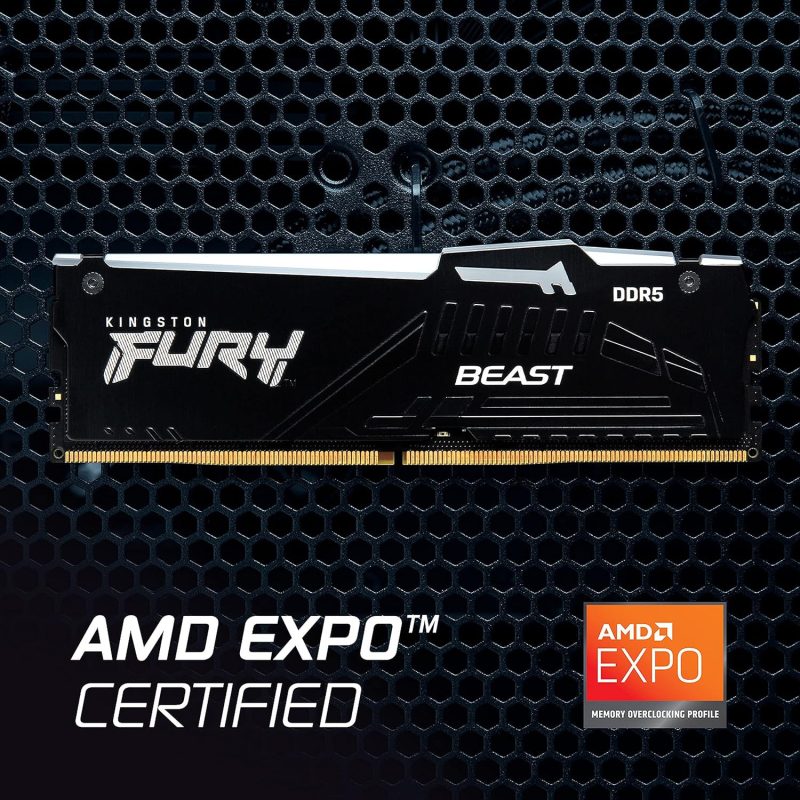

Kingston 54GB (2X32GB) DDR5 6000MT/s CL36 288 Pin DIMM FURY Beast Black RGB EXPO (Kit of 2) – KF560C36BBEAK2/64

Kingston FURY KF560C36BBEAK2-64 is a kit of two 4G x 64-bit (32GB) DDR5-6000 CL36 SDRAM (Synchronous DRAM) 2Rx8, memory module, based on sixteen 2G x 8-bit FBGA components per module. Each module kit supports AMD® EXPO v1.0 and Intel® Extreme Memory Profiles (Intel® XMP) 3.0. Total kit capacity is 64GB. Each module has been tested to run at DDR5-6000 at a low latency timing of 36-38-38 at 1.35V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:

FACTORY TIMING PARAMETERS

• Default (JEDEC): DDR5-4800 CL40-39-39 @1.1V

• EXPO Profile #0: DDR5-6000 CL36-38-38 @1.35V

• EXPO Profile #1: DDR5-5600 CL36-38-38 @1.25V

• XMP Profile #1: DDR5-6000 CL36-38-38 @1.35V

• XMP Profile #2: DDR5-5600 CL36-38-38 @1.25V

CL(IDD) : 40 cycles

Row Cycle Time (tRCmin) : 48ns(min.)

Refresh to Active/Refresh Command Time (tRFCmin) : 295ns(min.)

Row Active Time (tRASmin) : 32ns(min.)

UL Rating   : 94 V – 0

Operating Temperature : 0o C to +85o C

Storage Temperature : -55o C to +100o C
