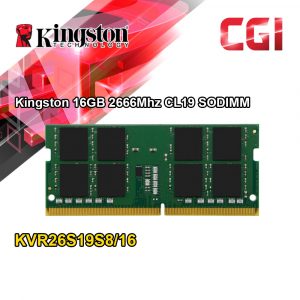

Kingston 16GB DDR4-2666Mhz Sodium Value Ram – KVR26S19S8/16

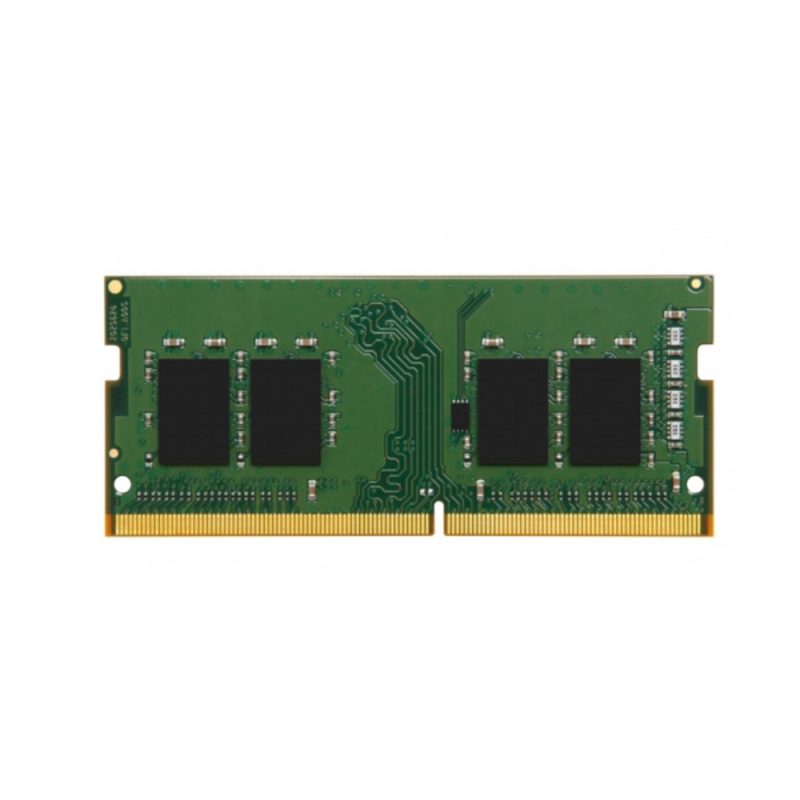

This document describes ValueRAM's KVR26S19S8/16 is a 2G x
64-bit (16GB) DDR4-2666 CL19 SDRAM (Synchronous DRAM),
1Rx8, non-ECC, memory module, based on eight 2G x 8-bit FBGA
components. The SPD is programmed to JEDEC standard latency
DDR4-2666 timing of 19-19-19 at 1.2V. This 260-pin DIMM uses
gold contact fingers. The electrical and mechanical specifications
are as follows:

FEATURES
• Power Supply: VDD = 1.2V Typical
• VDDQ = 1.2V Typical
• VPP = 2.5V Typical
• VDDSPD = 2.2V to 3.6V
• Nominal and dynamic on-die termination (ODT) for
data, strobe, and mask signals
• Low-power auto self refresh (LPASR)
• Data bus inversion (DBI) for data bus
• On-die VREFDQ generation and calibration
• Single-rank
• On-board I2 serial presence-detect (SPD) EEPROM
• 16 internal banks; 4 groups of 4 banks each
• Fixed burst chop (BC) of 4 and burst length (BL) of 8
via the mode register set (MRS)
• Selectable BC4 or BL8 on-the-fly (OTF)
• Fly-by topology
• Terminated control command and address bus
• PCB: Height 1.18” (30.00mm)
• RoHS Compliant and Halogen-Free

SPECIFICATIONS
CL(IDD)  : 19 cycles
Row Cycle Time (tRCmin)  :  45.75ns(min.)
Refresh to Active/Refresh   :  350ns(min.)
Command Time (tRFCmin)  : 32ns(min.)
Row Active Time (tRASmin)
UL Rating : 94 V – 0
Operating Temperature : 0oC to +85oC
Storage Temperature : -55oC to +100oC
