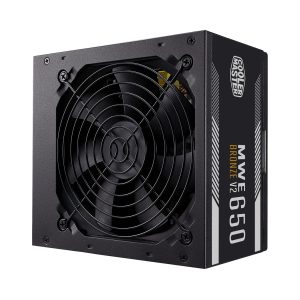

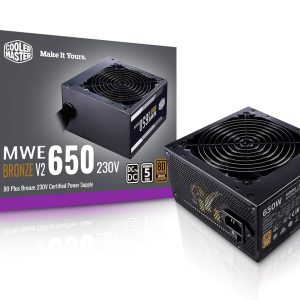

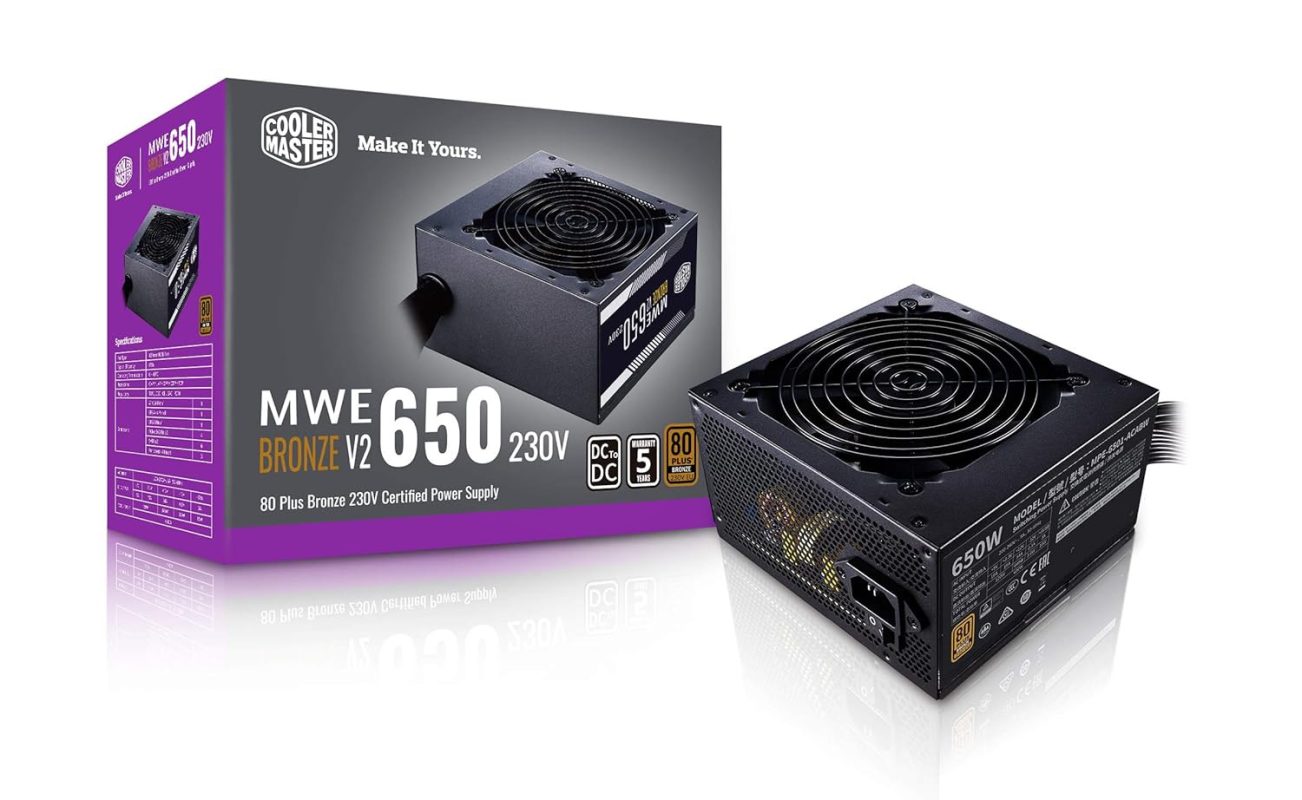

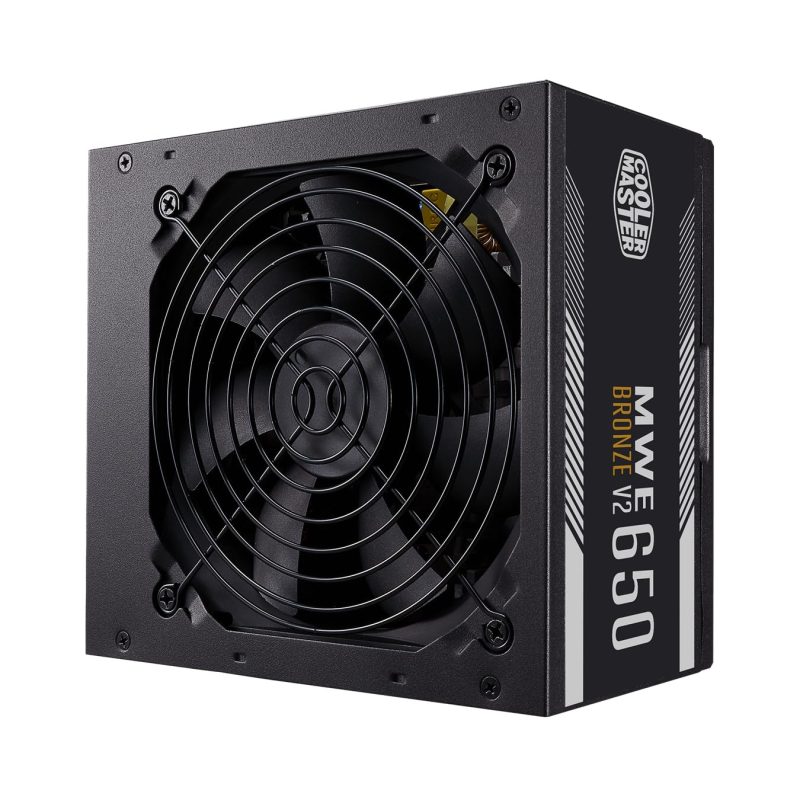

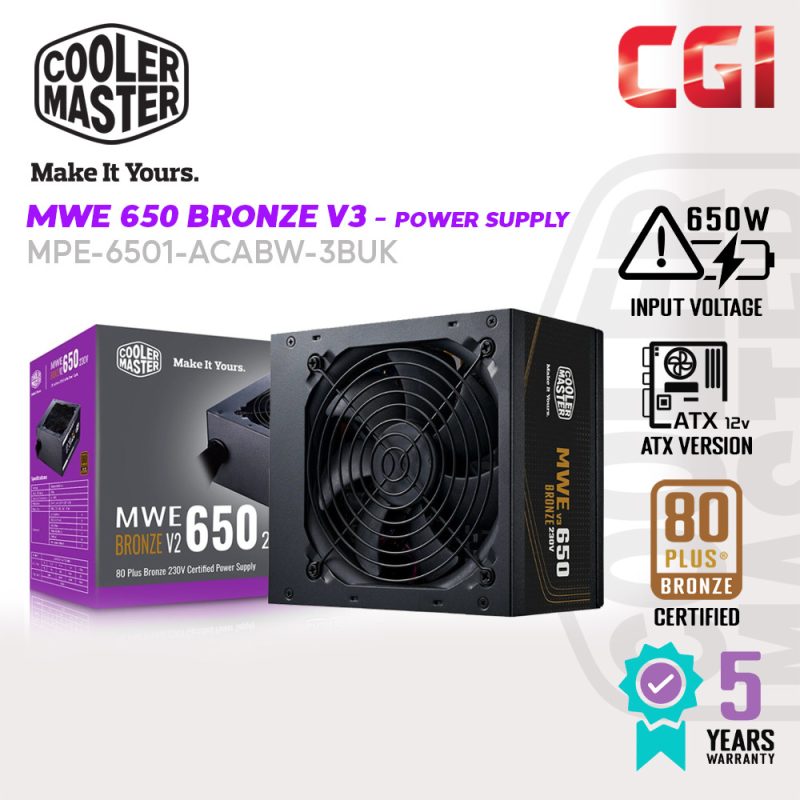

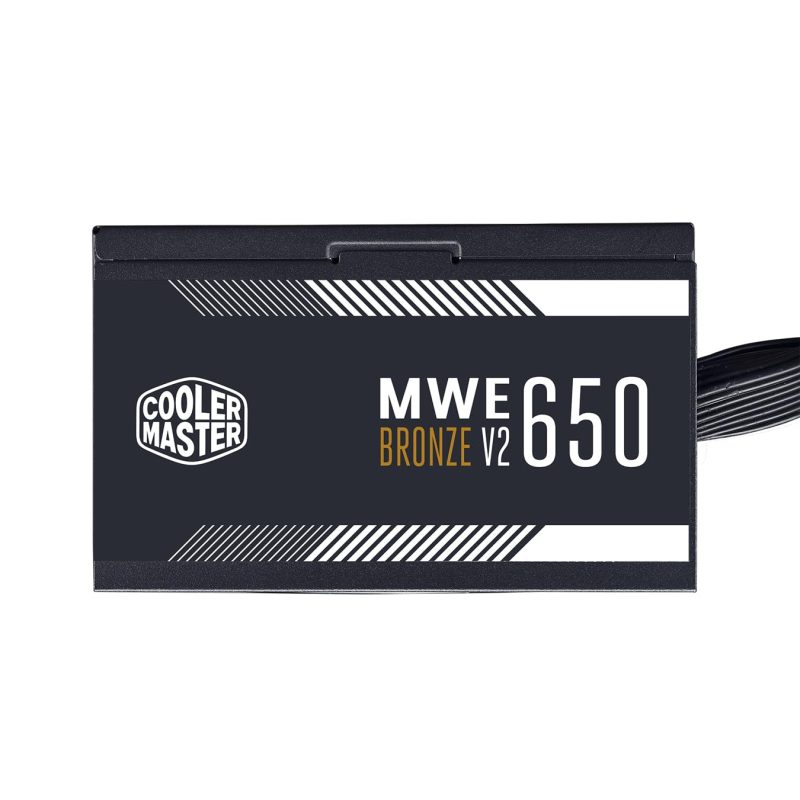

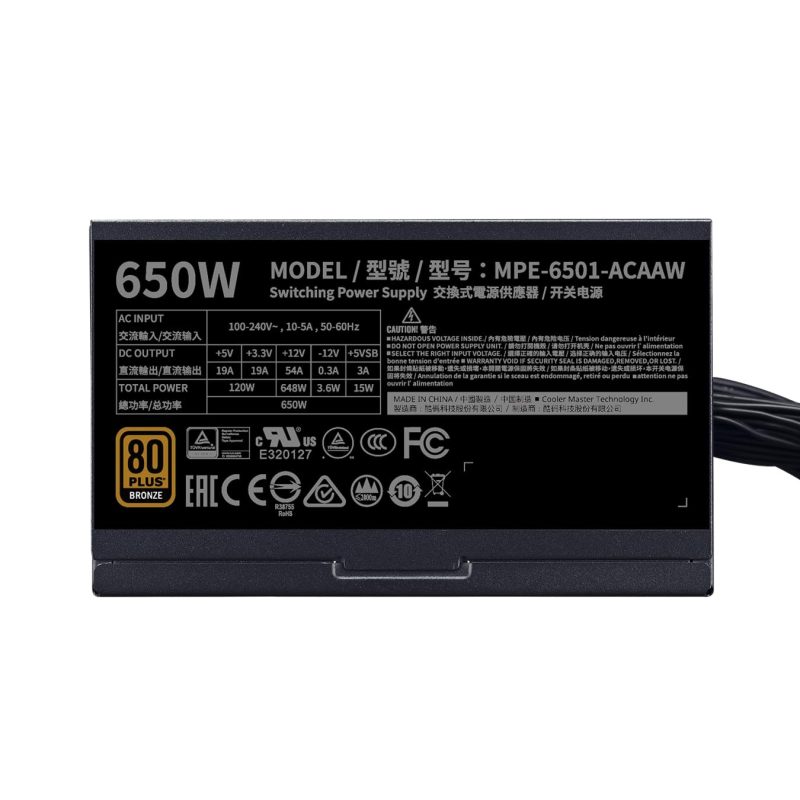

Cooler Master MWE 650 Bronze 80 Plus Certified V3 230V Power Supply PSU – MPE-6501-ACABW-3BUK

ErP 2014 Lot 3Yes

PFCActive PFC

Input Frequency50-60Hz

ATX 24 Pin Connectors1

EPS 4+4 Pin Connectors1

EPS 8 Pin Connector1

Fan Size120mm

Category500 to 750W

Power Good Signal100 – 500 ms

MTBF>100,000 Hours

ModularNon Modular

Fan BearingHDB

80 PlusBronze

PCI-e 6+2 Pin Connectors4

SATA Connectors6

Efficiency88% Typically

80 PLUS Rating80 PLUS Bronze EU 230V

ATX VersionATX 12V V2.52

SeriesMWE Bronze Series

Peripheral 4 Pin Connectors3

ProtectionsOVP

ProtectionsOPP

ProtectionsSCP

Dimensions (L x W x H)140 x 150 x 86 mm

Hold Up Time>14ms at 100% Full Load@230Vac

ProtectionsUVP

ProtectionsOTP

Fan Speed2400 RPM

RegulatoryCCC

Input Current10-5A

Input Voltage200-240Vac

RegulatoryCE

RegulatoryTUV-RH

RegulatoryRCM

Noise Level @ 20%16.54 dBA

RegulatoryEAC

RegulatorycTUVus

RegulatoryFCC

Regulatory – BSMI

Regulatory – KC

Regulatory – CB

Noise Level @ 50%26.5 dBA

Noise Level @ 100%42.5 dBA

Model – MPE-6501-ACABW-B
