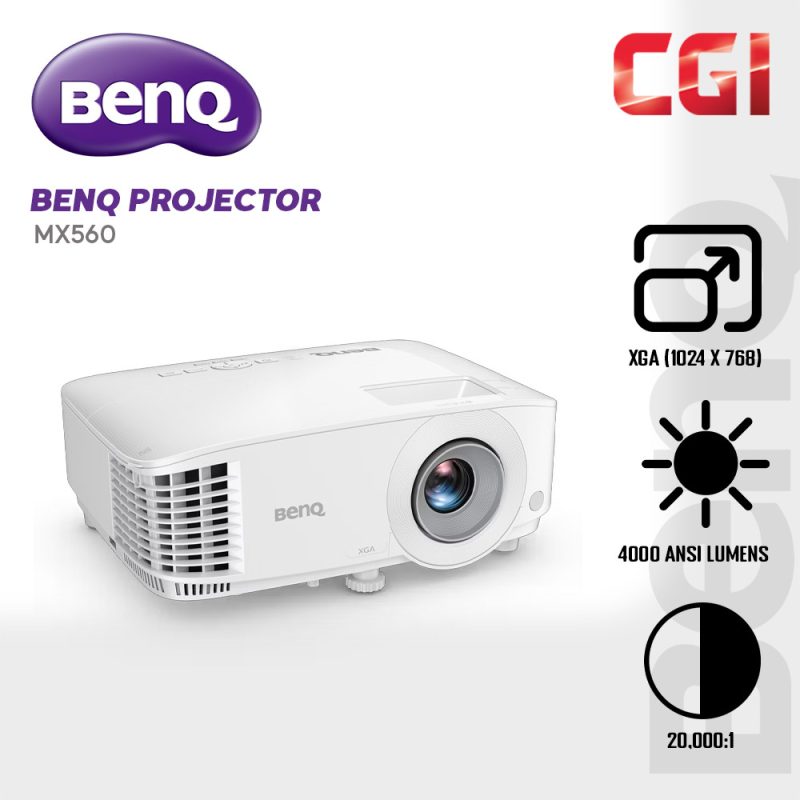

Display
Brightness (ANSI lumens) – 4000
Native Resolution – XGA (1024×768)
Native Aspect Ratio – 4:3
Contrast Ratio (FOFO) – 20000:1
Display Color – 30 Bits (1,07 billion colors)
Light Source – Lamp
Light Source Life – a. Normal 6000 hrs ,b. ECO 10000 hrs ,c. SmartEco 10000 hrs ,d. LampSave 15000 hrs
Optical
Throw Ratio – 1.96~2.15
Zoom Ratio – 1.1x
Lens – F/# = 2.56 ~ 2.68, f = 22 ~ 24.1 mm
Projection Offset (Full-Height) – 110%
Keystone Adjustment – 1D, (Auto) Vertical ± 40 degrees
Picture Modes – 3D ,Bright ,Infographic ,Presentation ,Spreadsheet ,sRGB ,User 1 ,User 2
Compatibility
Resolution Support – VGA(640 x 480) to WUXGA_RB(1920 x 1200) *RB=Reduced blanking

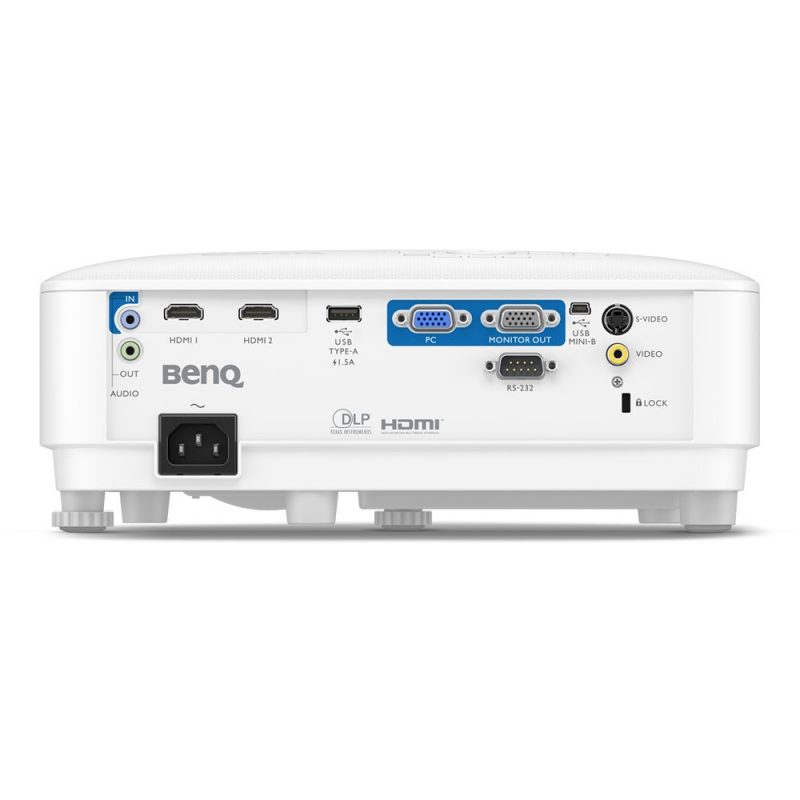

I/O Interface
PC in (D-sub 15pin) – (x1)
Monitor out (D-sub 15pin) – (x1)
Composite Video in (RCA) – (x1)
S-Video in (Mini DIN 4pin) – (x1)
HDMI in – (x2) ,HDMI-1 (1.4a/HDCP1.4) ,HDMI-2 (1.4a/HDCP1.4)
USB Type A – (x1)
USB Type Mini B – (x1)
RS232 in (DB-9pin) – (x1)
Audio
Speaker – (x1) ,10W
Audio in (3.5mm Mini Jack) – 1
Audio out (3.5mm Mini Jack) – 1
Environment
Operating Temperature – 0~40?
Power Supply – AC 100 to 240 V, 50/60 Hz
Typical Power Consumption (110V) – 260W/110V
Acoustic Noise (Typ./Eco.)(dB) – 34/29
Accessories
Carry Bag – Yes,5J.J3T09.001 (optiol)
Remote Control w/ Battery – RCX016
Power Cord (by region) – x1 (1.8M)
VGA(D-sub 15pin) Cable – (Standard) ,1 (1.5m)
Quick Start Guide – 1 (21L)
Warranty Card (by region) – Yes
Dimension & Weight
Dimensions (WxHxD) (mm) – 296 x120 x221
Net Weight (kg) – 2.3
Projection System
Projection System – DLP
