Asus ZenWiFi AX Hybrid (XP4) WiFi 6 1800 Mbps Instant Guard AiProtection Pro Dual Band Mesh WiFi System Router

Network Standard

IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6
HomePlug AV2 MIMO
IEEE 1901
IEEE 1905.1
IEEE 802.3ab
IEEE 802.3z

Product Segment

AX1800 ultimate AX performance : 1201 Mbps+ 574 Mbps
AV1300 HomePlug AV2 MIMO : 1300 Mbps

AX technology

Yes

Data Rate

802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 4 (802.11n) : up to 300 Mbps
WiFi 4 (802.11n) TurboQAM : up to 400 Mbps
———————————–
WiFi 5 (802.11ac) : up to 867 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
WiFi 6 (802.11ax) (5GHz) : up to 1201 Mbps

Antenna

Internal antenna x 4

Processor

64bit 1.2 GHz quad-core processor

Memory

256 MB Flash
512 MB RAM

Boosts speed

OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80 MHz bandwidth

Operating Frequency

2.4G Hz / 5 GHz

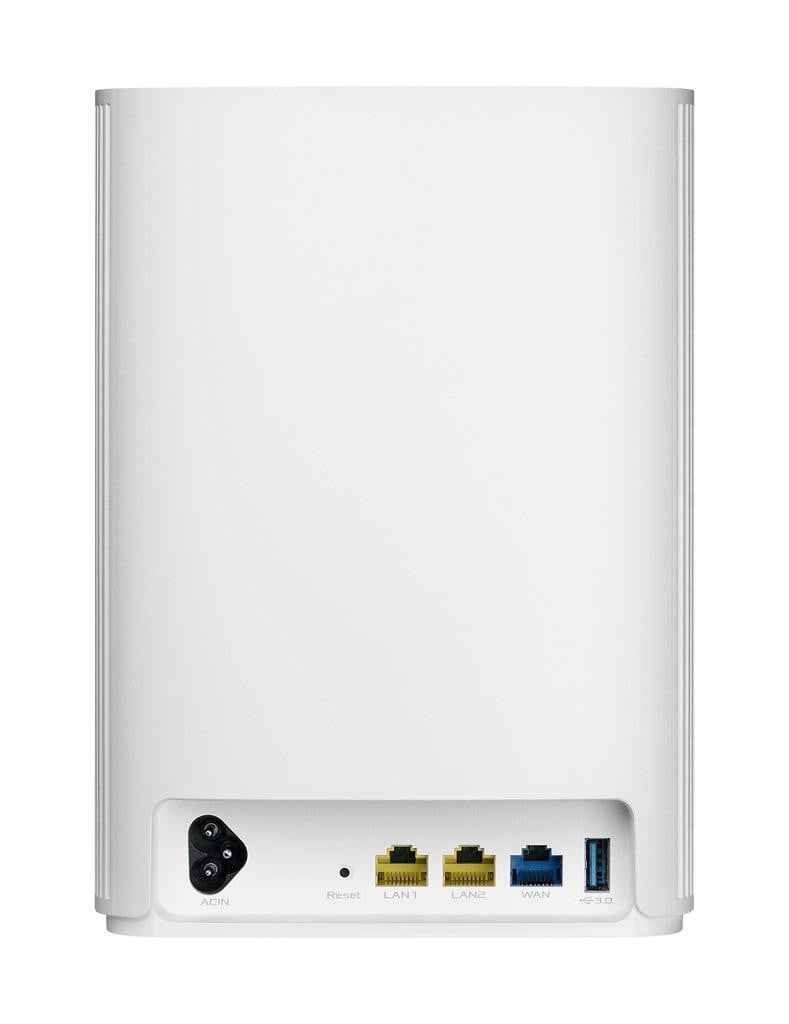

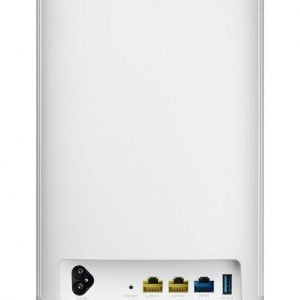

Ports

RJ45 for Gigabit BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 2
USB 3.2 Gen 1 x 1
AC Power Jack with PLC x 1

Button

WPS/PLC Combo Button, Reset Button

LED Indicator

Power & Status Combo LED x 1

Power Supply

AC Input : 110V~240V(50~60Hz)

Package content

?Router (XP4)
?RJ45 Ethernet cable
?Power core
?Quick start guide
?Warranty Card

Remark

Content may vary in different regions and packages.

AiMesh

AiMesh : Yes
Primary AiMesh router : Yes
AiMesh node : Yes

Router APP

ASUS Router APP : Yes

Game

Game Boost/acceleration : No
WTFast : No

Alexa

Support Alexa skill : Yes

IFTTT

Support IFTTT : No

AiProtection

AiProtection : AiProtection Pro
Router Security Assessment : Yes
Malicious site blocking : Yes
Two-Way IPS : Yes
Infected Device Prevention and Blocking : Yes

Parental Control

Parental Control : Yes
Parental Control Customized Internet schedule : Yes
Maximum Parental Control profile : Max 16 rules
Maximum Parental Control content filter rule : Max 16 rules

Traffic Control

Adaptive QoS : Yes
Bandwidth Monitor : Yes
Bandwidth limiter : Yes
Maximum Bandwidth limiter rule : Max 32 rules
Traditional QoS : Yes
Maximum Traditional QoS rule : Max 32 rules
Traffic Monitor : Yes
Real-time traffic monitor : Yes
Wired Traffic Monitor : Yes
Wireless Traffic Monitor : Yes
Traffic Analyzer : Yes
Website history : Yes

Wireless

IPv6 : Yes
MU-MIMO : Yes
Wi-Fi Encryption : WPA3-Personal, WPA/WPA2-Personal, WPA/WPA2-Enterprise, WPS support
UTF-8 SSID : Yes
Guest Network : Yes
Maximum Guest Network rule : Max 6 rules
Guest Network Connection time limit : Yes
Guest Network Encryption : Max 6 rules
WPS : Yes
Wi-Fi MAC address filter : Yes
Maximum MAC filters : Max 64 rules
Wireless scheduler : Yes
Airtime fairness : Yes
RADIUS Server : Yes
Universal beamforming : Yes
Explicit beamforming : Yes

WAN

Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
Dual WAN : Yes
WAN Aggregation : No
3G/4G LTE dongle : Yes
Android tethering : Yes
Port forwarding : Yes
Port triggering : Yes
DMZ : Yes
DDNS : Yes
NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough
Let's Encrypt : Yes

LAN

DHCP Server : Yes
IGMP snooping : Yes
IPTV : Yes
LAN Link Aggregation : No
Manually assign IP address : Yes
Maximum manually assign IP address rule : Max 64 rules

VPN

VPN Client L2PT : Yes
VPN Client OVPN : Yes
VPN Client PPTP : Yes
VPN Server IPSec : Yes
VPN Server OVPN : Yes
VPN Server PPTP : Yes
VPN Fusion : No
Instant Guard :Yes

USB application

File System : FS_Tuxera_HFS+, FS_Tuxera_NTFS, FS_Tuxera_vFAT, FS_ext2, FS_ext3, FS_ext4
HDD hibernation : Yes
Safely Remove disk : Yes
AiCloud : Yes
Download master : Yes
AiDisk : Yes
Media Server : Yes
Time Machine : Yes
Samba Server : Yes
FTP Server : Yes
Shared Folder privileges : Yes

Administration

Operating mode : Wireless router mode,Range extender mode,Access point mode,Media bridge mode
Free OS upgrade : Yes
Firewall : Yes
Maximum Firewall keyword filter : Max 64 rules
Maximum Firewall network service filter : Max 32 rules
Maximum Firewall URL filter : Max 64 rules
Wake on LAN (WOL) : Yes
SSH : Yes
Configuration backup and restore : Yes
Diagnosis tools : Yes
Feedback system : Yes
System log : Yes
